Disassembly And Assembly: Notes

WARNING: Do not move the tilt lever from the lock position until the installation is completed. If you move it accidentally, the steering column cannot be reinstalled correctly.
CAUTION: When the ignition key cylinder is replaced, register the encrypted code. Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE .

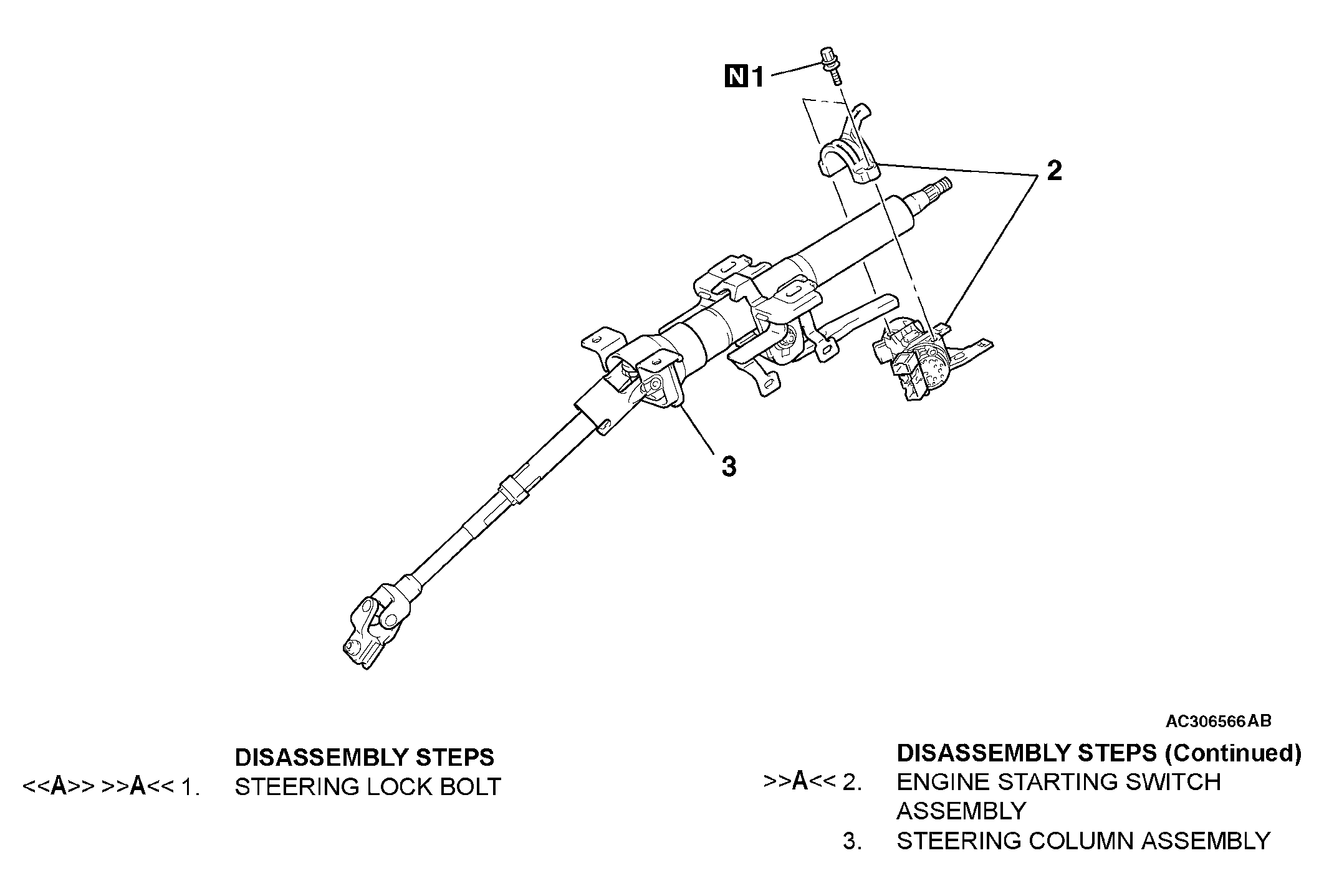

Fig 1: Disassembling/Assembling Steering Column Assembly
G04237394Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
