Powertrain Management: Locations

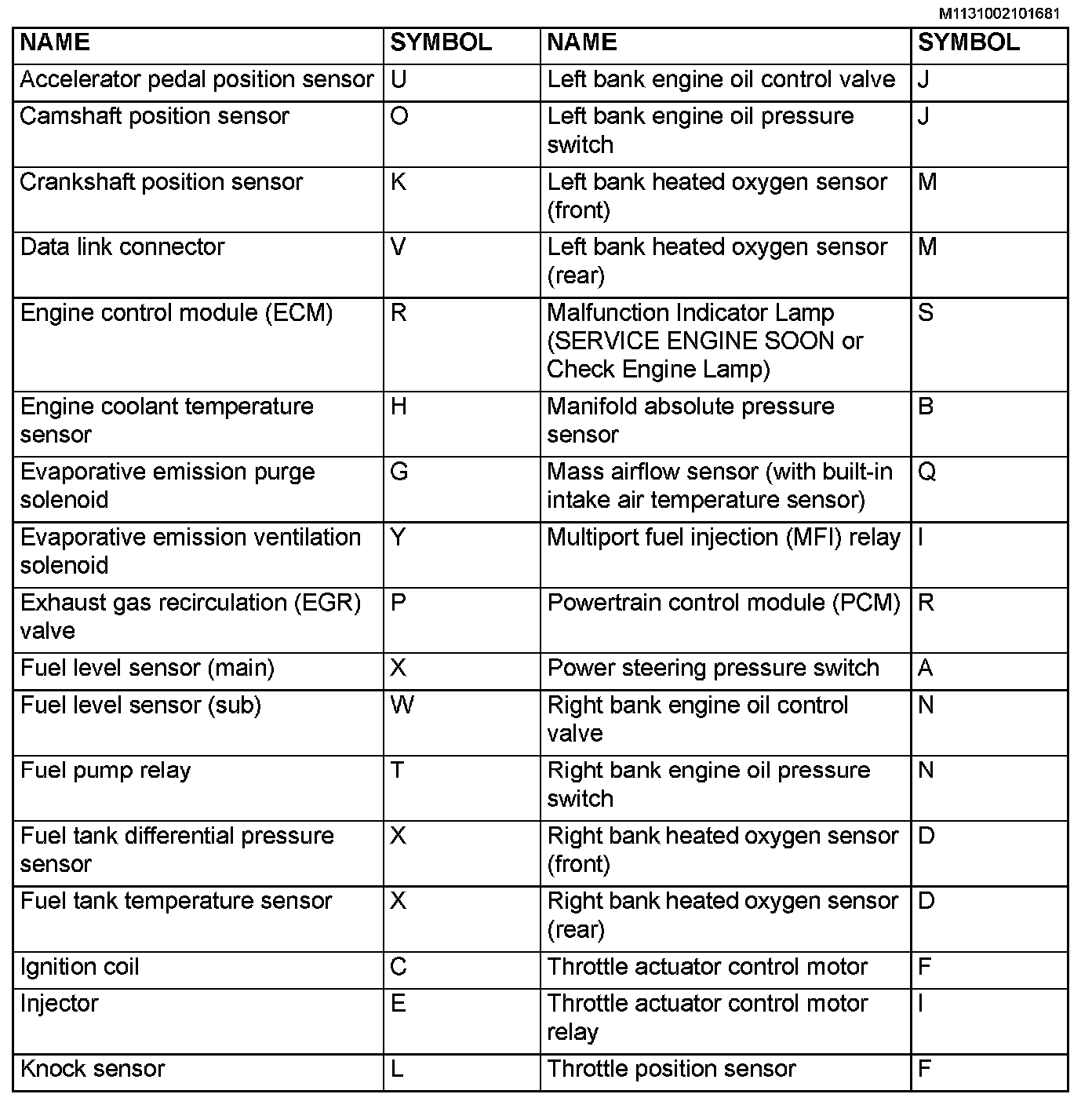

Component Location:

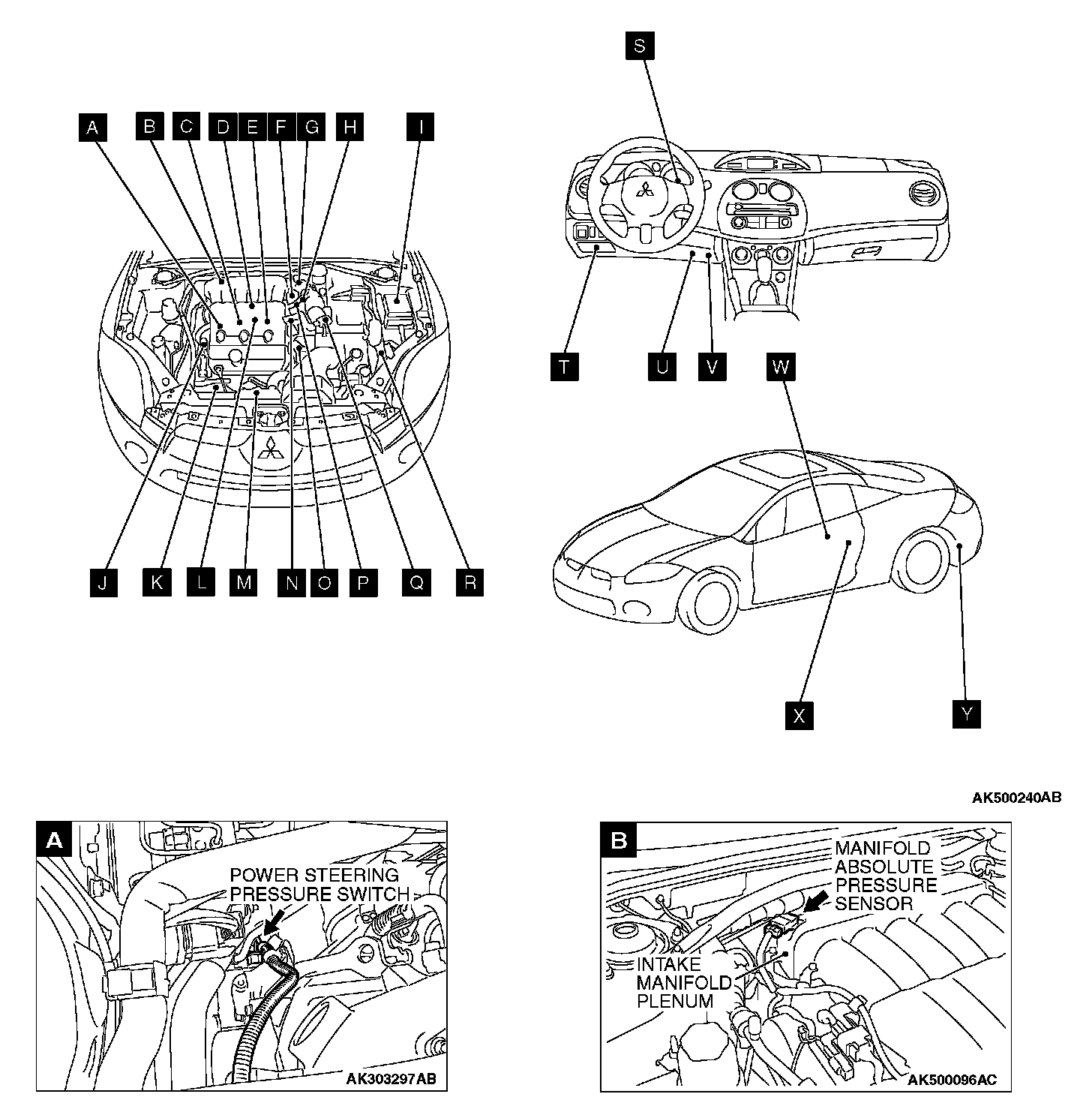

Overall View:

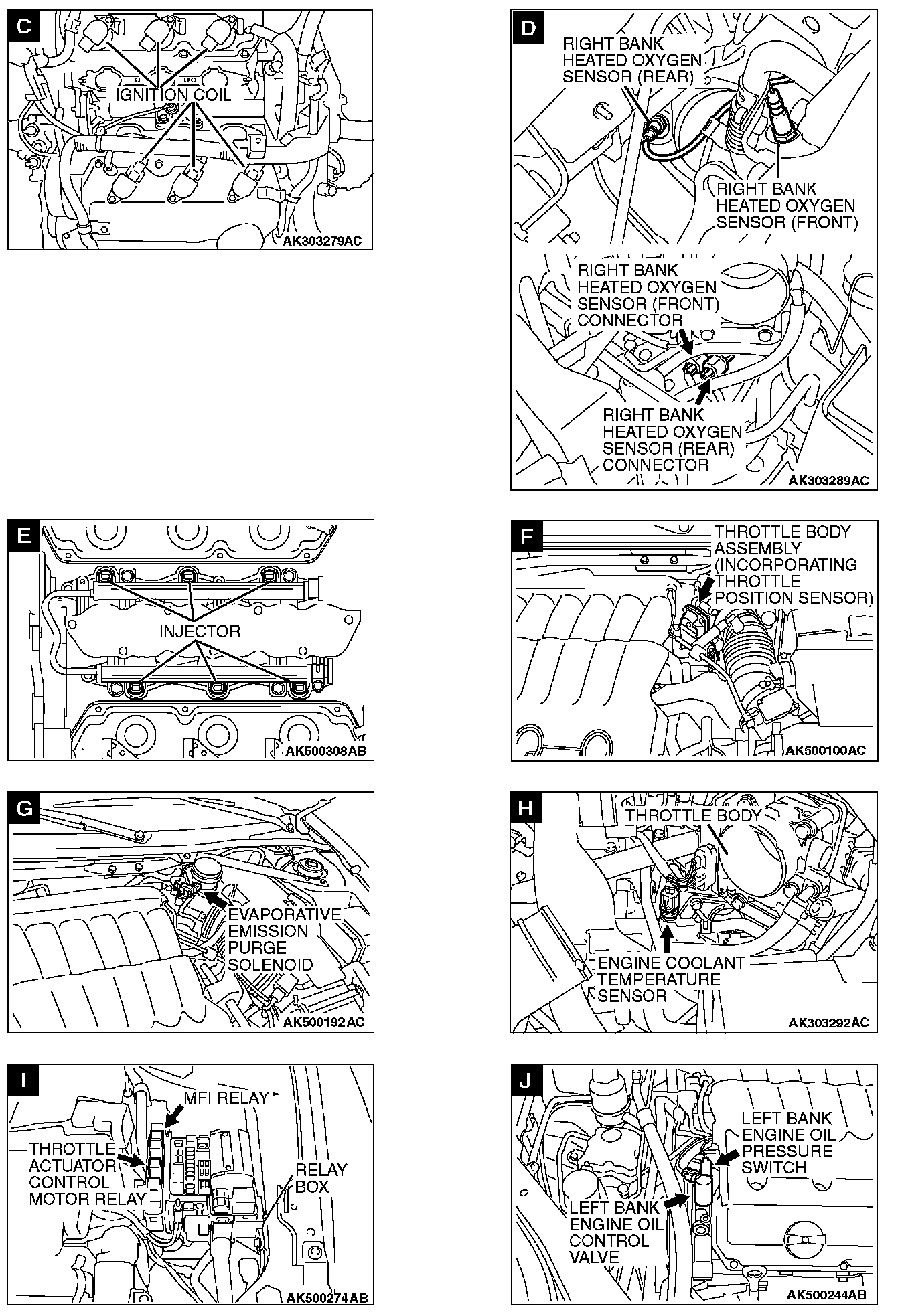

View C-J:

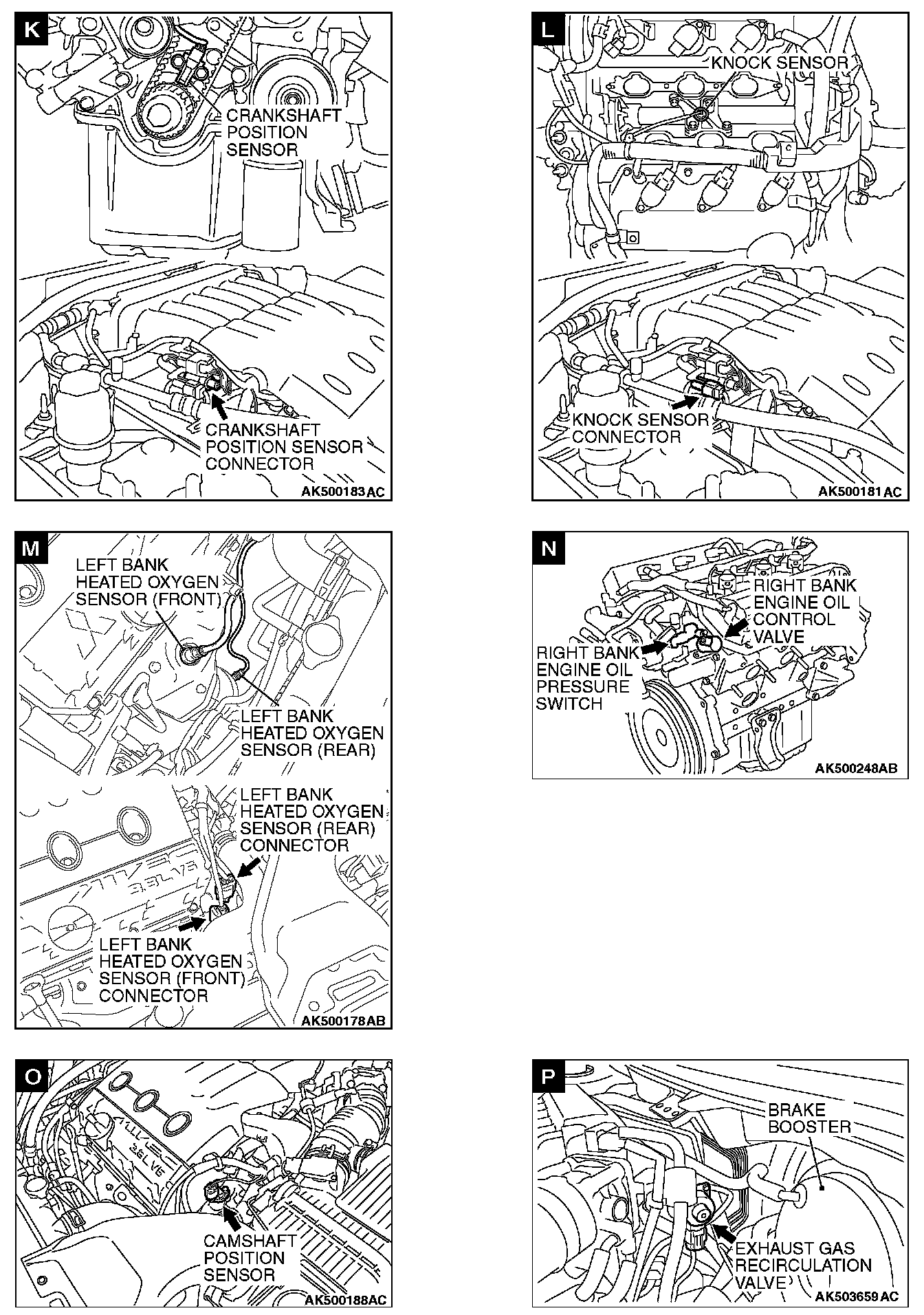

View K-P:

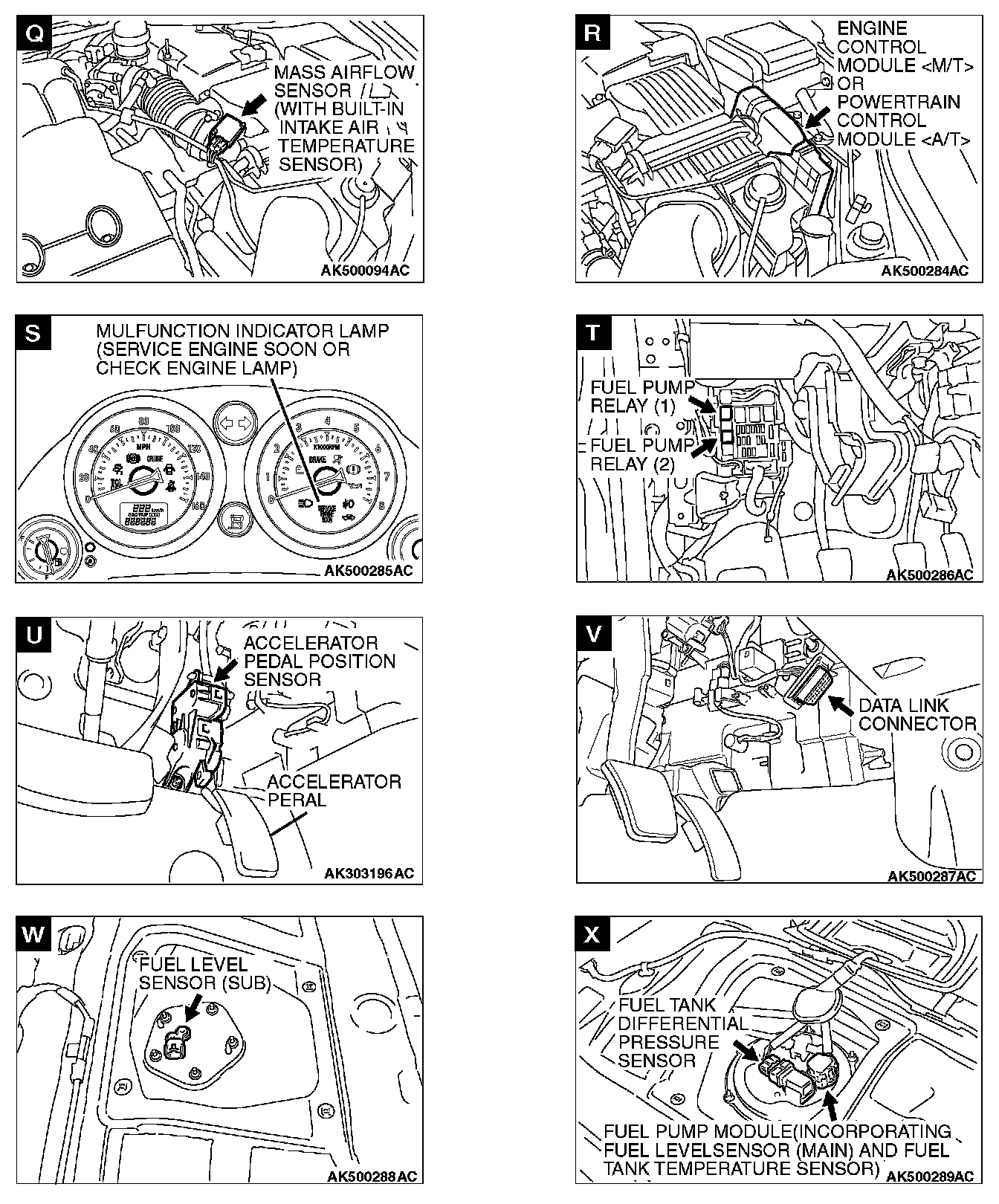

View Q-X:



View Y:
