Data List Reference Table

DATA LIST REFERENCE TABLE

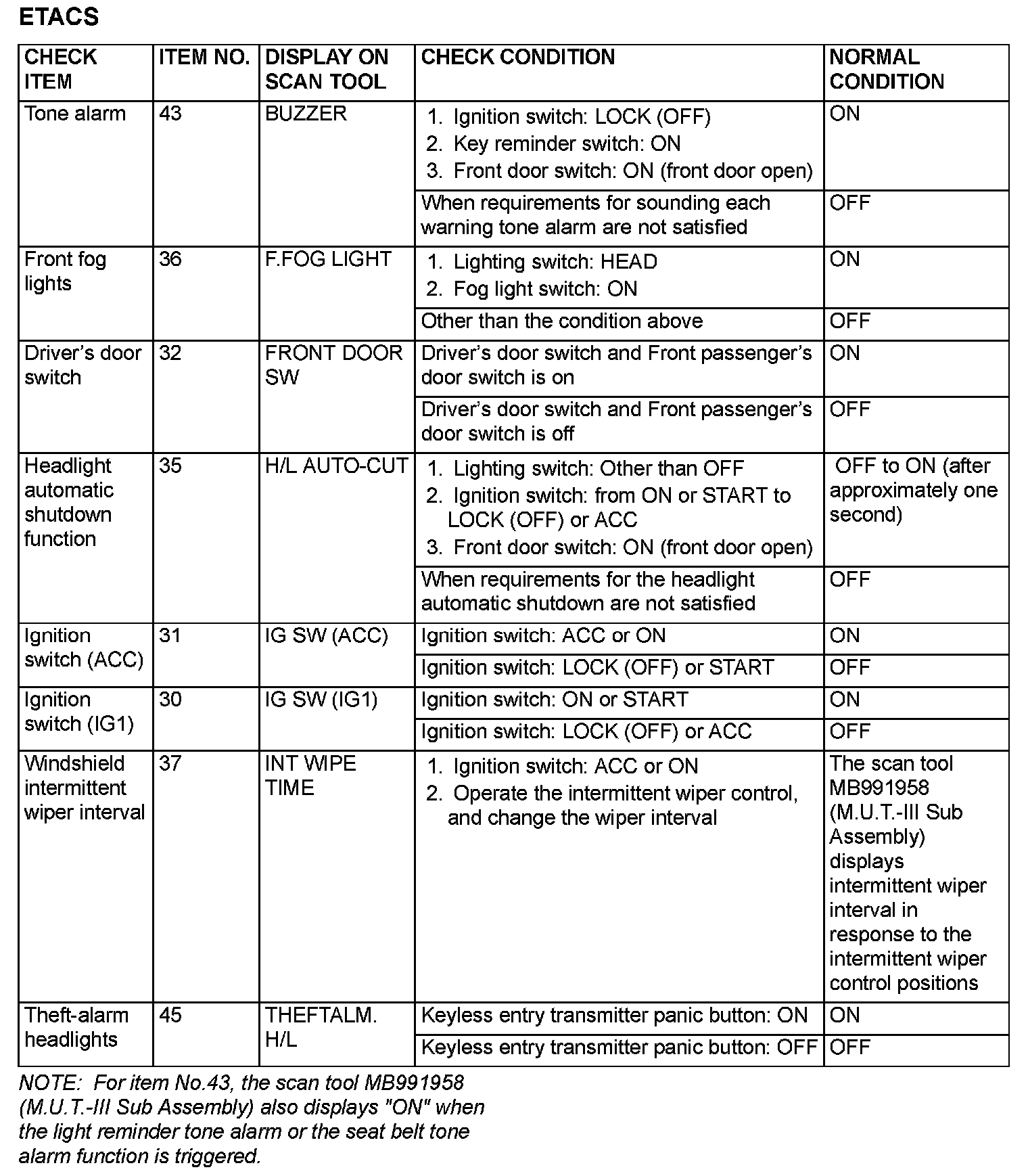

Data List Reference Table Part 1:

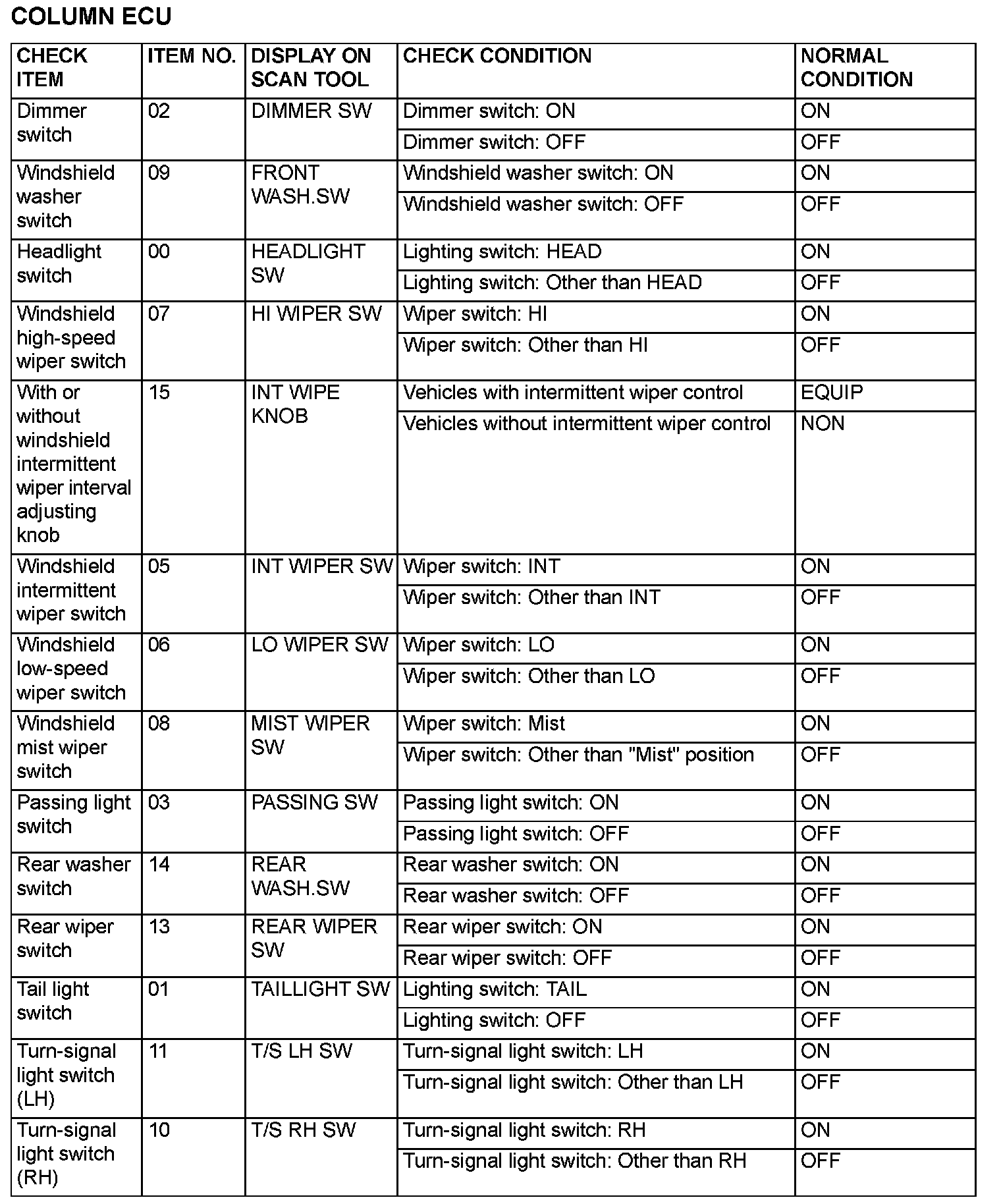

Data List Reference Table Part 2:

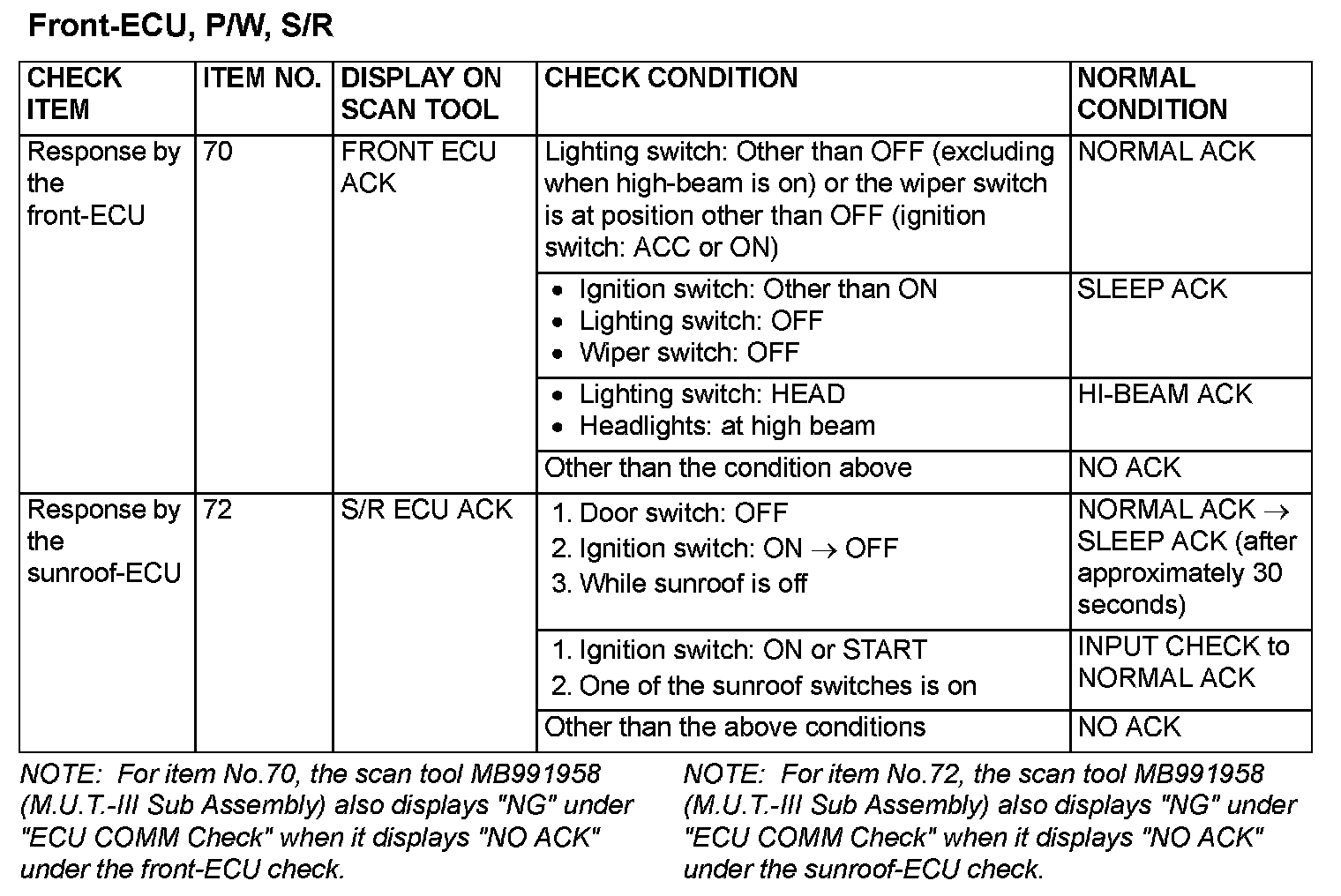

Data List Reference Table Part 3:




The table shows the service data and their normal condition, which are displayed during the "Data List."
