Input Signal Chart

INPUT SIGNAL CHART

Input Signal Chart (SWS Monitor):




SWS MONITOR

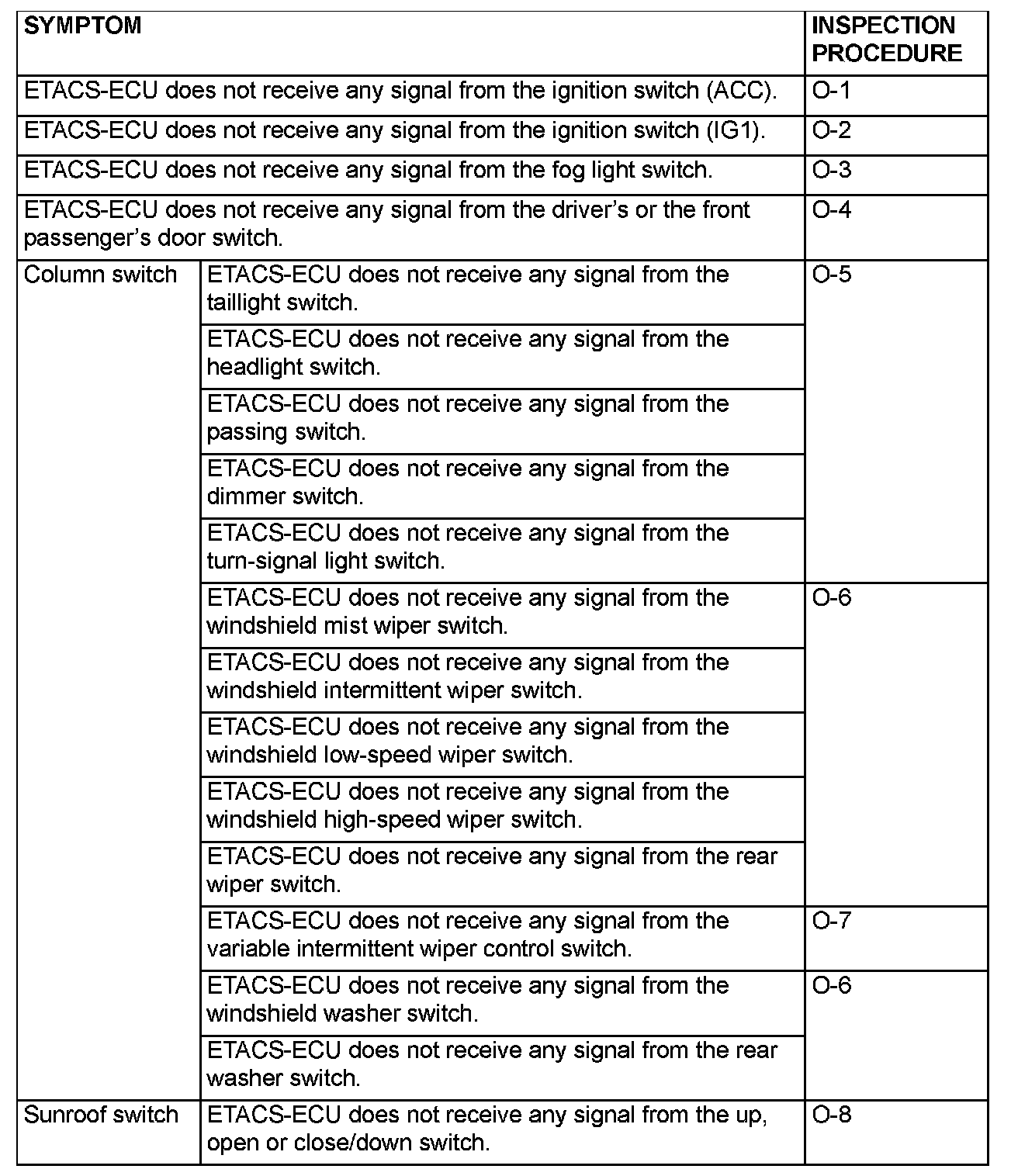

If a problem is found in the Data List inspection, observe the table given.

Input Signal Chart (Scan Tool Or Voltmeter):




SCAN TOOL OR VOLTMETER

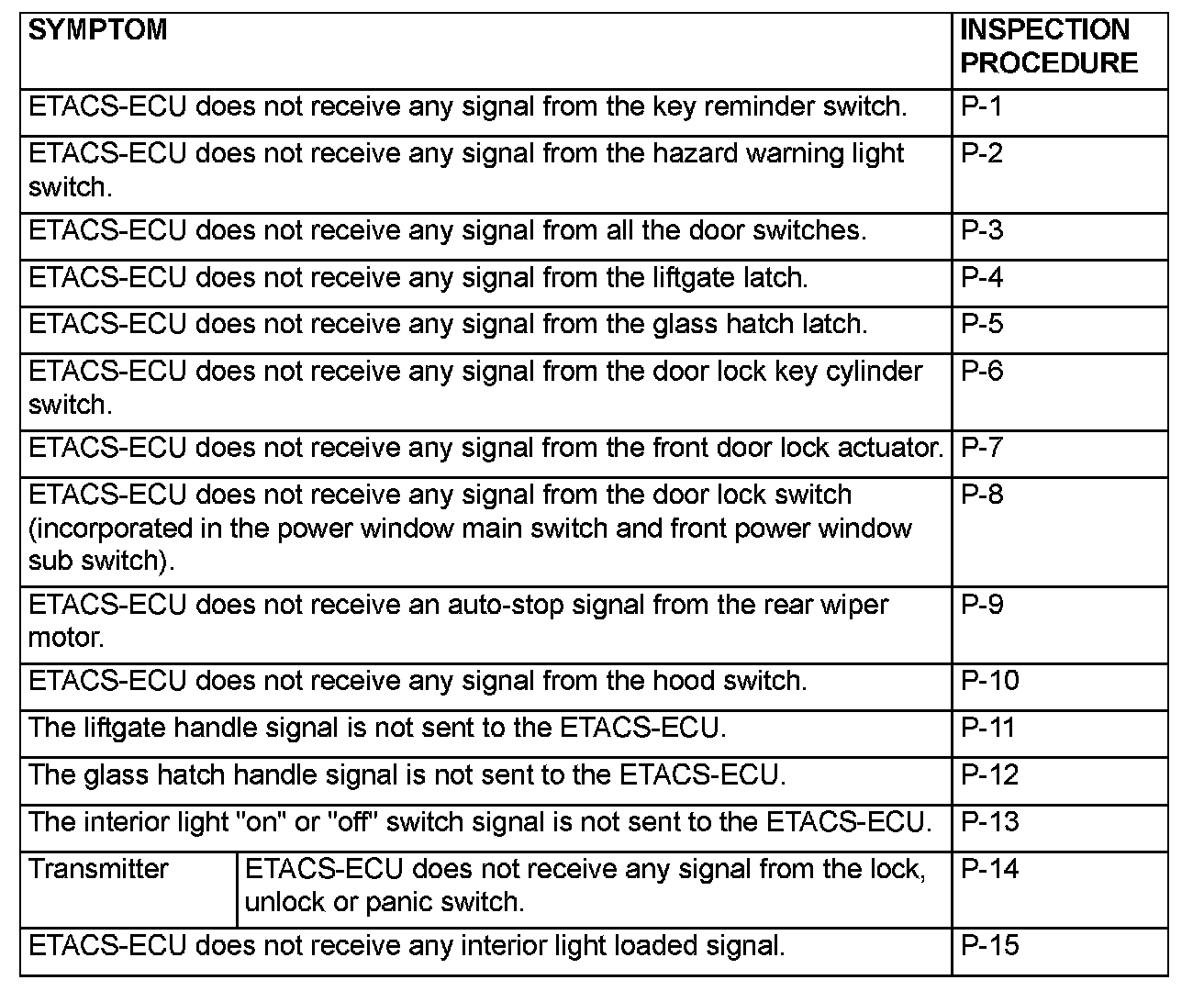

If a problem is found in the Pulse Check, observe the table.
