Special Tool

SPECIAL TOOL SPECIFICATION

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III Sub Assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for DaimlerChrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.	For registration of secret code CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

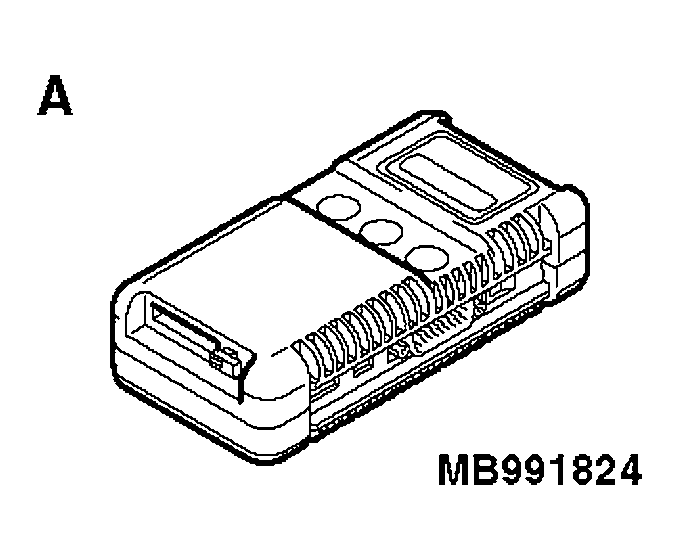

MB991824

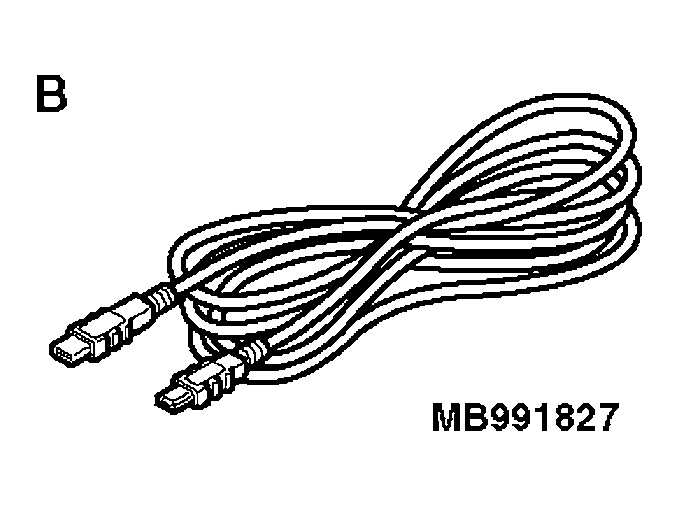

MB991827

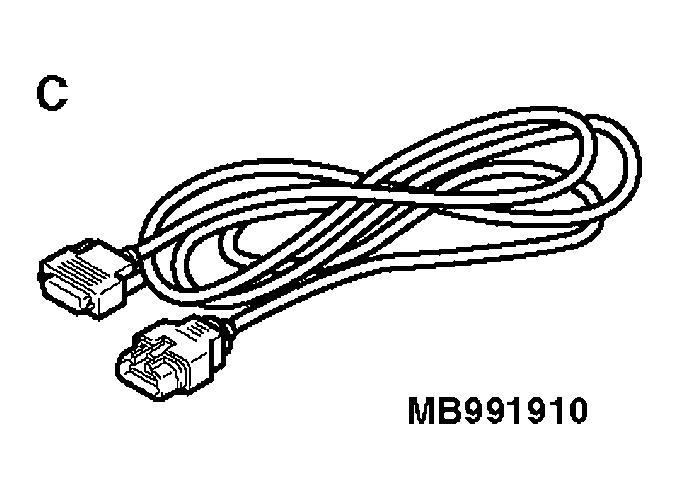

MB991910

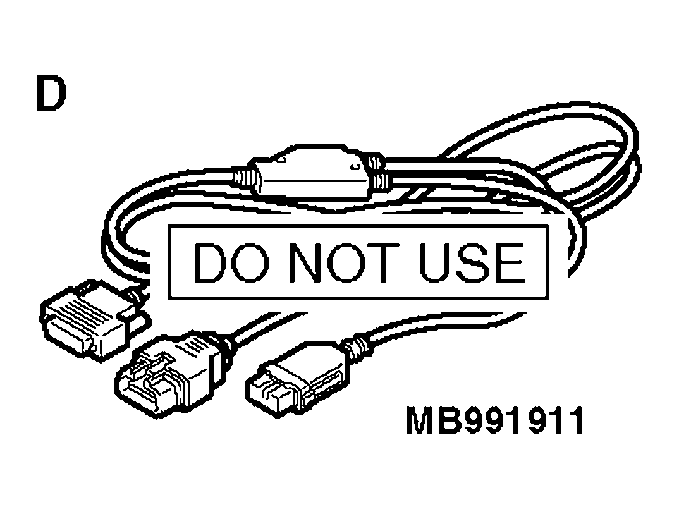

MB991911

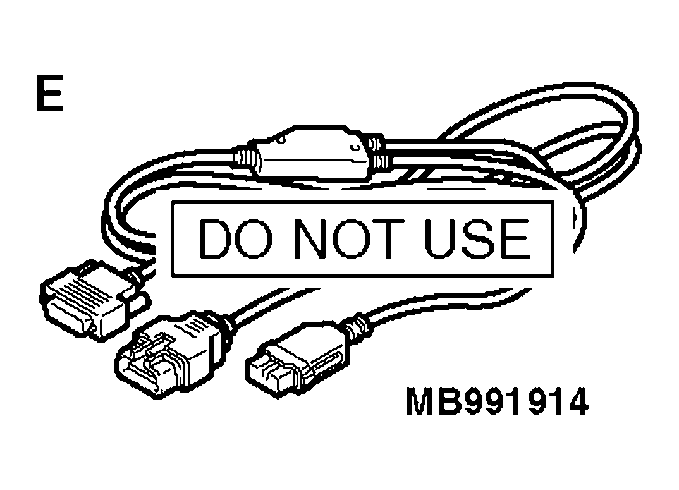

MB991914

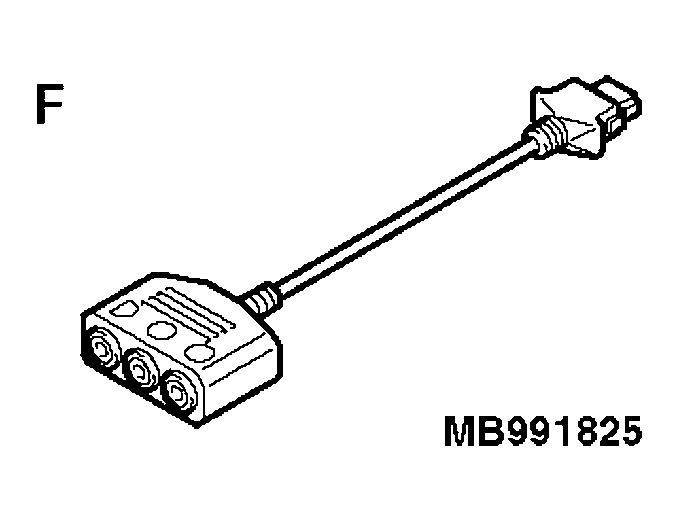

MB991825

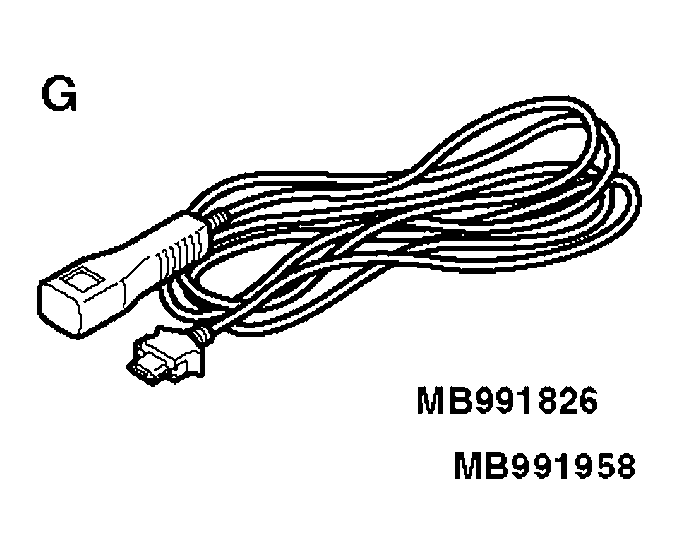

MB991826

M.U.T.-III Sub Assembly

Vehicle communication interface (V.C.I.)
M.U.T.-III USB cable
M.U.T.-III main harness A (Vehicles with CAN communication system)
M.U.T.-III main harness B (Vehicles without CAN communication system)
M.U.T.-III main harness C (for DaimlerChrysler models only)
M.U.T.-III measurement adapter
M.U.T.-III trigger harness

MB991824-KIT

NOTE: G: MB991826 M.U.T.-III trigger harness is not necessary when pushing V.C.I. ENTER key.

For registration of secret code

CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
