Pressing The Transmitter Unlock Switch Twice

When the transmitter unlock switch is pressed twice, the ETACS-ECU energizes its door unlock relay to operate the driver's door lock actuator and the other door lock actuators for 0.25 seconds each in succession. All the doors will be unlocked.

NOTE: If the timed locking function is available, the doors will be locked in 30 seconds after the initial unlocking. Therefore, the second door unlocking should be done within 30 seconds after that initial unlocking.

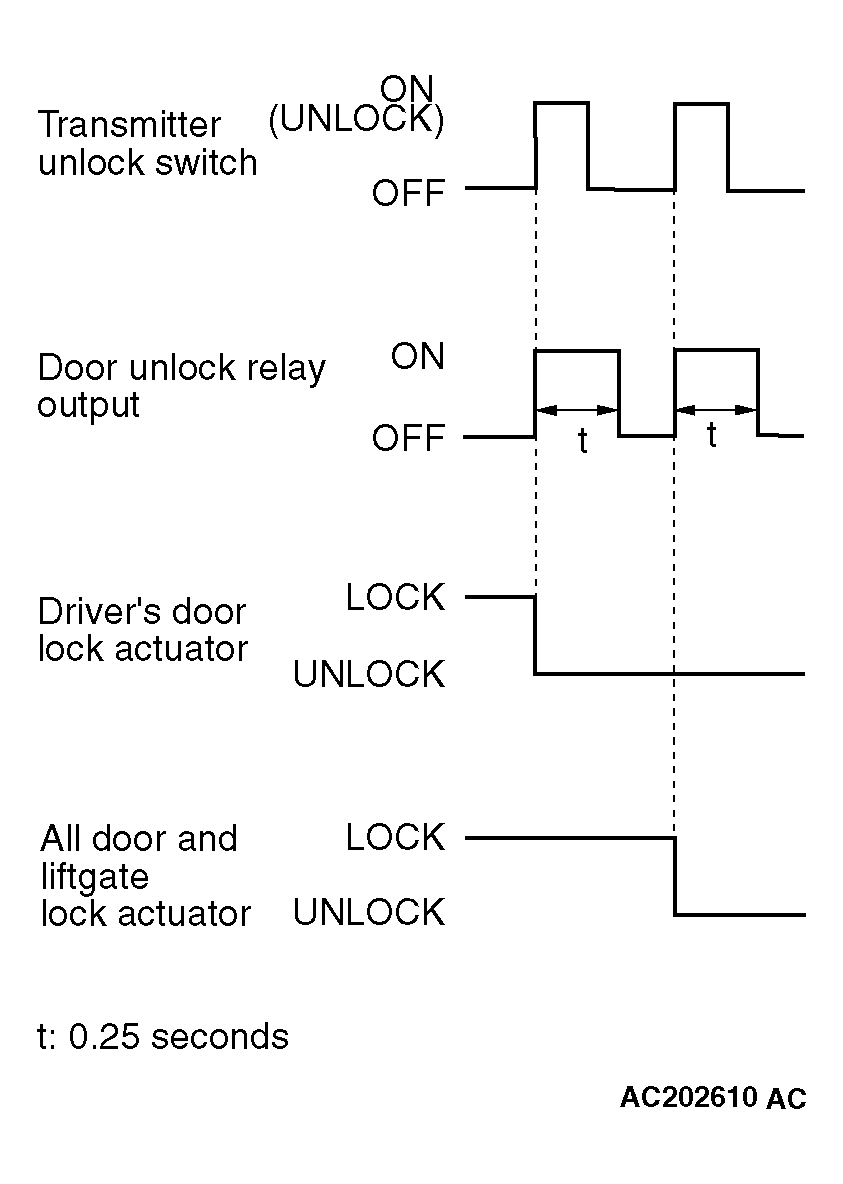

Fig 1: All Door Unlock Function Chart
G04290255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
