Special Tool

SPECIAL TOOL CHART

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
G04310608G04310609G04310610G04310611G04310612G04310613G04310614
 MB991958
Scan tool (M.U.T.-III sub assembly)

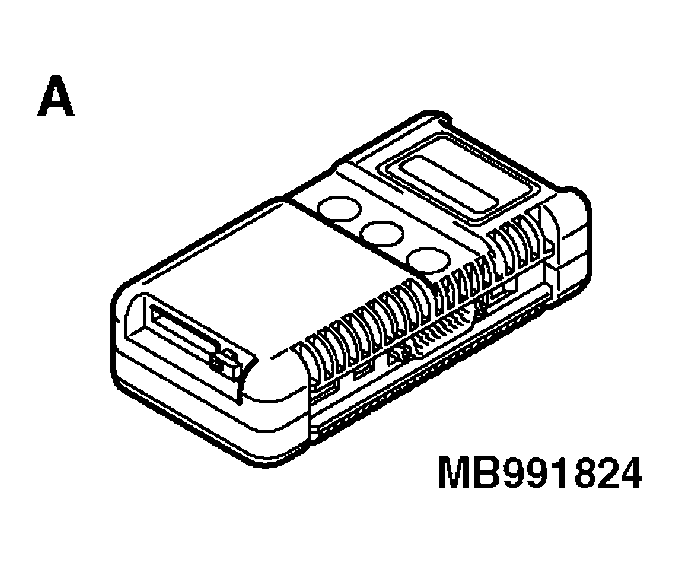

  1. MB991824 Vehicle communication interface (V.C.I).

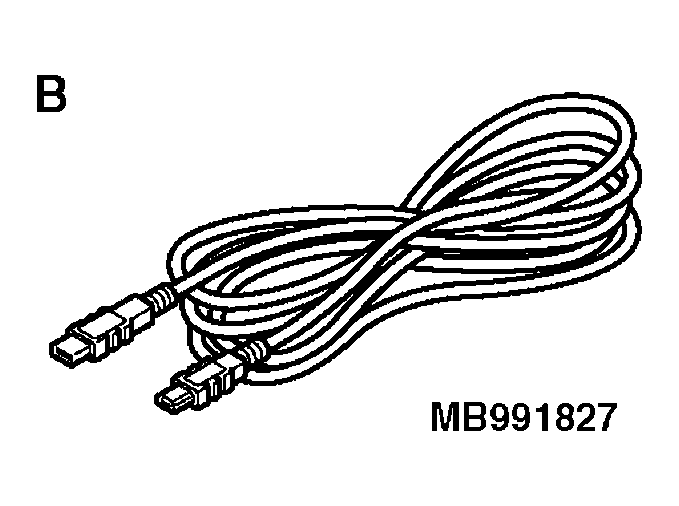

  2. MB991827 M.U.T.-III USB cable

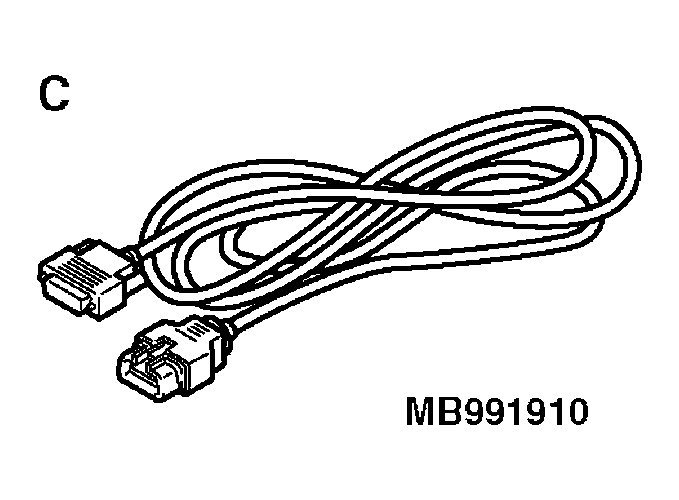

  3. MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)

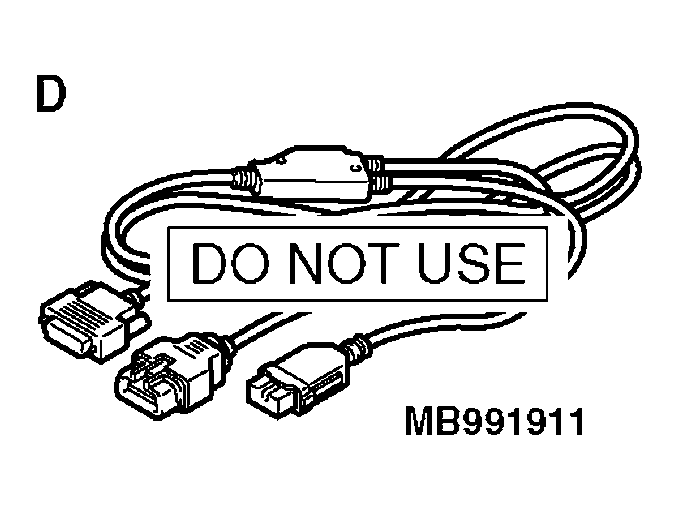

  4. MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)

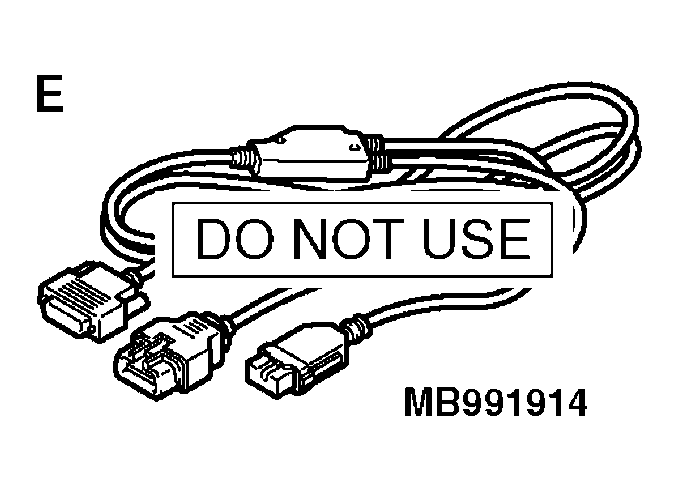

  5. MB991914 M.U.T.-III main harness C (for DaimlerChrysler models only)

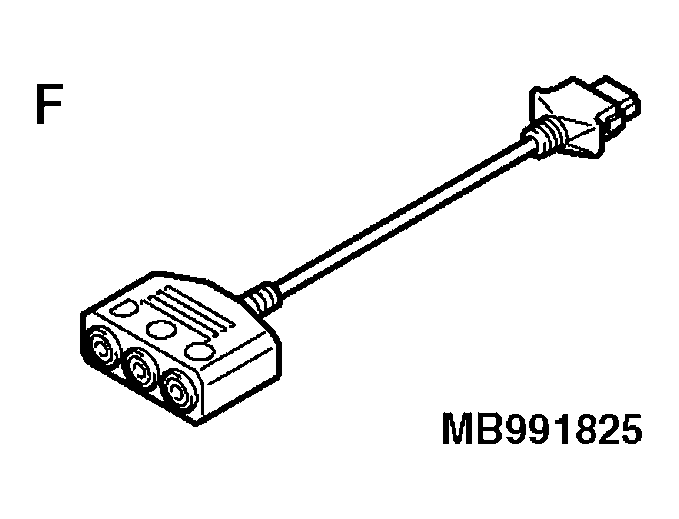

  6. MB991825 M.U.T.-III measurement adapter

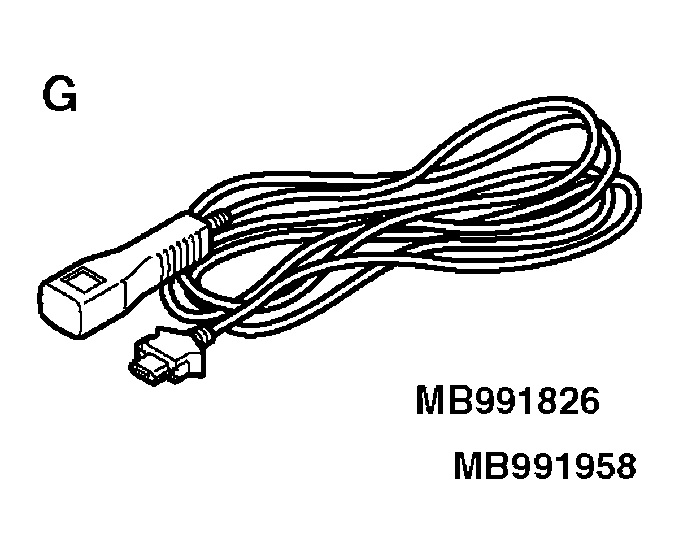

  7. MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking of engine speed
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G04310615
 MB991519

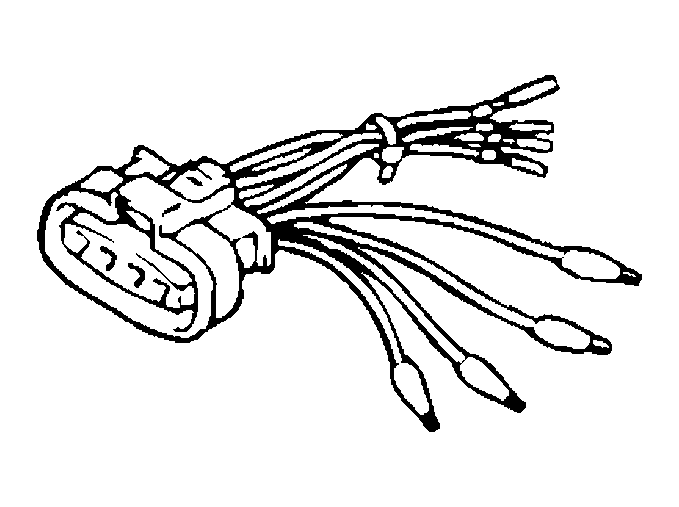

Generator harness connector		 MIT530
Micrd 530 charging system tester.		 Checking of generator ("S" terminal voltage)
