Disassembly And Assembly: Notes

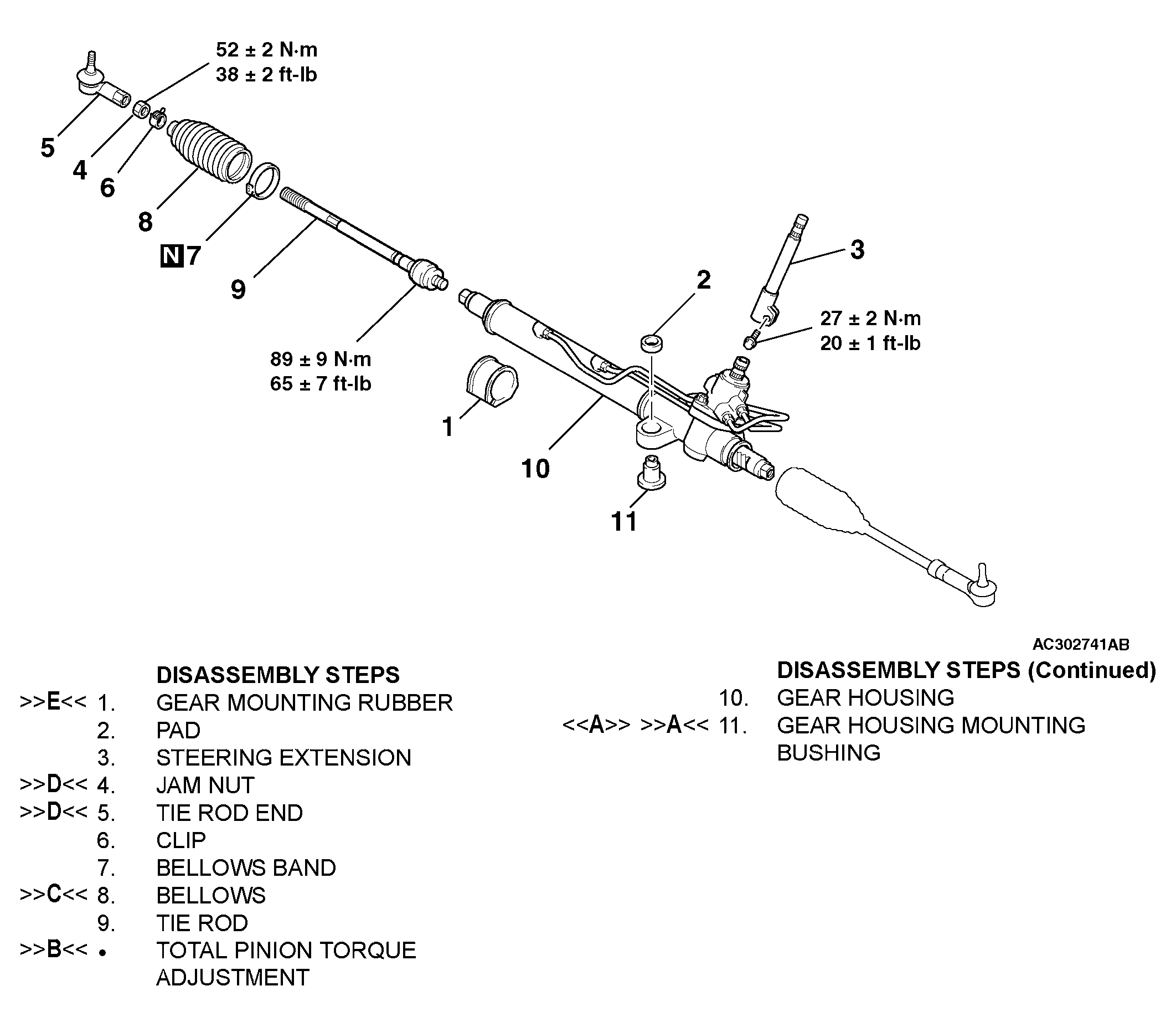

Fig 1: Disassembling/Assembling Power Steering Gear Box And Linkage With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991006: Preload Socket
• MD998812: Installer Cap
• MD998813: Installer 100
• MD998822: Installer Adapter
• MD998368: Bearing Installer
• MD999569: Camshaft Oil Seal Installer
• MB990996: Lower Arm Bushing Arbor
