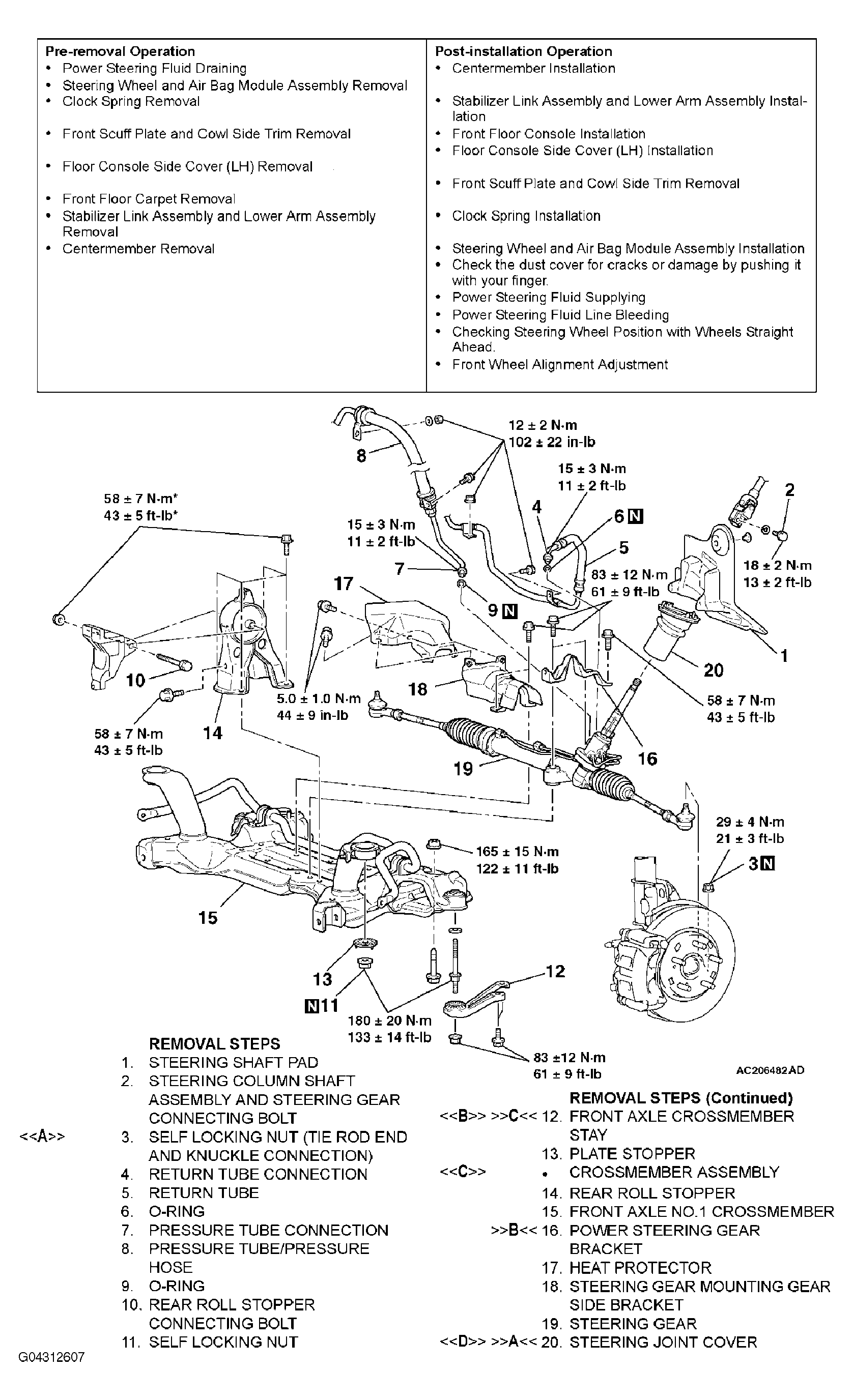

Removal And Installation: Notes
WARNING:
Before removing the steering gear, refer to
SERVICE PRECAUTIONS
and AIR BAG MODULE AND CLOCK SPRING
). Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
Required Special Tool:
- MB991897: Ball Joint Remover
