Special Tools
SPECIAL TOOLS SPECIFICATION
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

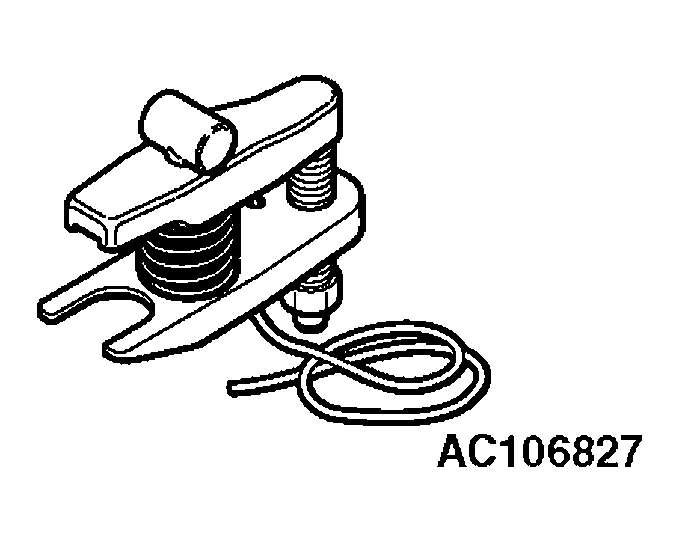

| MB991897 Ball joint remover |
MB991113-01, MB990635-01 or General service tool | Knuckle and tie rod end ball joint disconnection
NOTE:
Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.
|
|

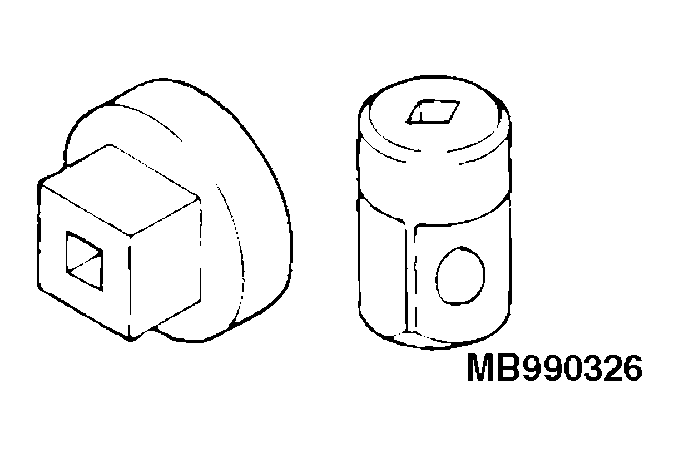

| MB990326 Preload socket |
General service tool | Tie rod end ball joint breakaway torque check | |

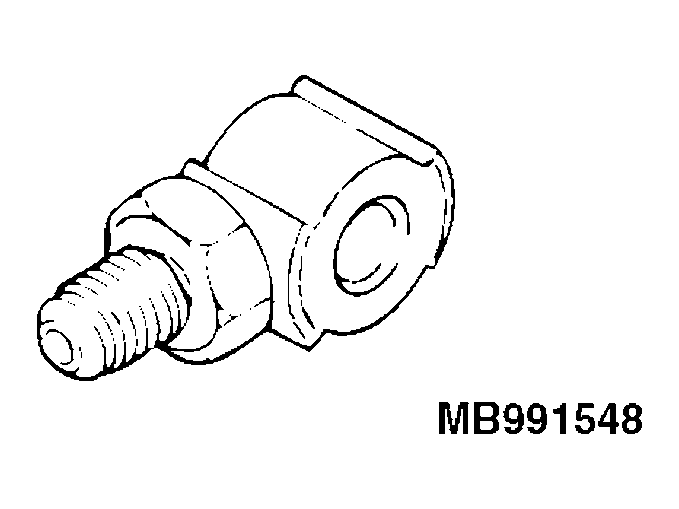

| MB991548 Power steering oil pressure gauge adapter (Pump side) |
MB991548-01 | Oil pump pressure test | |

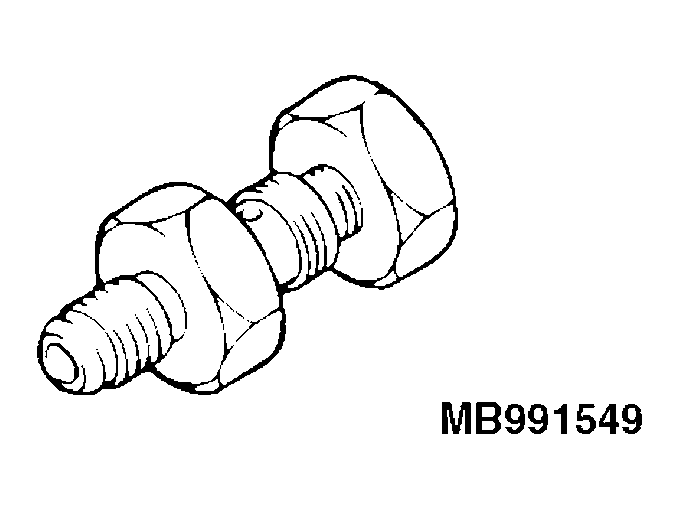

| MB991549 Power steering oil pressure gauge adapter (Hose side) |
MB991549-01 | ||
| MB990662 Power steering oil pressure gauge |
MB990662-01 | ||

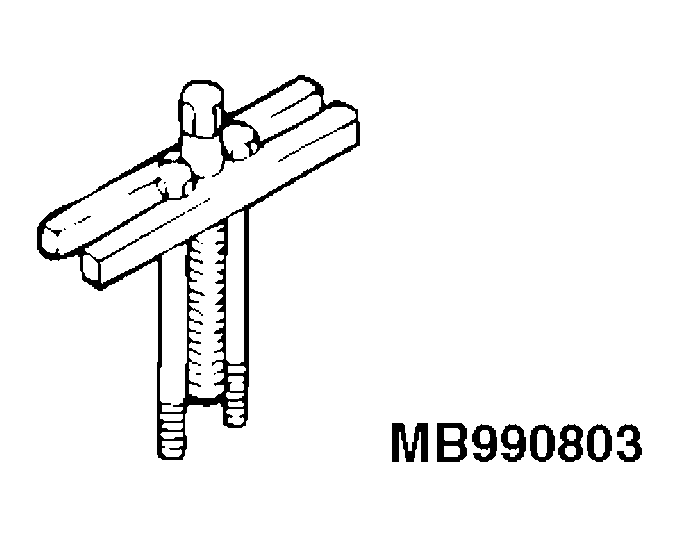

| MB990803 Steering wheel puller |
- | Steering wheel removal | |

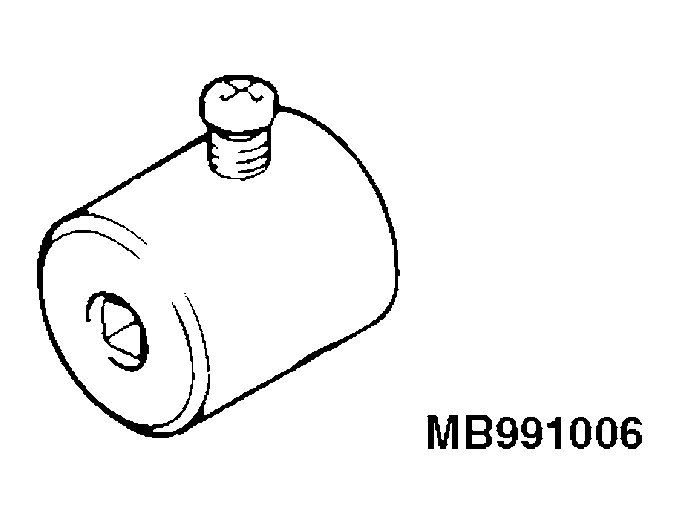

| MB990228 or MB991006 Preload socket |
MB990228-01 | Steering gear total pinion torque check | |
| MD998812 Installer cap |
- | Gear housing mounting bushing removal | |
| MD998813 Installer 100 |
- | ||
| MD998822 Installer adapter |
- | ||
| MD998368 Bearing installer |
- | ||
| MD999569 Camshaft oil seal installer |
- | Gear housing mounting bushing installation | |

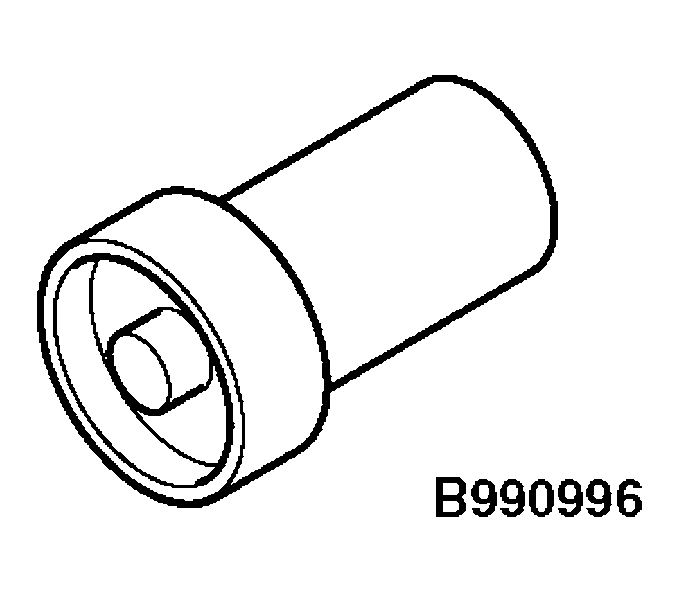

| MB990996 Lower arm bushing arbor |
- |
