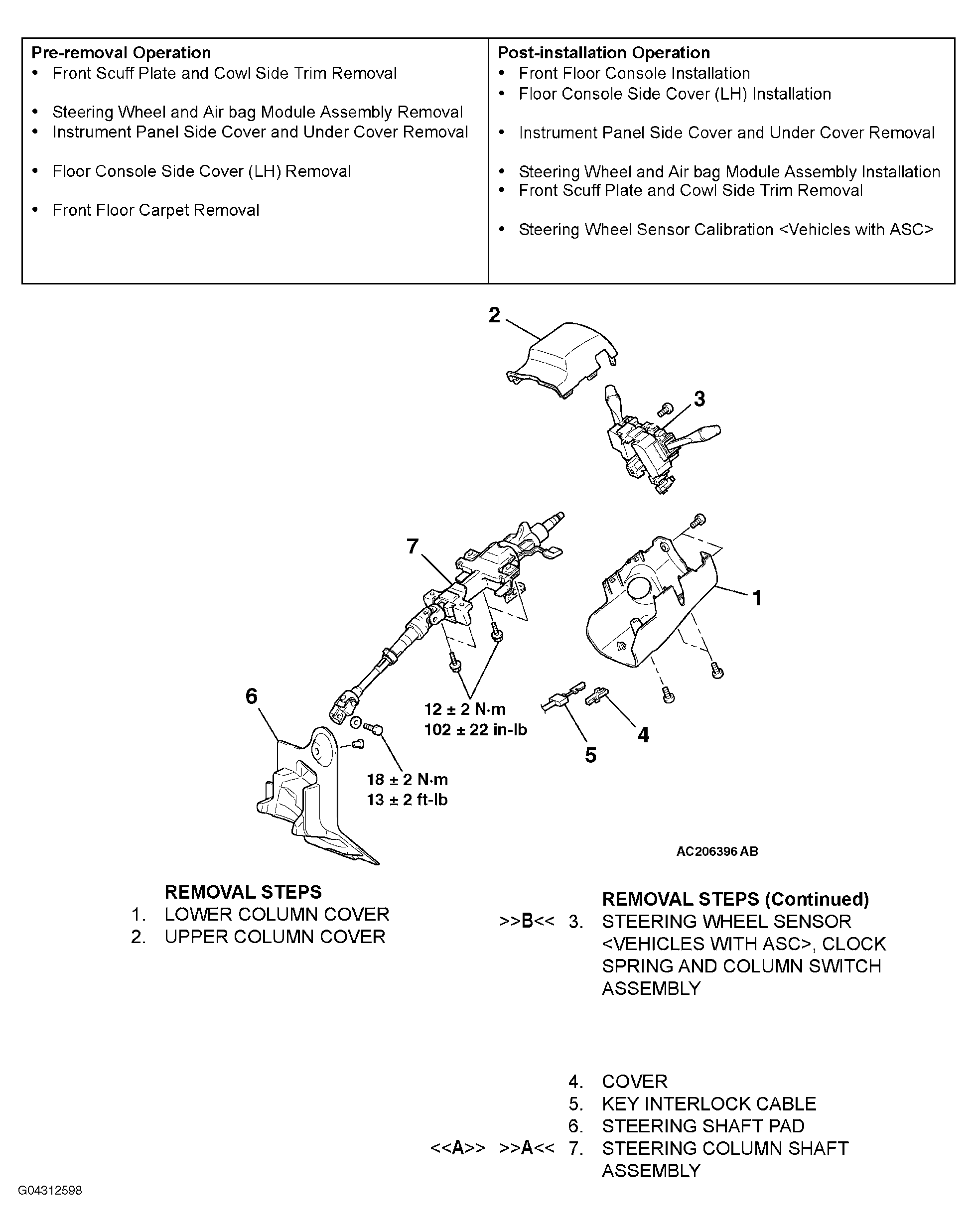

Removal And Installation: Notes
WARNING:
Before removing the steering wheel and air bag module assembly, refer to
SERVICE PRECAUTIONS
and AIR BAG MODULE AND CLOCK SPRING
.
CAUTION:
On vehicles with ASC, always carry out steering wheel sensor calibration after the steering shaft has been installed (Refer to
STEERING WHEEL SENSOR CALIBRATION
). This is necessary because the TCL/ASC-ECU should update the steering neutral point.
