When The Active Skid Control Is Decreasing The Fluid Pressure While The Brake Pedal Is Depressed: Notes

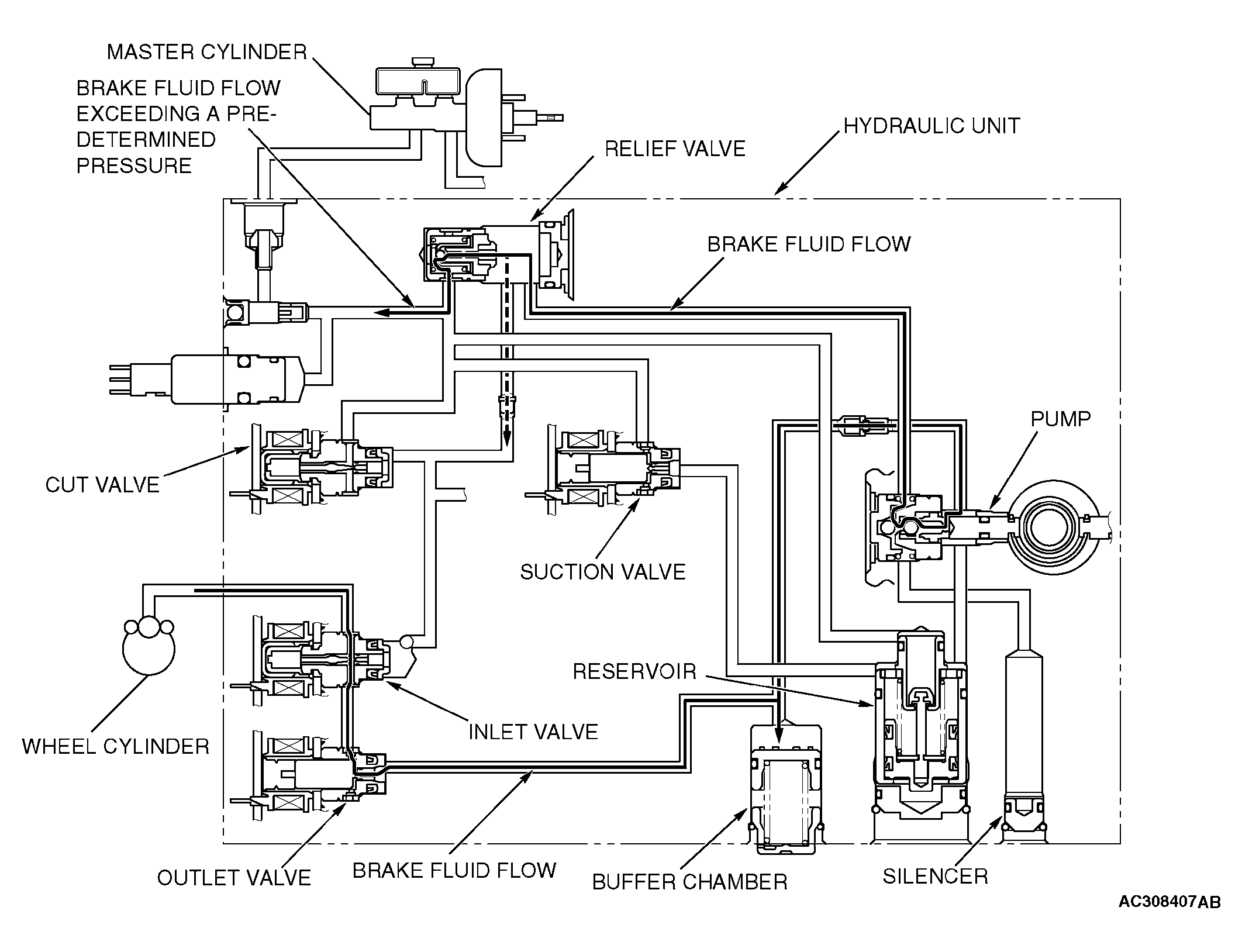

Fig 1: Active Skid Control System Operation - When Active Skid Control Is Decreasing Fluid Pressure - Brake Pedal Is Depressed
The system closes the inlet solenoid and opens the outlet solenoid. This causes the brake fluid in the wheel cylinders to return to the buffer chamber, and decreases the fluid pressure in the wheel cylinders. If the returned brake fluid pressure exceeds a predetermined pressure, excessive brake fluid is returned to the master cylinder.
