Actuator Test Specifications

ACTUATOR TEST REFERENCE

NO. ITEM PARTS TO BE ACTIVATED
05 FR wheel TCL Drive Solenoid valves and pump motors in the hydraulic unit (simple inspection mode)
06 FL wheel TCL Drive
07 RR wheel TCL Drive
08 RL wheel TCL Drive

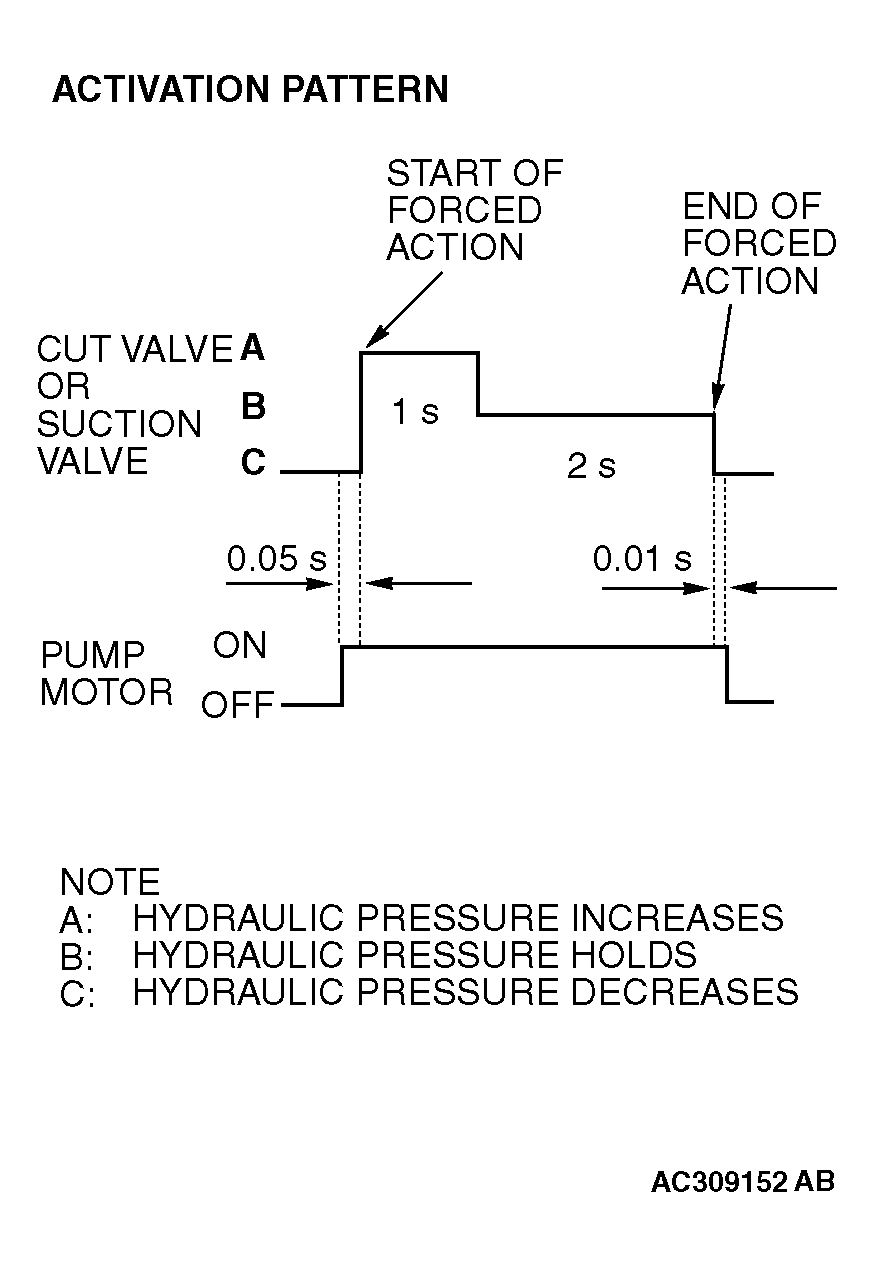

Fig 1: Activation Pattern Of Actuator
G04312511Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
