< 2.4L Engine >

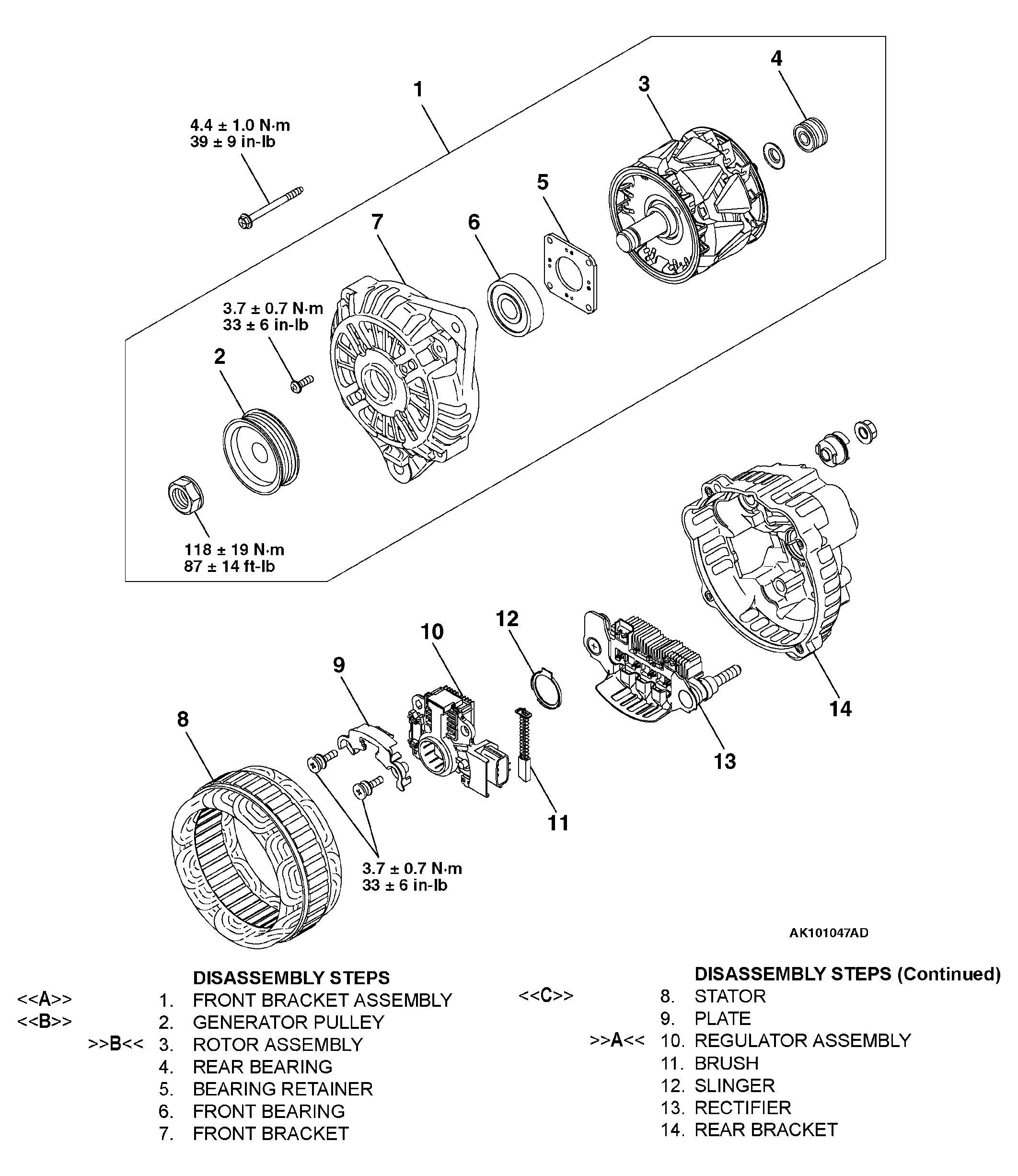

Fig 1: Exploded View Of Generator - 2.4L Engine With Torque Specifications
G04253968Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
