Removal And Installation < 2.4L Engine >: Notes

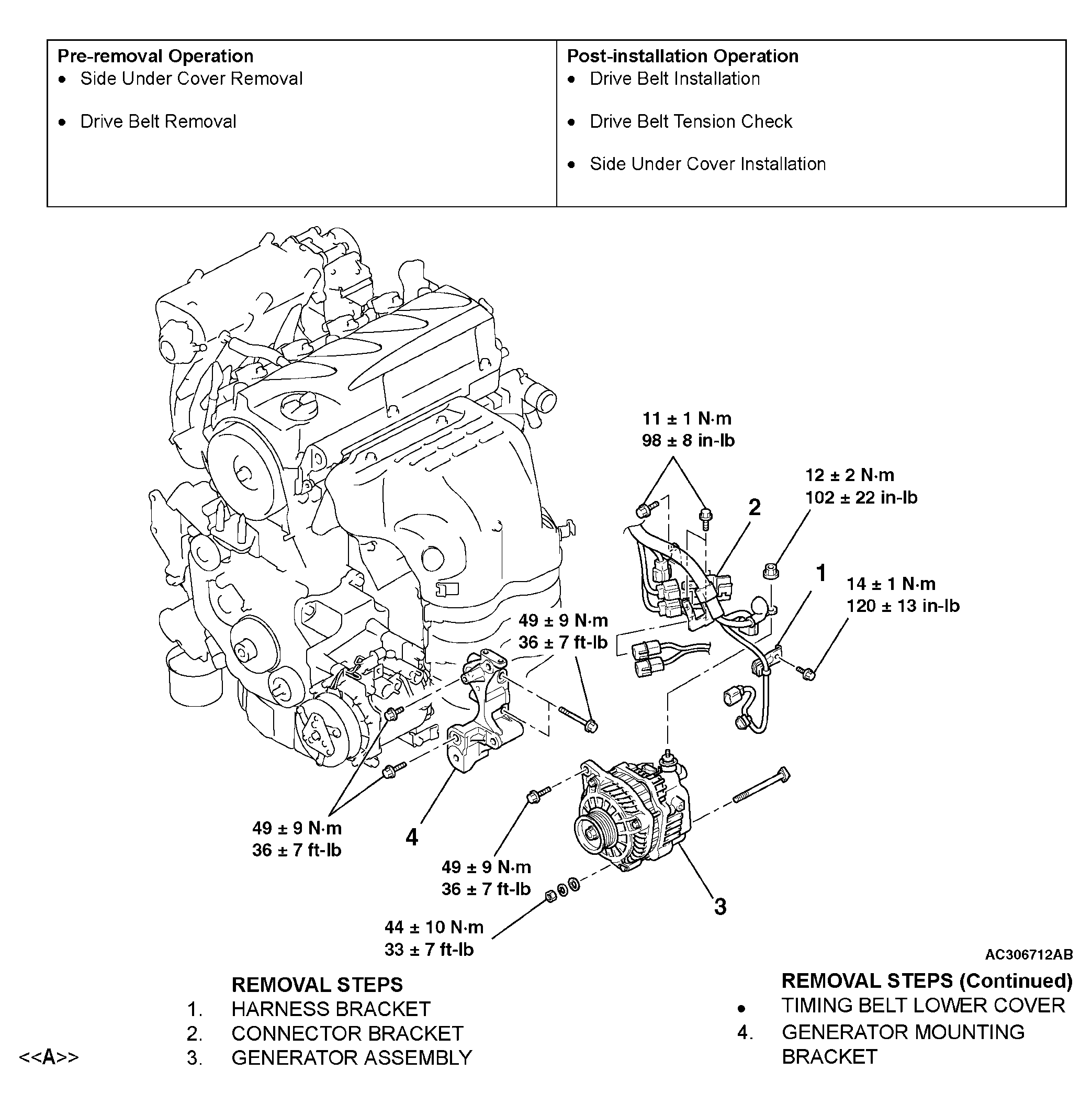

Fig 1: Removing/Installing Generator Assembly With Torque Specifications
G04253966Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
