Special Tool

SPECIAL TOOL DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
G04253948G04253949G04253950G04253951G04253952G04253953G04253954
 MB991958 Scan tool (M.U.T.-III sub assembly)

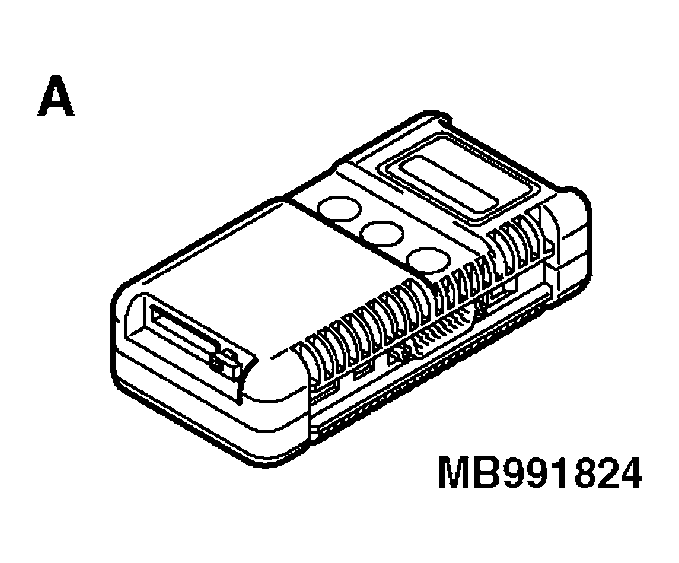

  1. : MB991824 Vehicle communication interface (V.C.I).

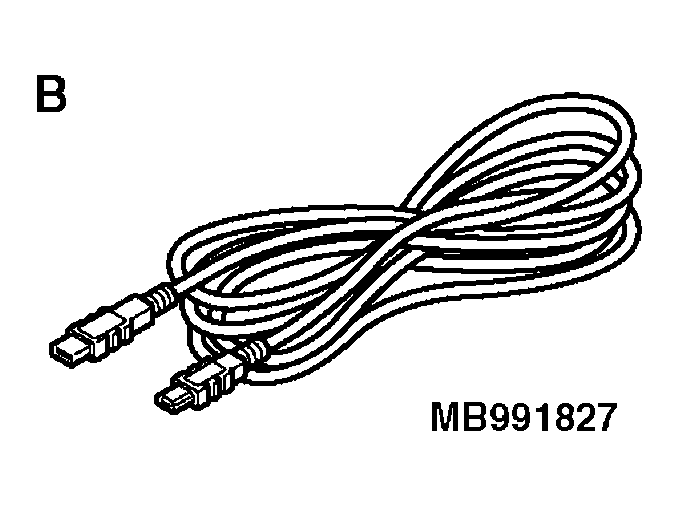

  2. : MB991827 M.U.T.-III USB cable

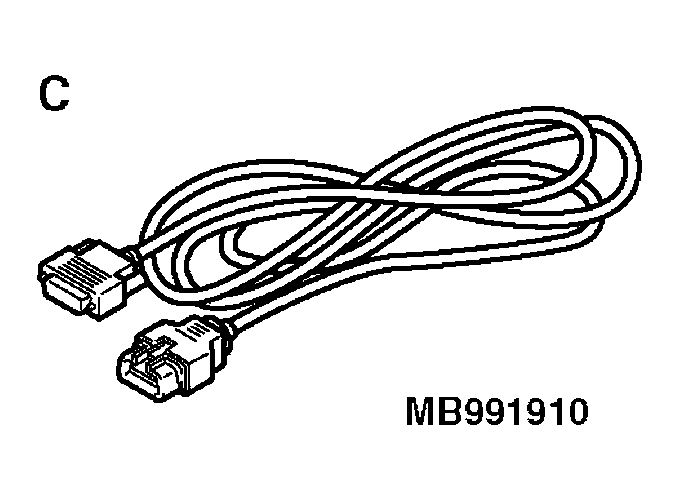

  3. : MB991910 M.U.T.-III main harness A (Vehicles with CAN communication system)

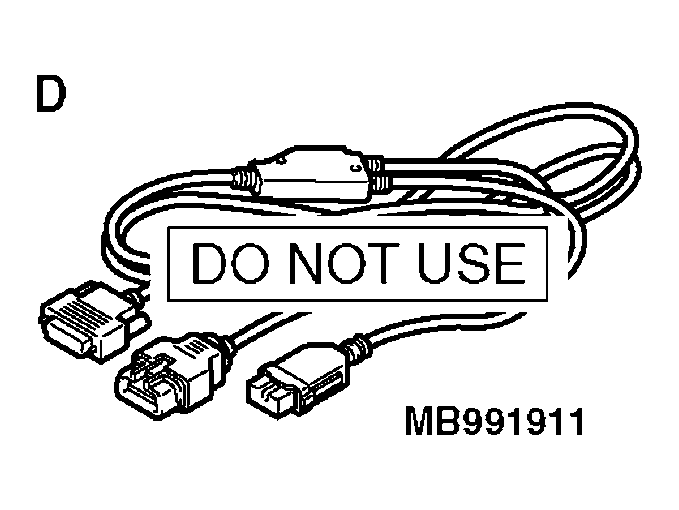

  4. : MB991911 M.U.T.-III main harness B (Vehicles without CAN communication system)

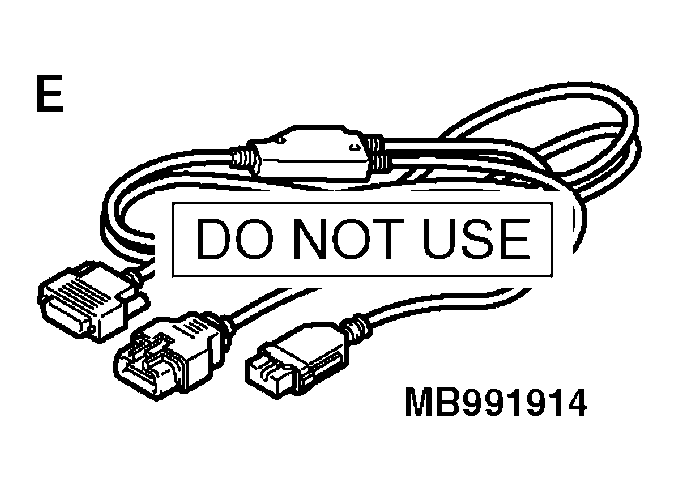

  5. : MB991914 M.U.T.-III main harness C (for DaimlerChrysler models only)

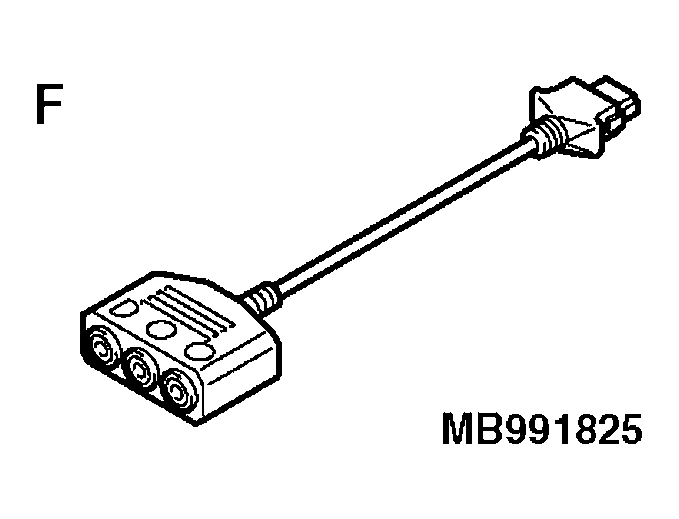

  6. : MB991825 M.U.T.-III measurement adapter

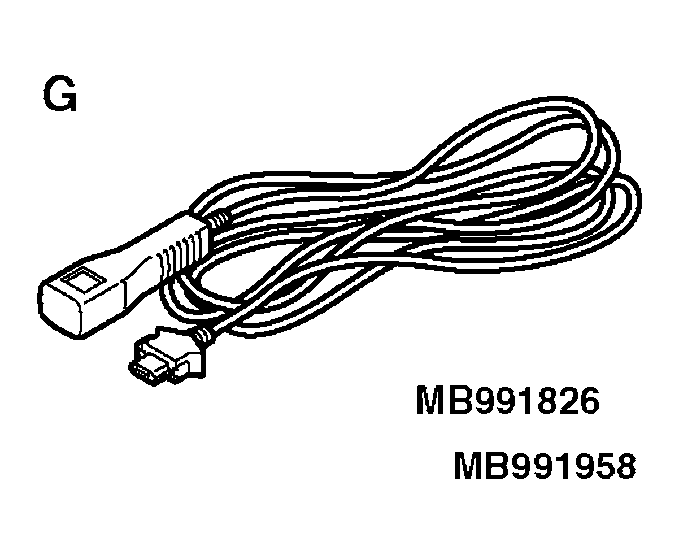

  7. : MB991826 M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking of engine speed
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
G04253955
 MB991519

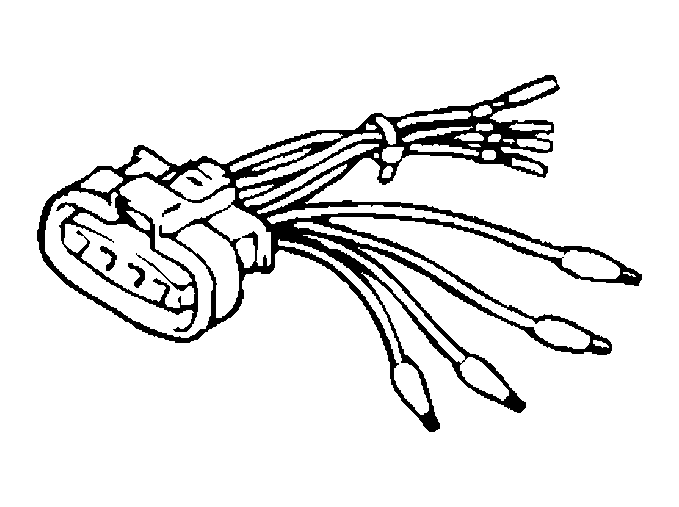

Generator harness connector		 MIT530
Micrd 530 charging system tester.		 Checking of generator ("S" terminal voltage)
