INSPECTION PROCEDURE 2: When Remote Controlled Radio Power Switch is Turned "ON," no Power is Available. But Radio, CD Player and CD Changer Power Switch is Available. < Vehicles with Audio Amplifier >: Notes

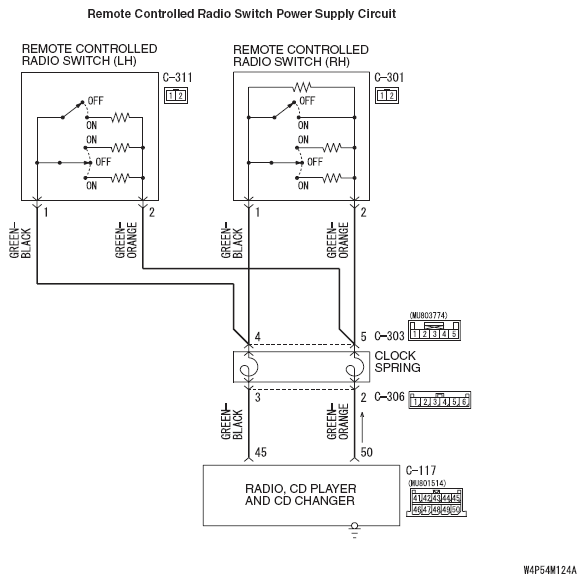

Fig 1: Remote Controlled Radio Switch Power Supply Circuit Diagram (1 Of 2)
G05105207Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
