Steering Column: General Description

Power steering has been adopted in all vehicles to make the steering system easier to handle.

• A 4-spoke steering wheel is used.
• A steering column has a shock absorbing mechanism and a tilt steering mechanism.
• A rack and pinion steering gear is used.
• An oil pump responsive to engine RPM is used, to enhance steering stability at high speeds.
• The separate plastic resin oil reservoir is used to reduce weight and to make the fluid level checking easier.

< 2. 4L ENGINE >

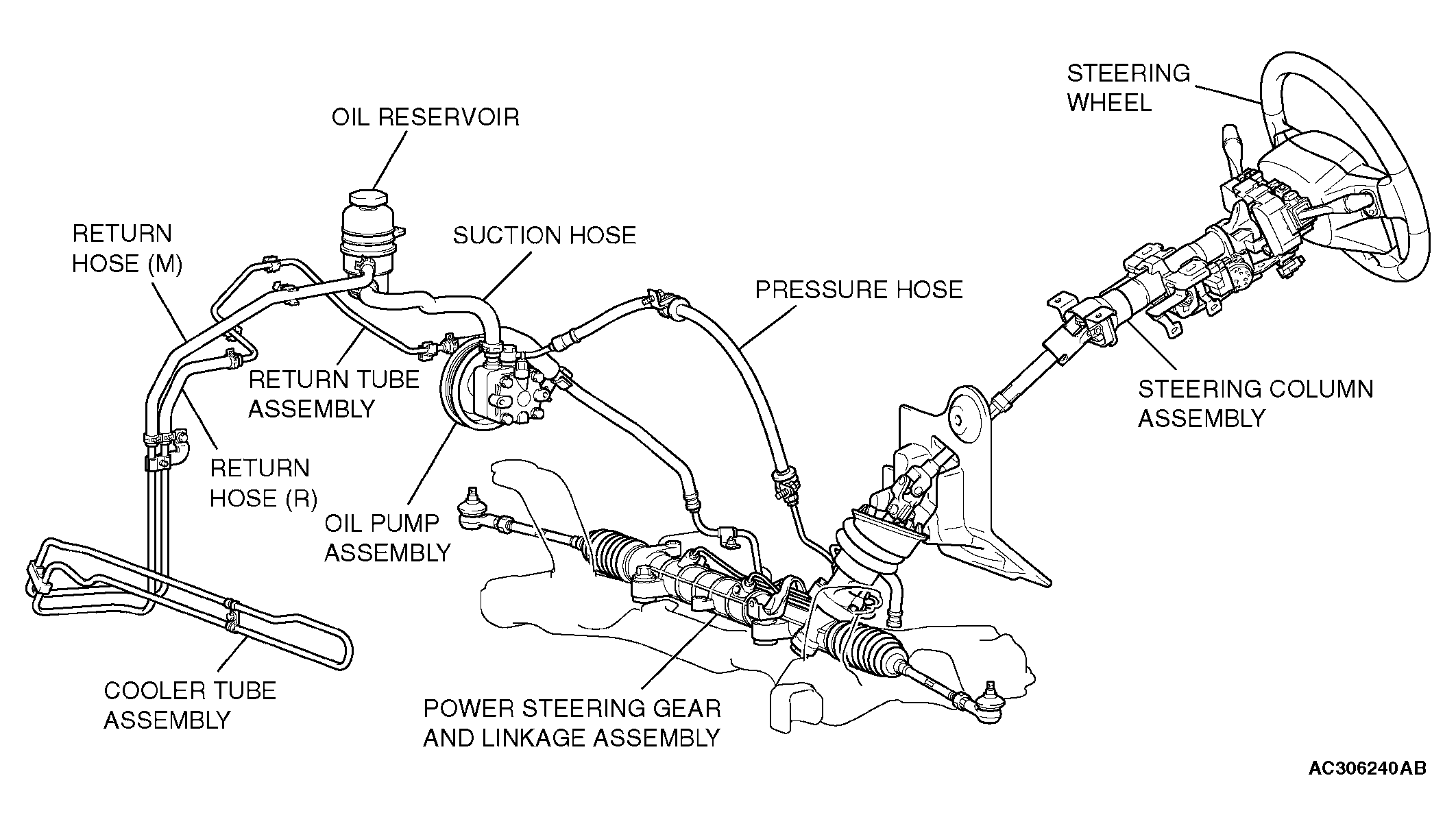

Fig 1: Identifying Power Steering System - 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< 3.8L ENGINE >

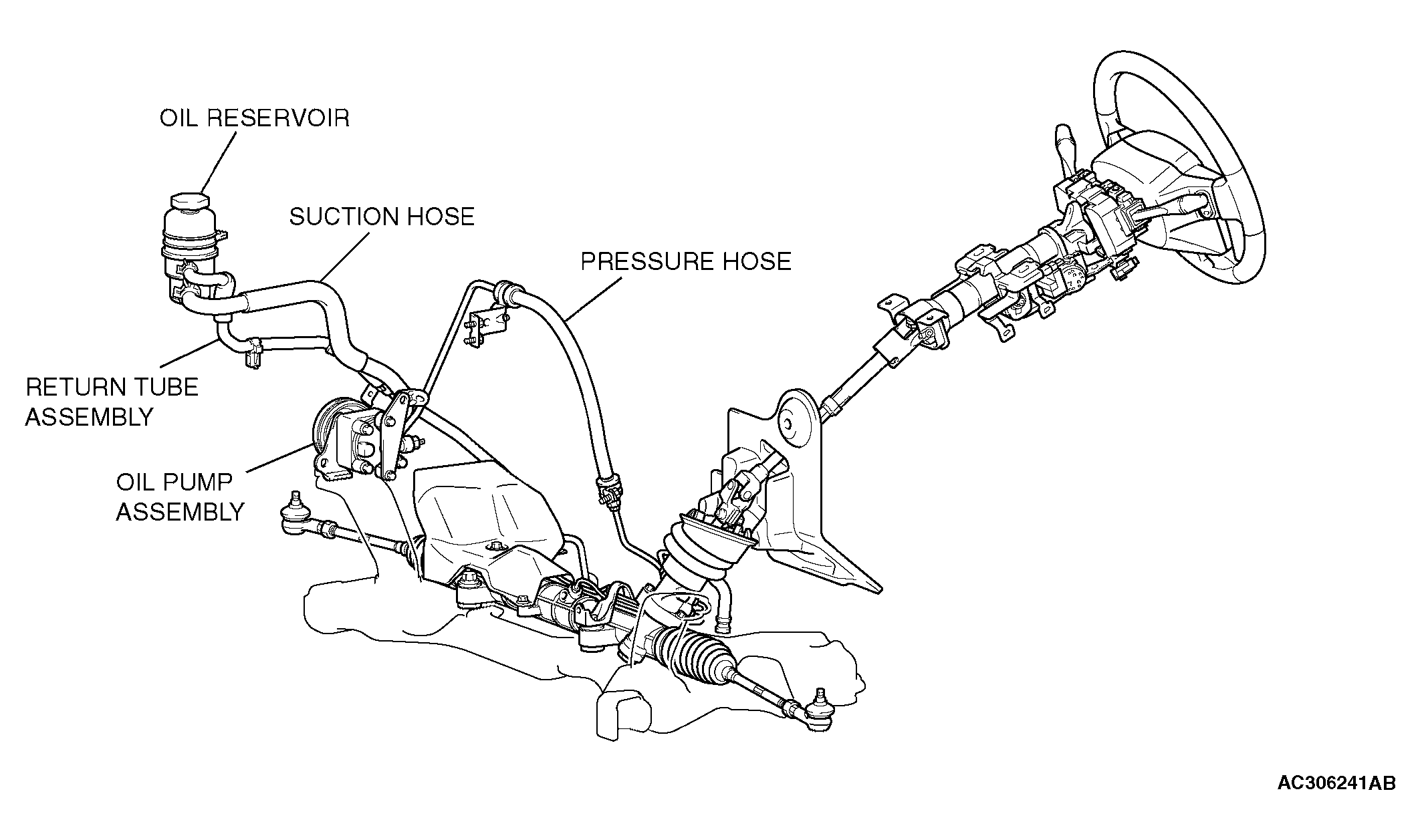

Fig 2: Identifying Power Steering System - 3.8L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
