>> A << Steering Gear Bushing Installation

Use special tools MD999569 and MB990996 to press fit the steering gear bushing. The projections of the bushing should be positioned as illustrated.

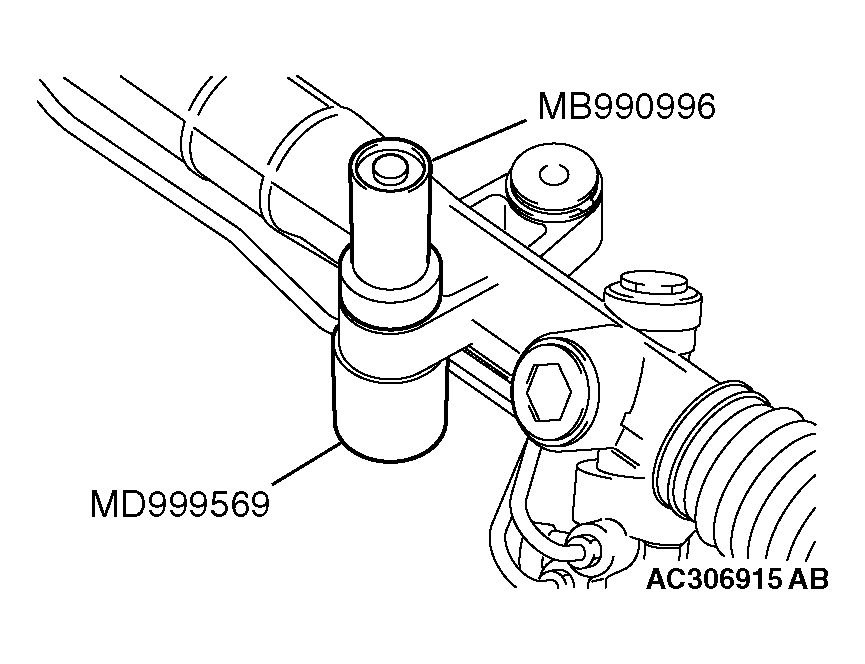

Fig 1: Installing Steering Gear Bushing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

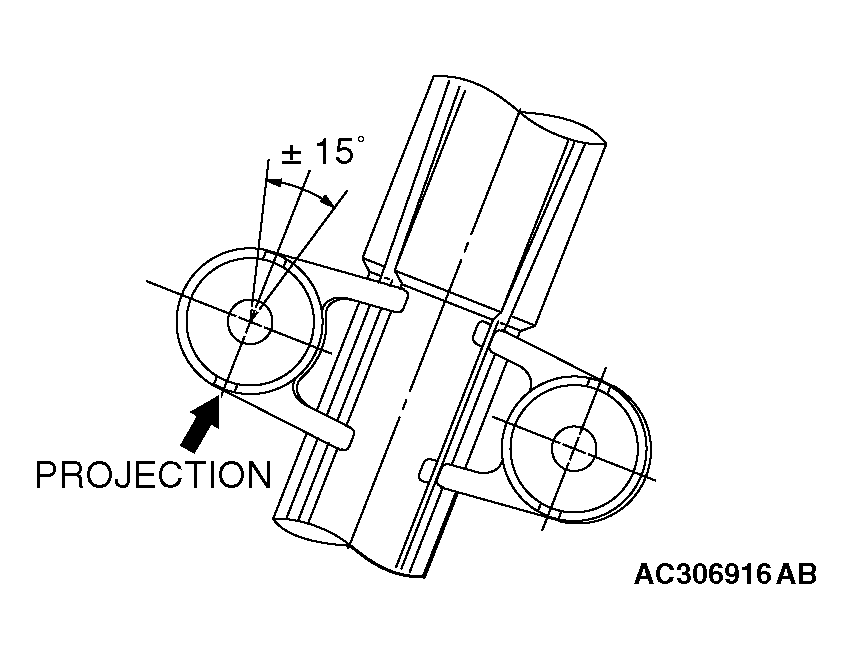

Fig 2: Positioning Steering Gear Bushing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
