>> F << Steering Gear Bushing (Rack Bushing) Installation

CAUTION: Do not allow oil seal retainer spring to slip out.

Wrap the rack end with vinyl tape, apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID, and then install the rack bushing and rack stopper.

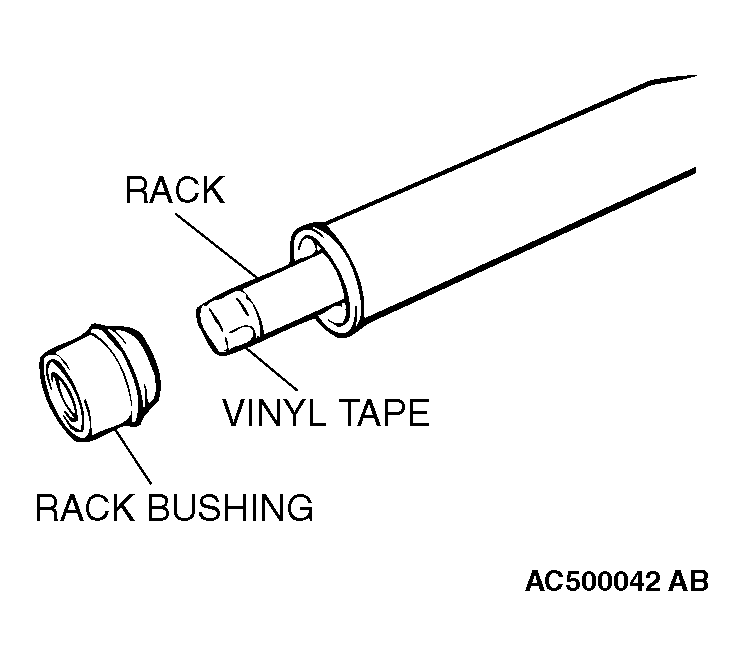

Fig 1: Installing Steering Gear Bushing (Rack Bushing)
G04255570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
