Disassembly And Assembly: Notes

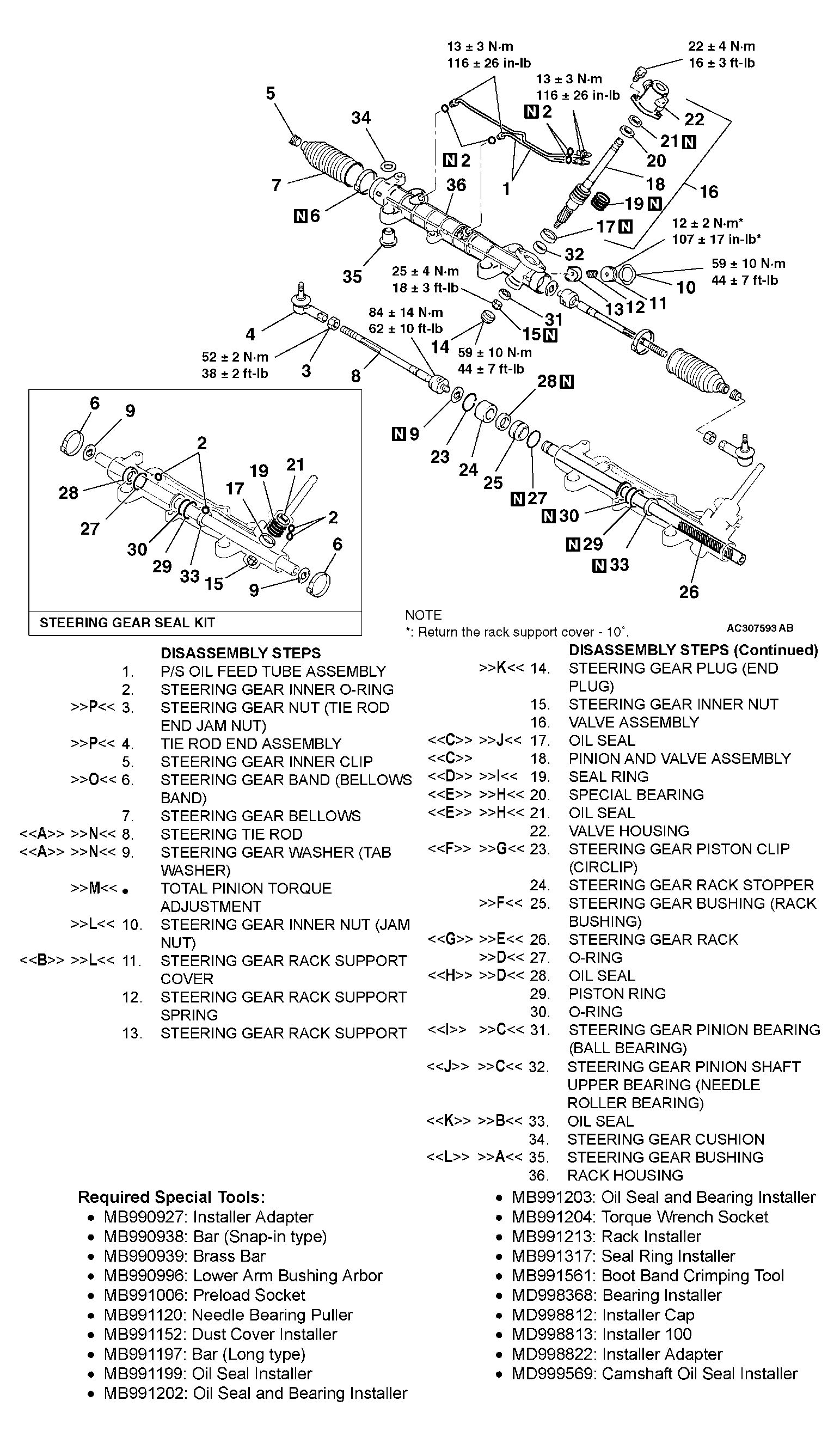

Fig 1: Disassembling/Assembling Power Steering Gear Box & Linkage (With Torque Specification)
G04255549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
