Special Tools

SPECIAL TOOLS SPECIFICATIONS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04255482
 MB991897
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Knuckle and tie rod end ball joint disconnection
NOTE: Steering linkage puller (MB990635 or MB991113) is also available to disconnect knuckle and tie rod end ball joint.

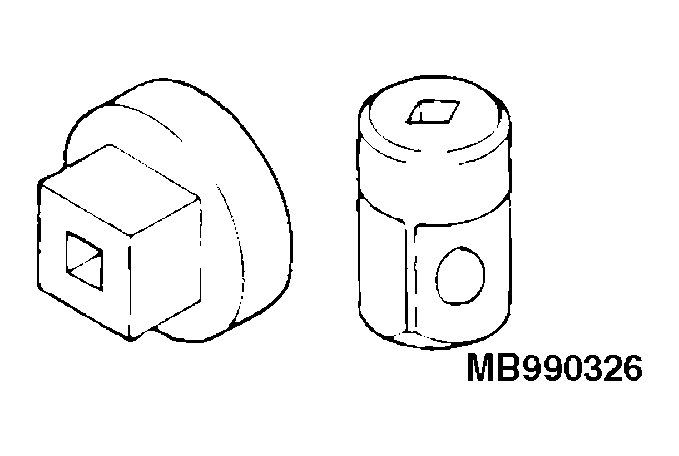

G04255483
 MB990326
Preload socket		 General service tool Tie rod end ball joint breakaway torque check

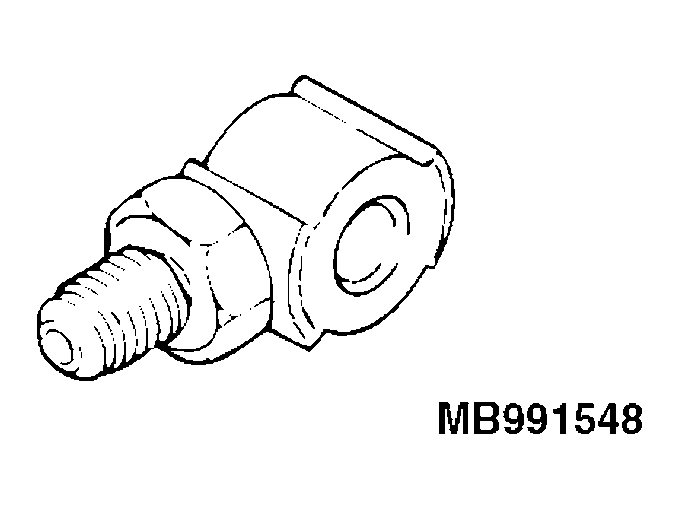

G04255484
 MB991548
Power steering oil pressure gauge adapter (Pump side)		 MB991548-01 Oil pump pressure test

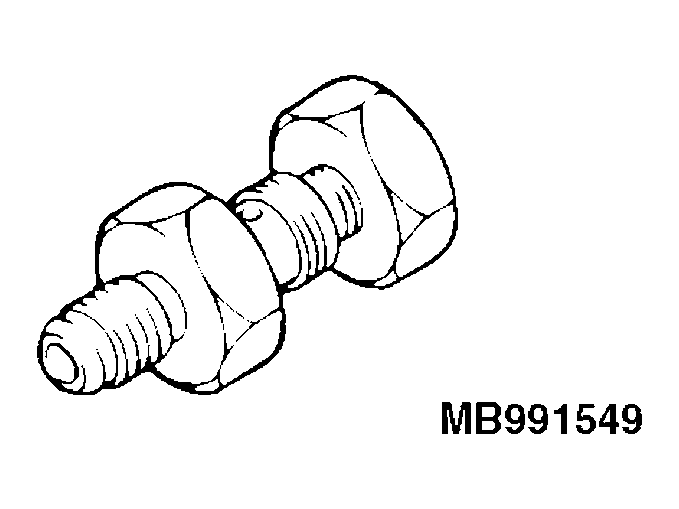

G04255485
 MB991549
Power steering oil pressure gauge adapter (Hose side)		 MB991549-01

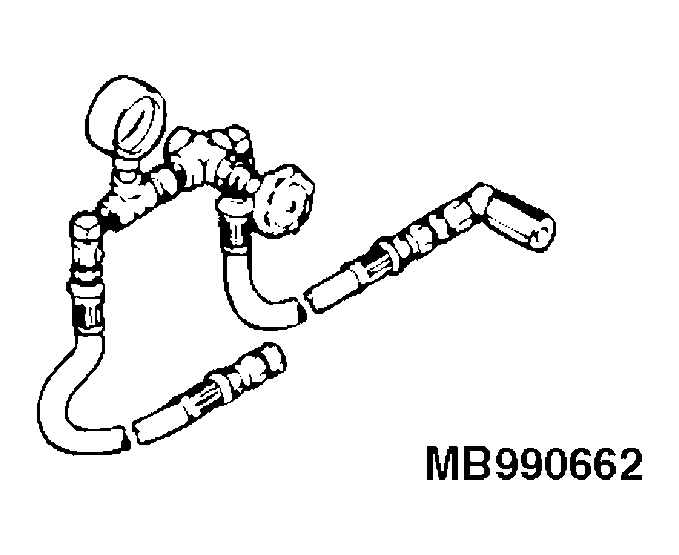

G04255486
 MB990662
Power steering oil pressure gauge		 MB990662-01

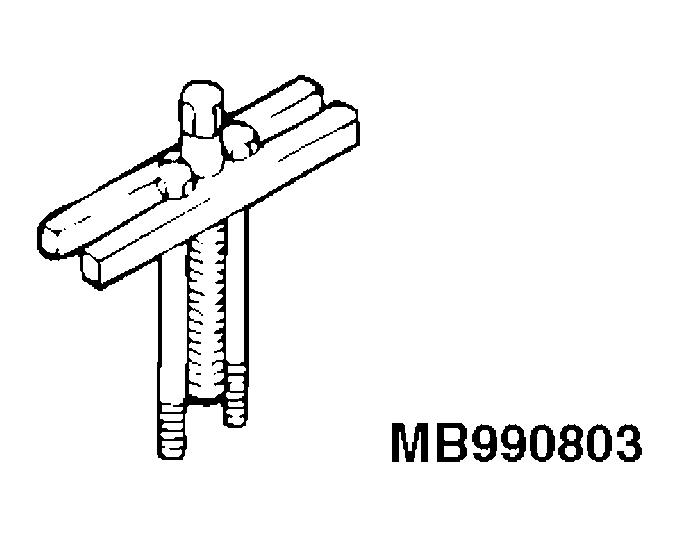

G04255487
 MB990803
Steering wheel puller		 - Steering wheel removal

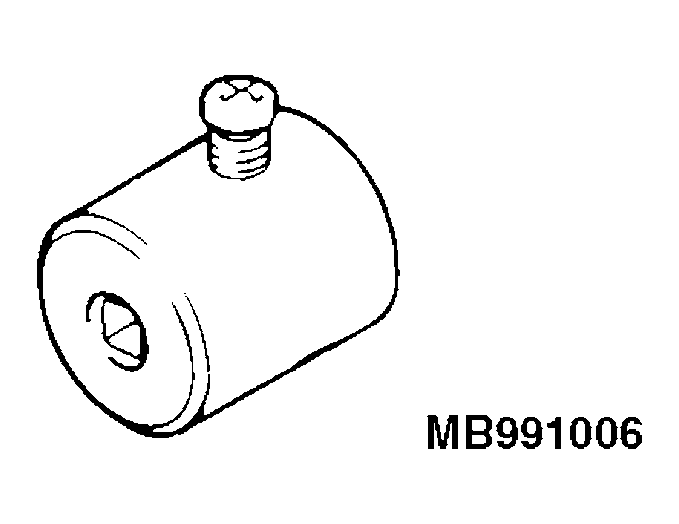

G04255488
 MB991006
Preload socket		 MB990228-01 Steering gear total pinion torque check

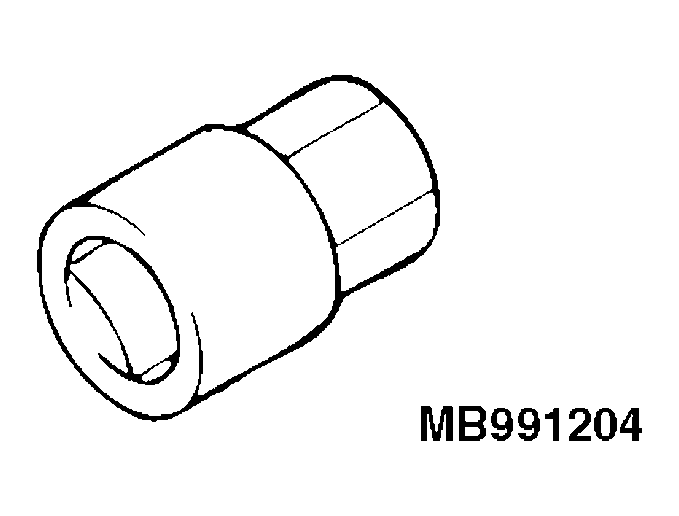

G04255489
 MB991204
Torque wrench socket		 General service tool
  • Rack support adjustment
  • Rack support cover removal
G04255490
 MB990925
Bearing and oil seal installer set		 MB990925-01 or general service tool
  • Oil seal and bearing installation
  • MB990927, MB990938, MB990939 (For details, refer to SPECIAL TOOLS ).

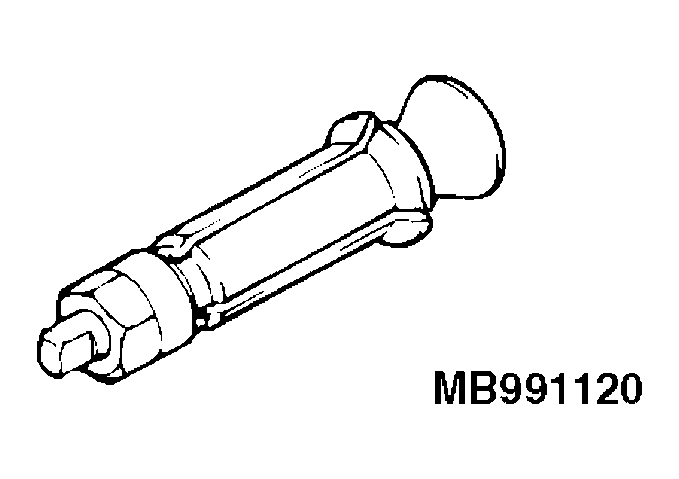

G04255491
 MB991120
Needle bearing puller		 Tool not available Needle roller bearing removal

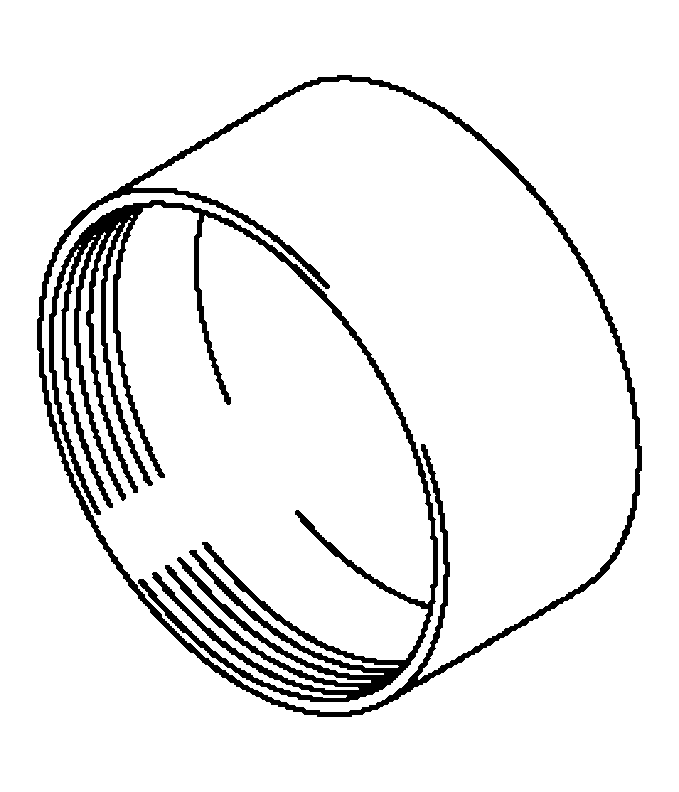

G04255492
 MD998812
Installer cap		 - Gear housing mounting bushing removal

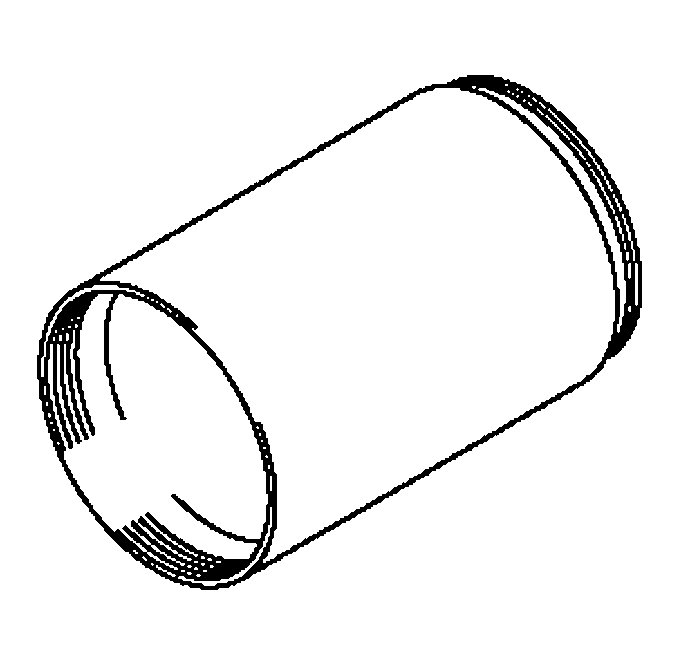

G04255493
 MD998813
Installer 100		 -

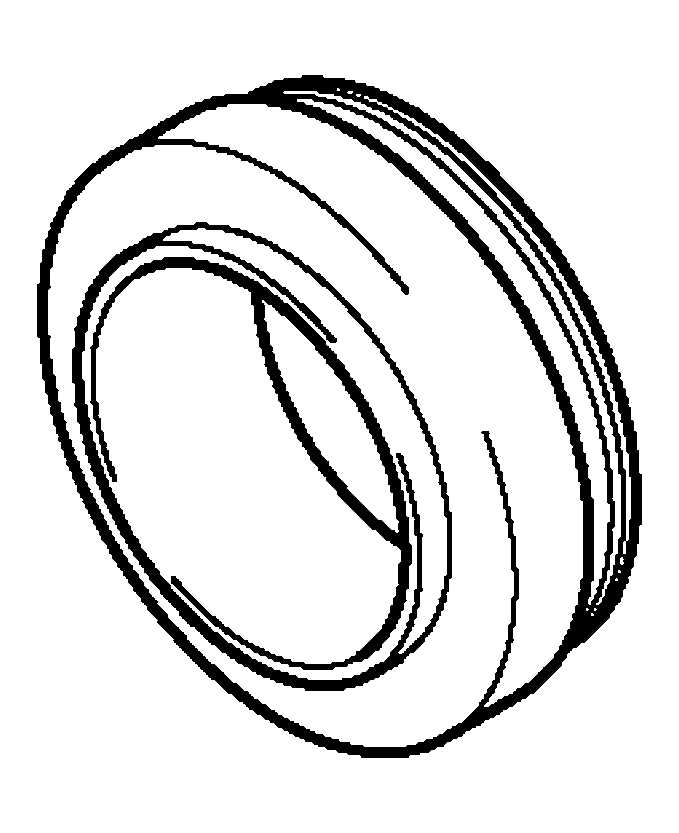

G04255494
 MD998822
Installer adapter		 -

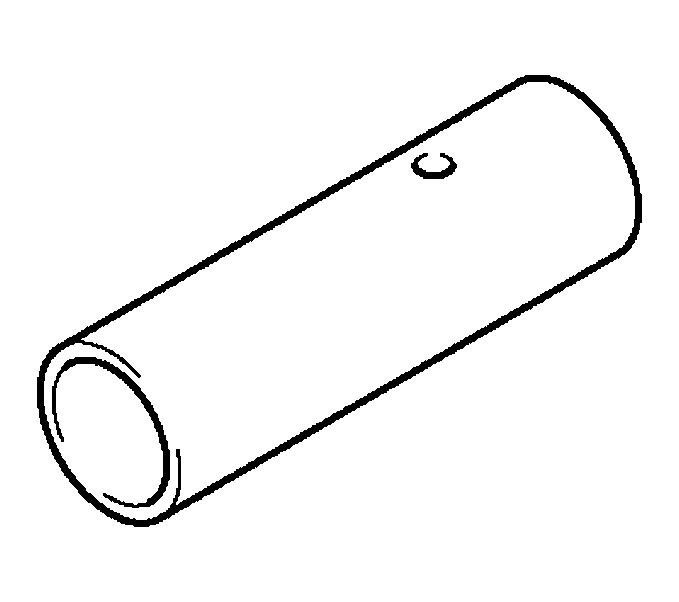

G04255495
 MD998368
Bearing installer		 -

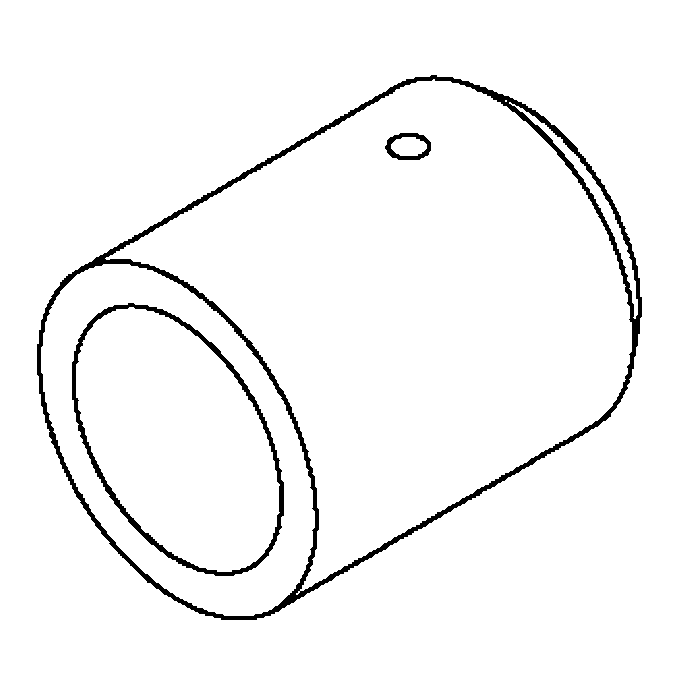

G04255496
 MD999569
Camshaft oil seal installer		 - Gear housing mounting bushing installation

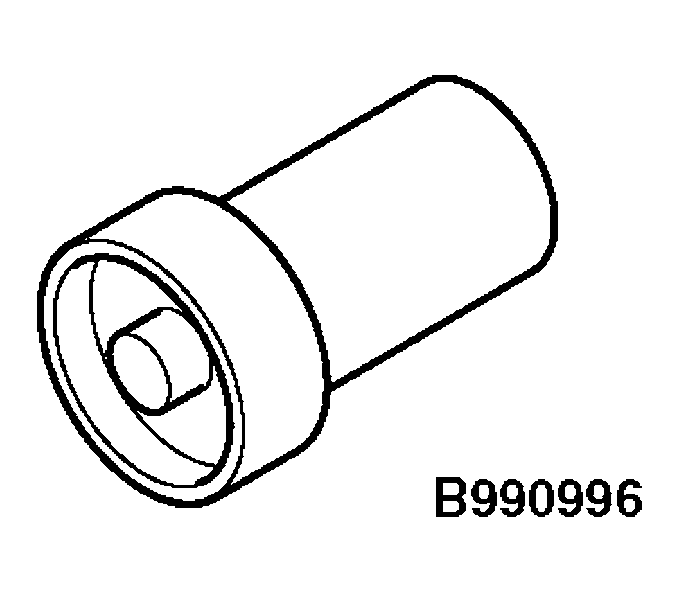

G04255497
 MB990996
Lower arm bushing arbor		 -

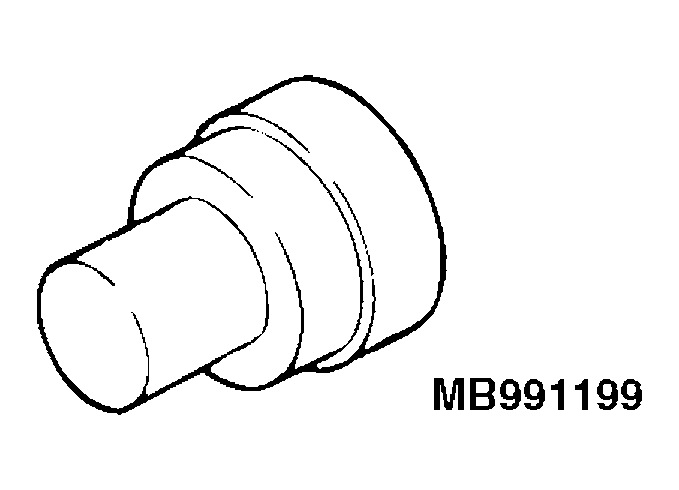

G04255498
 MB991199
Oil seal installer		 General service tool Oil seal installation

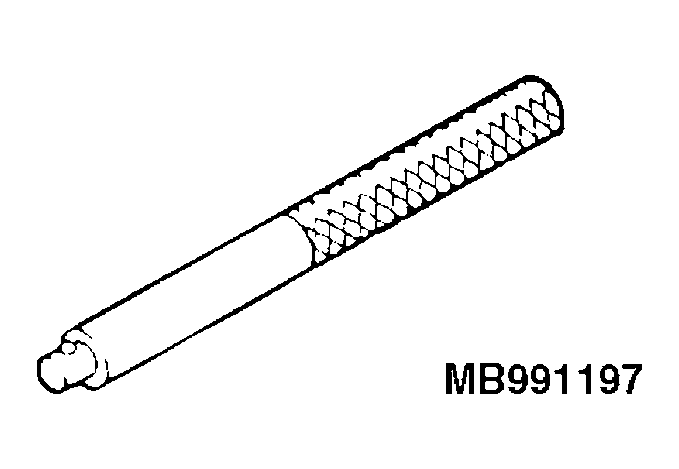

G04255499
 MB991197
Bar (long type)		 General service tool

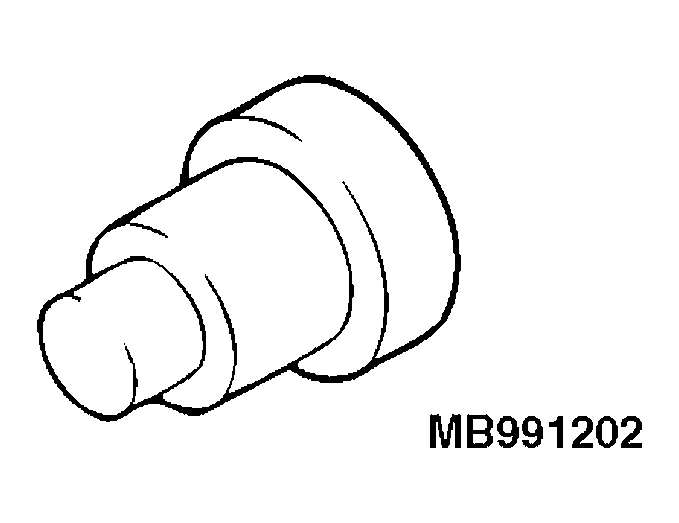

G04255500
 MB991202
Oil seal and bearing installer		 General service tool Needle roller bearing and ball bearing installation
G04255501
 MB991213
Rack installer		 General service tool Rack installation

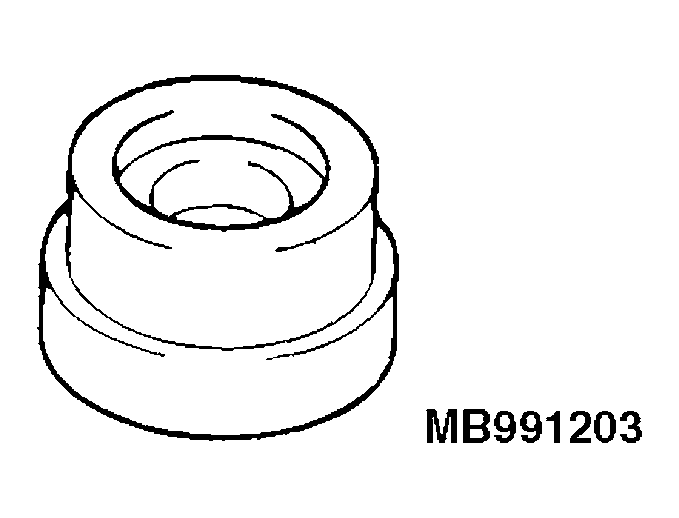

G04255502
 MB991203
Oil seal and bearing installer		 Tool not available Oil seal and bearing installation

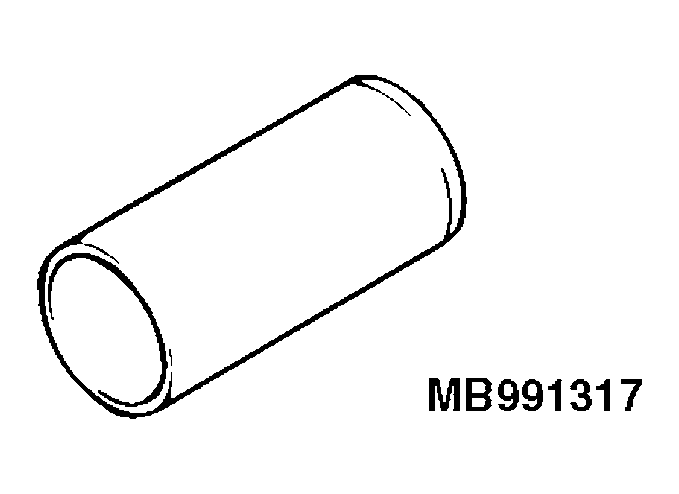

G04255503
 MB991317
Seal ring installer		 Tool not available Seal ring installation

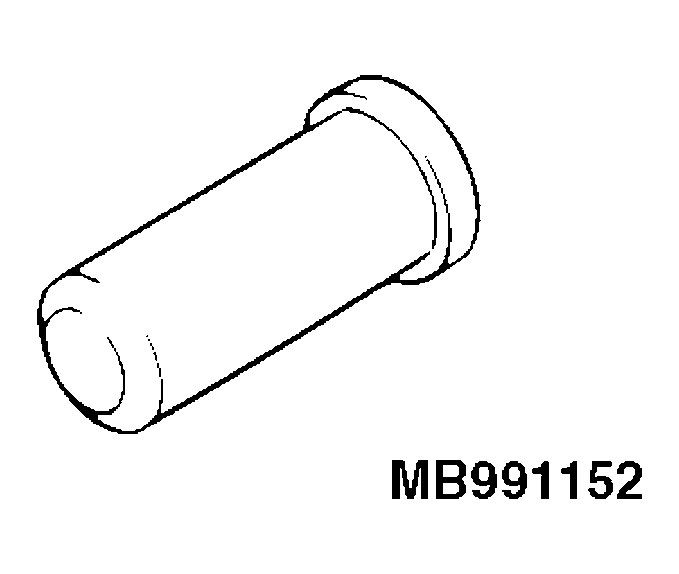

G04255504
 MB991152
Dust cover installer		 General service tool Oil seal installation

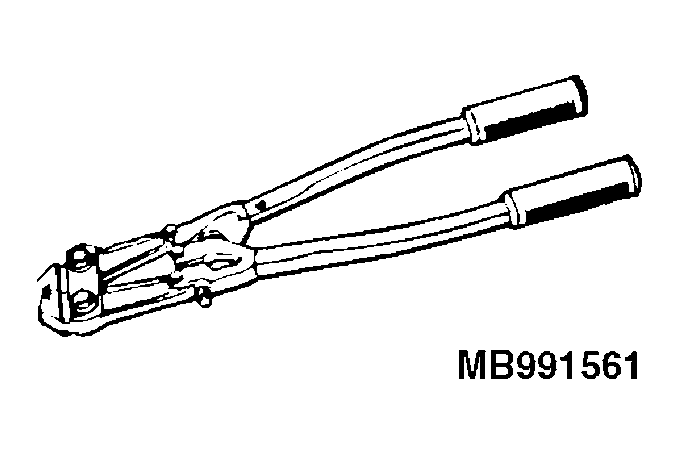

G04255505
 MB991561
Boot band crimping tool		 MB991561 Bellows band installation
