<< A >> Steering Lock Bolt Removal

  1. Drill in the steering lock bolt a hole deep enough for the tap to stand.
  2. Remove the steering lock bolt with a left-hand tap.

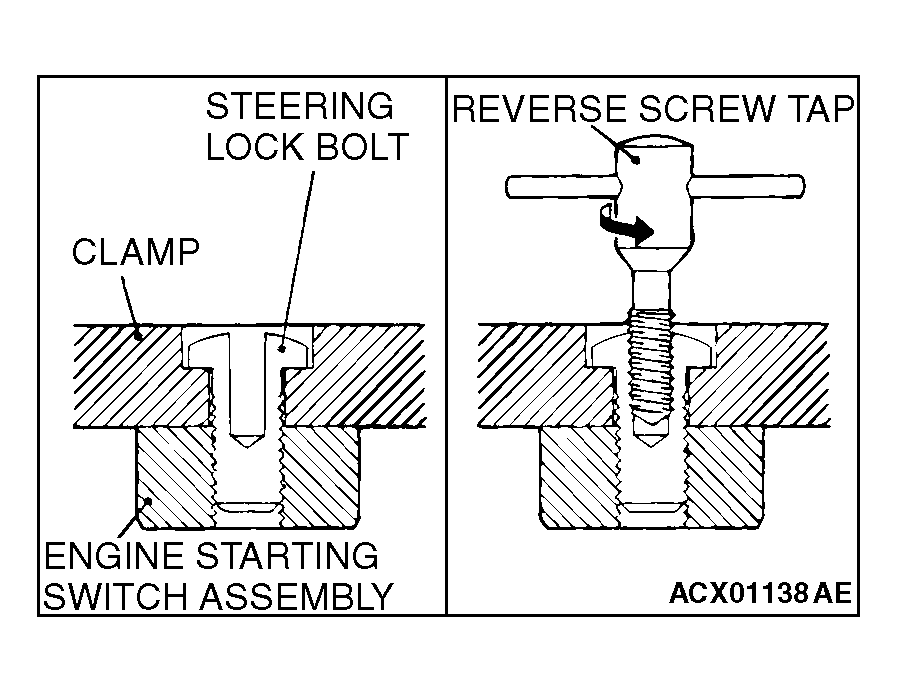

    Fig 1: Removing Steering Lock Bolt
    G04255529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
