Removal And Installation: Notes
WARNING:
Before removing the air bag module and steering wheel assembly, refer to
SERVICE PRECAUTIONS
and
AIR BAG MODULE(S) AND CLOCK SPRING
.

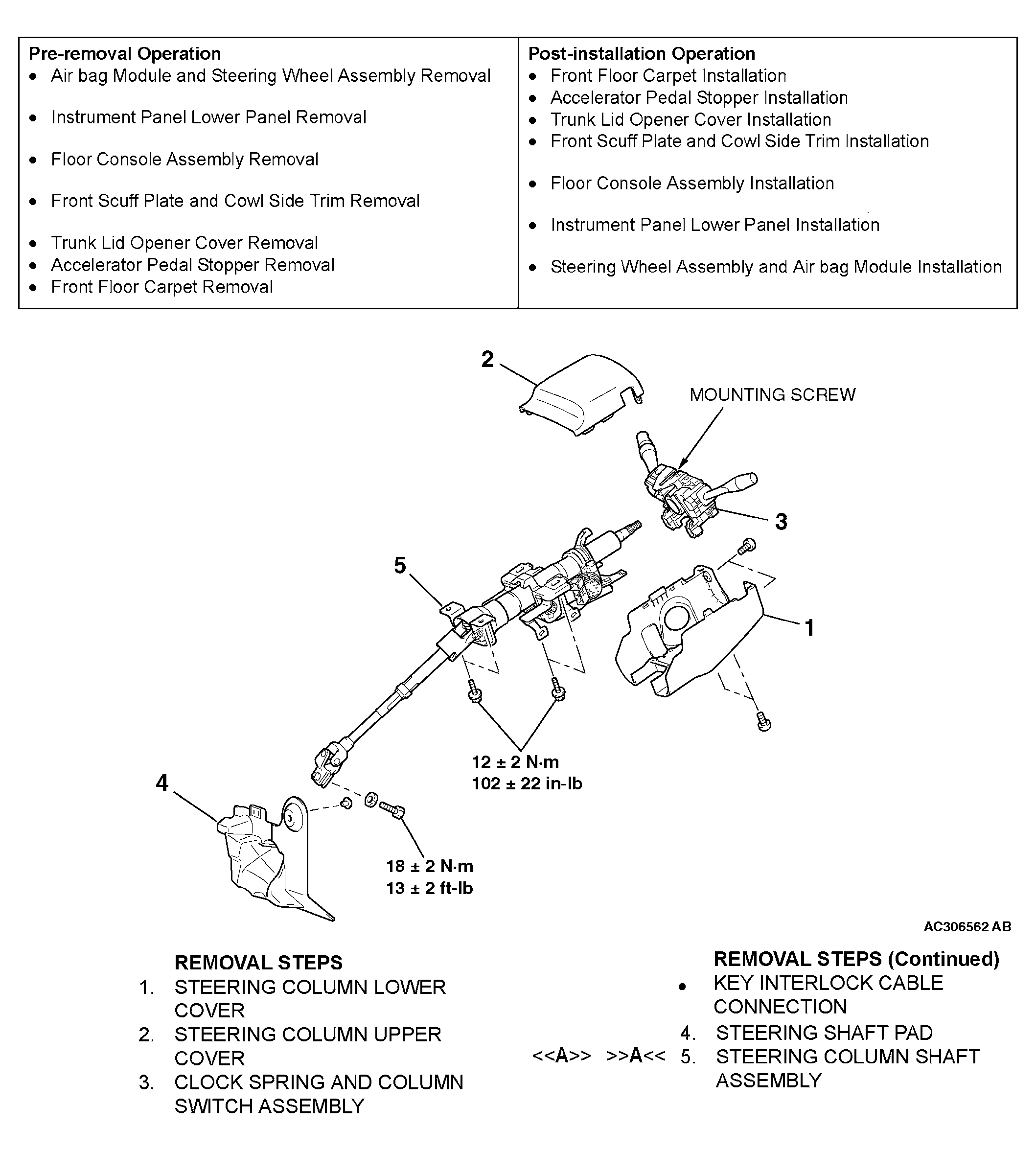

Fig 1: Removing/Installing Steering Column Shaft Assembly (With Torque Specification)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
