INSPECTION PROCEDURE M-1: ETACS-ECU does not receive any signal from ignition switch (ACC).: Notes

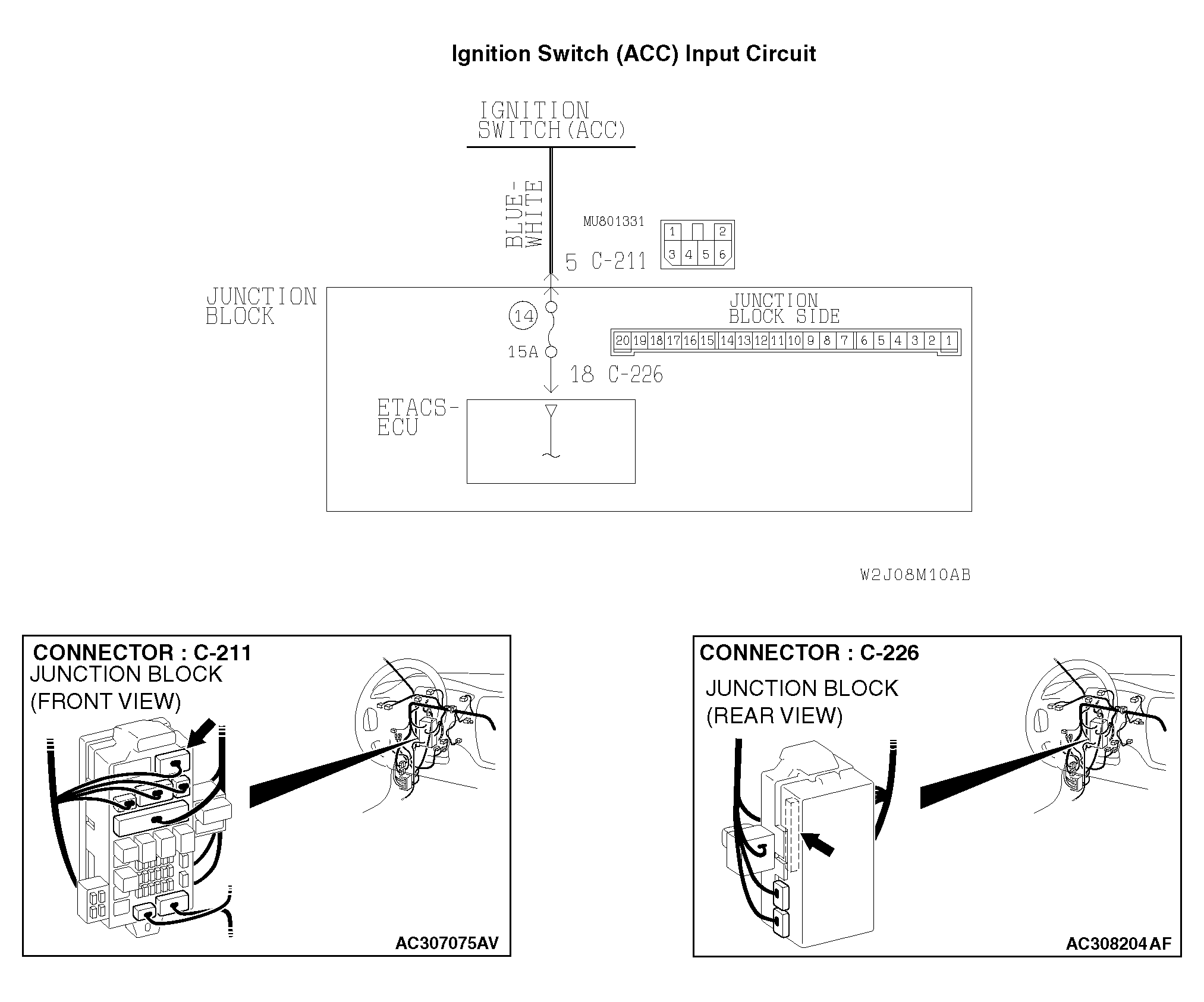

Fig 1: Ignition Switch Input Circuit
G04279846Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
