INSPECTION PROCEDURE M-7: Column Switch: ETACS-ECU does not receive any signal from windshield intermittent wiper interval adjusting knob.: Notes

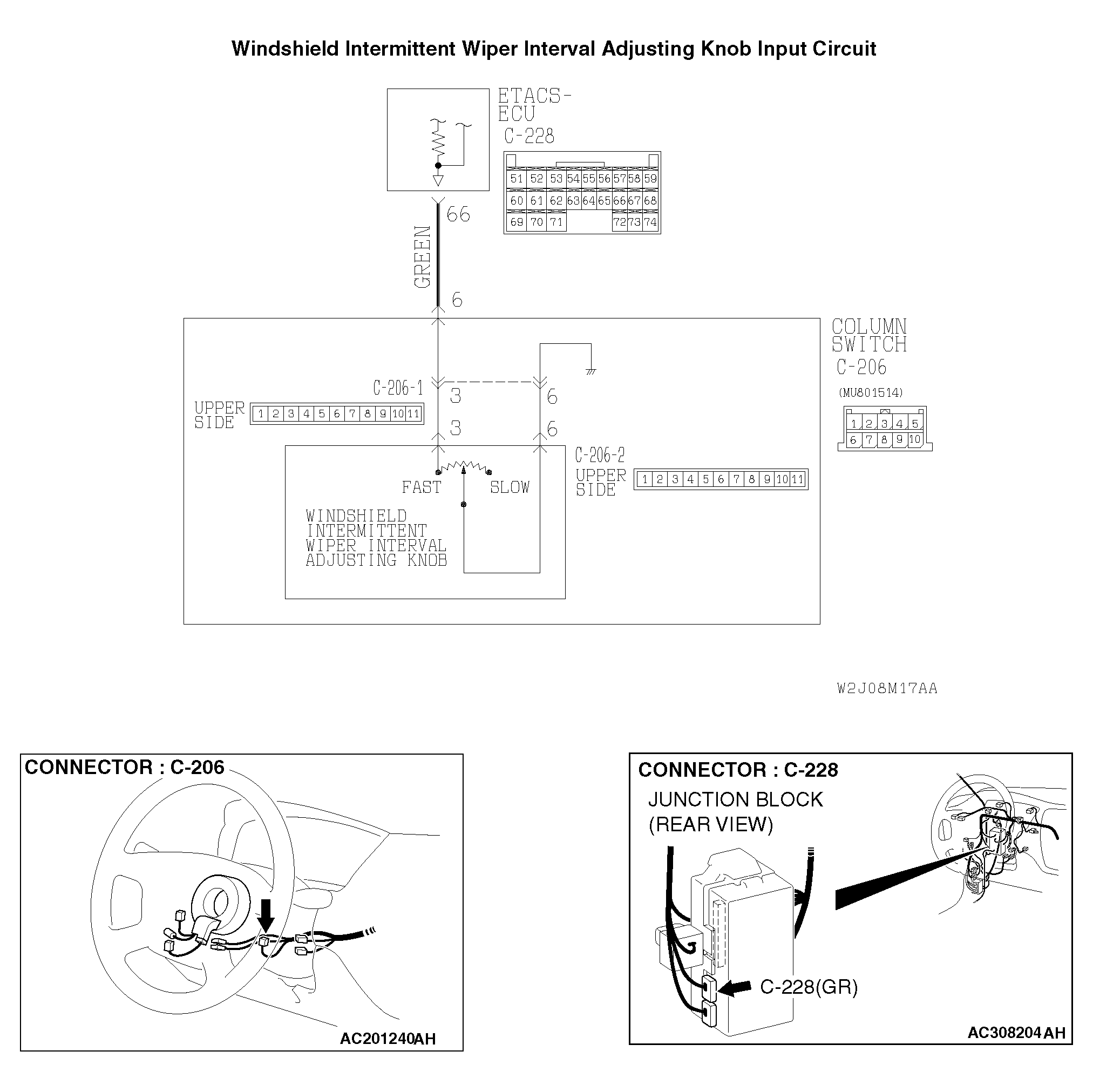

Fig 1: Windshield Intermittent Wiper Input Circuit
G04279919Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
