INSPECTION PROCEDURE A-3: Communication with ETACS-ECU is not possible.: Notes

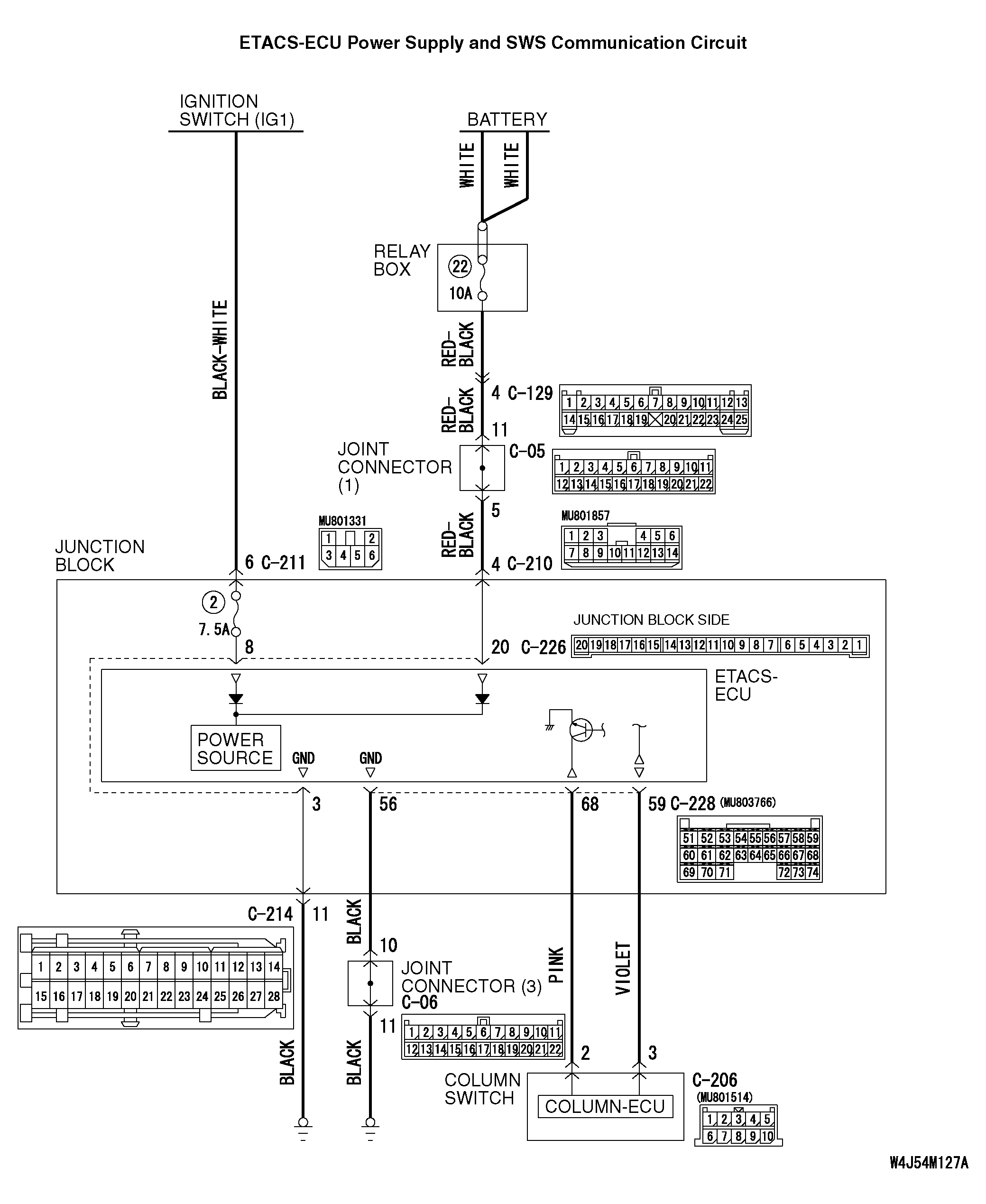

Fig 1: Identifying ETACS-ECU Power Supply And SWS Communication Circuit Diagram (1 Of 2)
G04279066Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

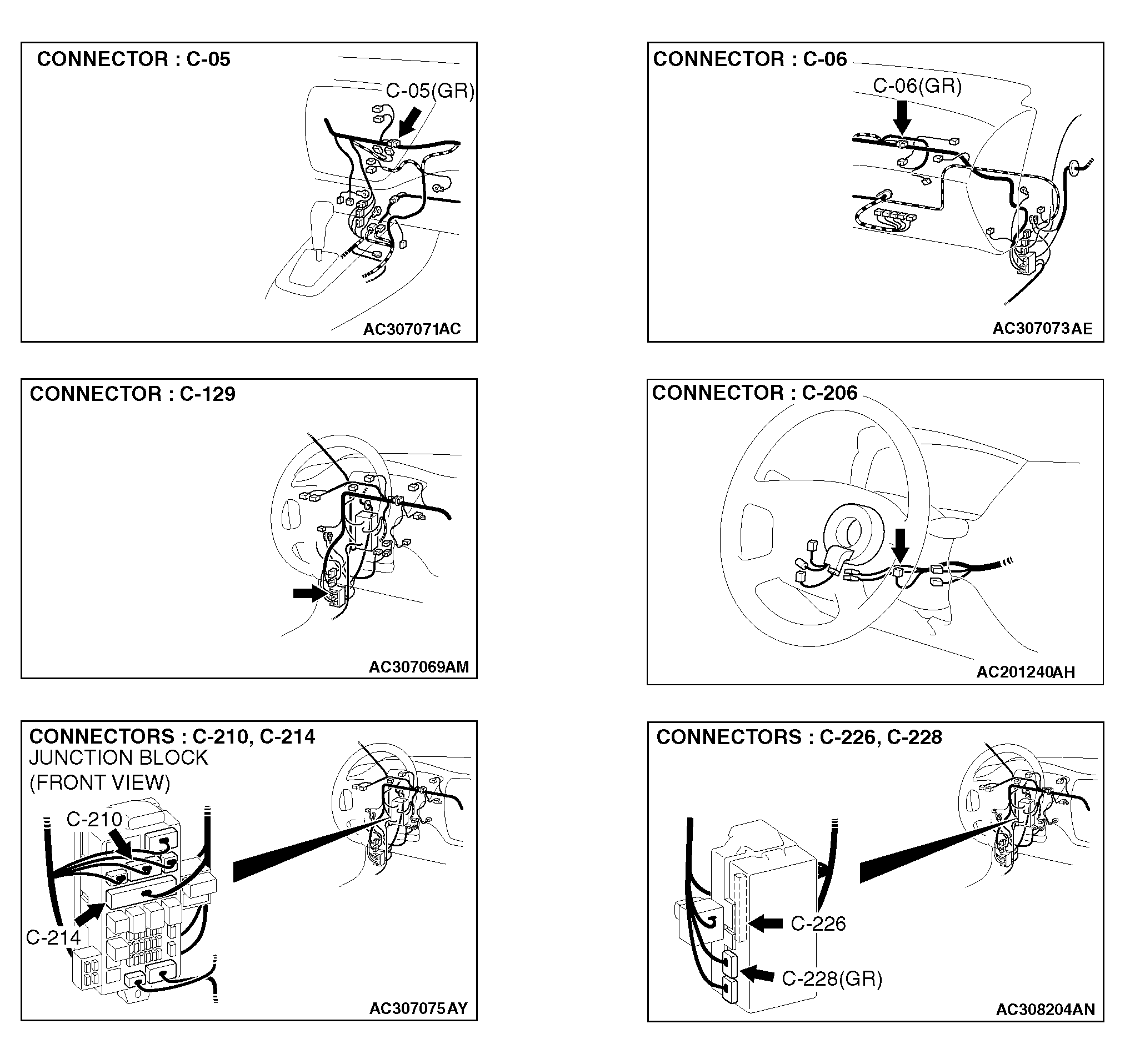

Fig 2: Identifying ETACS-ECU Power Supply And SWS Communication Circuit Diagram (2 Of 2)
G04279067Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
