INSPECTION PROCEDURE 2: Speedometer does not Work. < M/T >: Notes

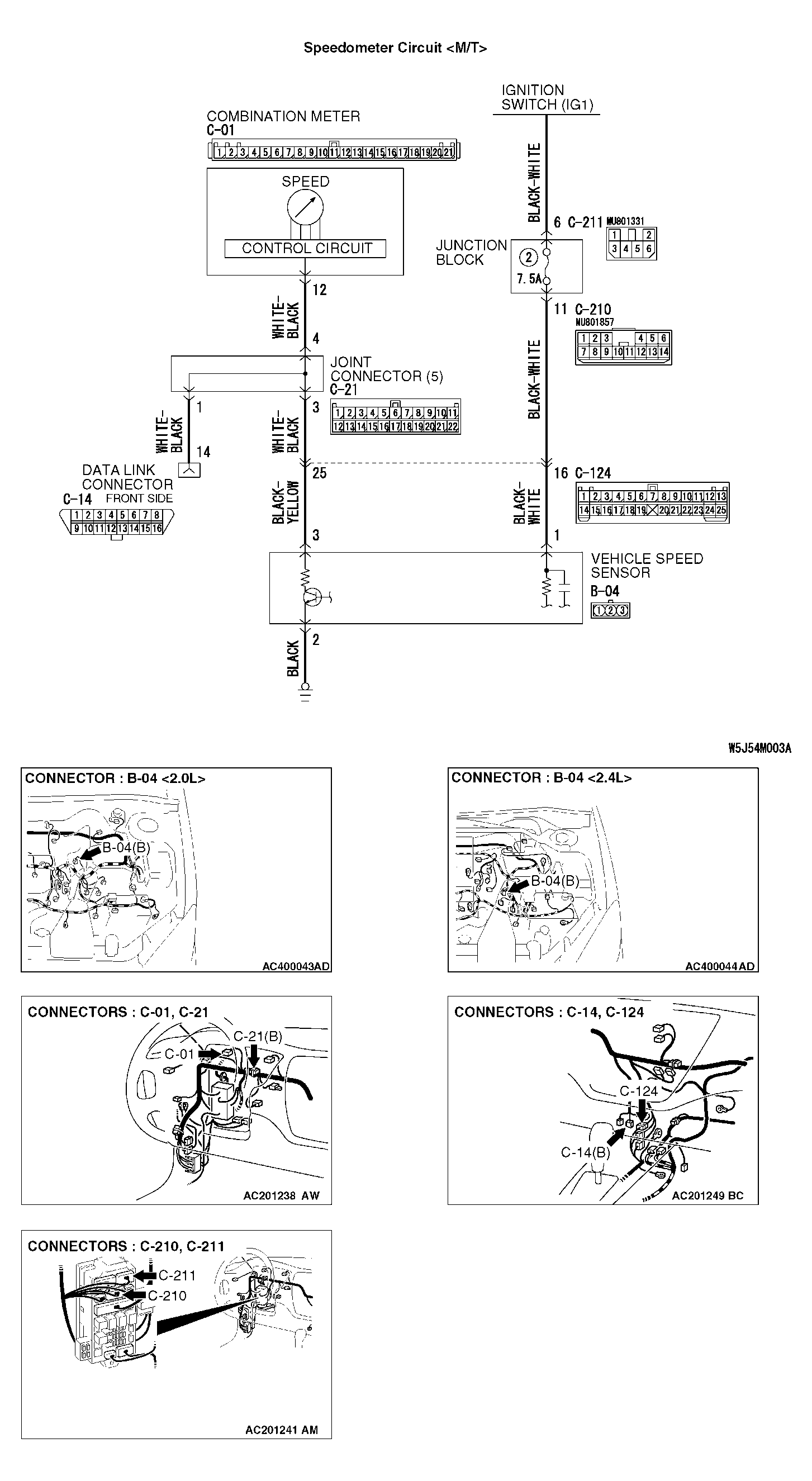

Fig 1: Speedometer (M/T) Circuit Diagram
G04278786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
