INSPECTION PROCEDURE 5: Engine Coolant Temperature Gauge does not Work.: Notes

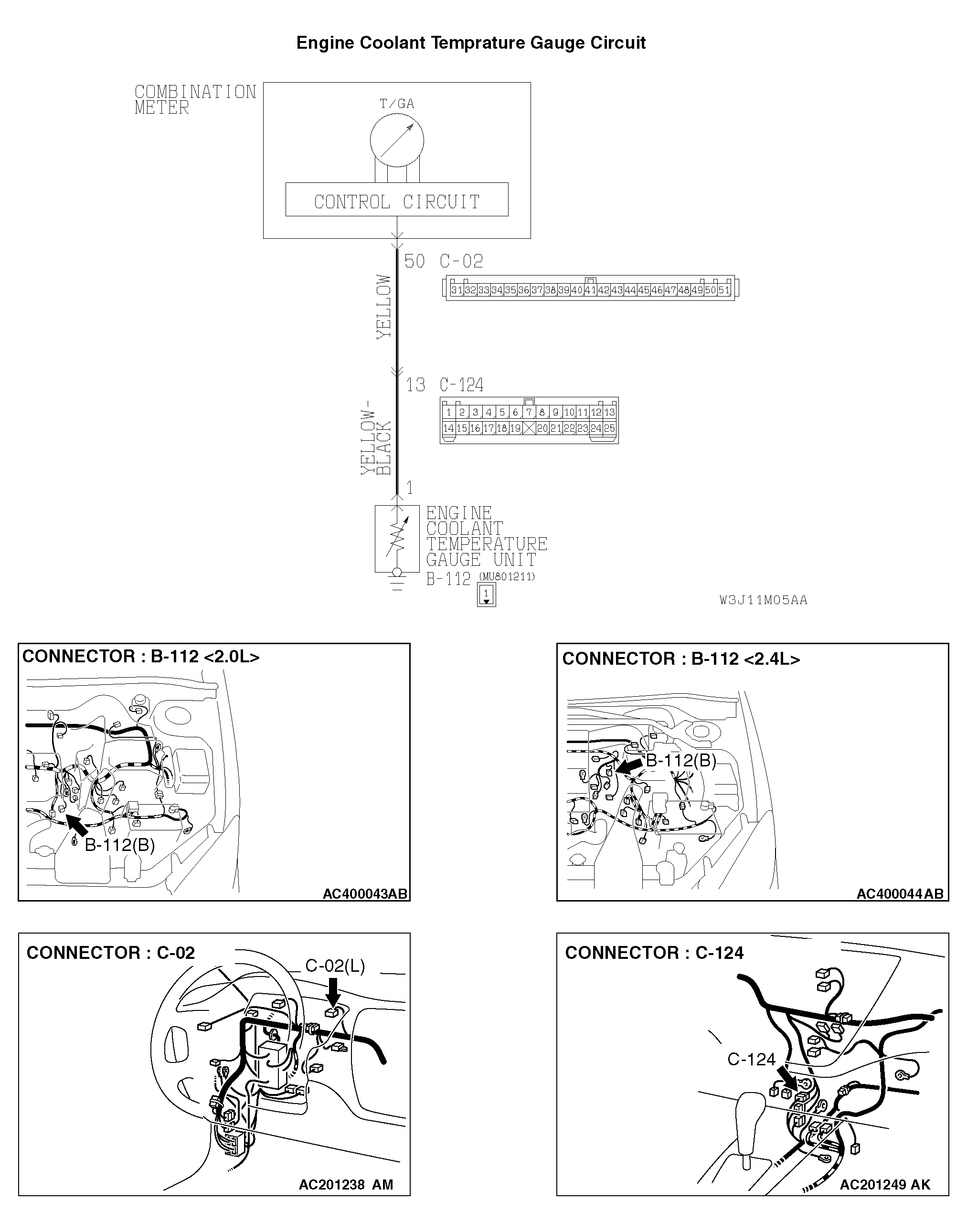

Fig 1: Engine Coolant Temperature Gauge - Circuit Diagram
G04278816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
