INSPECTION PROCEDURE 6: Combination meter does not work.: Diagnosis

Required Special Tools:

• MB991223: Harness Set

1. STEP 1. Measure at combination meter connector C-01 in order to check the battery circuit of power supply system to the combination meter.
   1. Disconnect combination meter connector C-01, and measure at the wiring harness side.

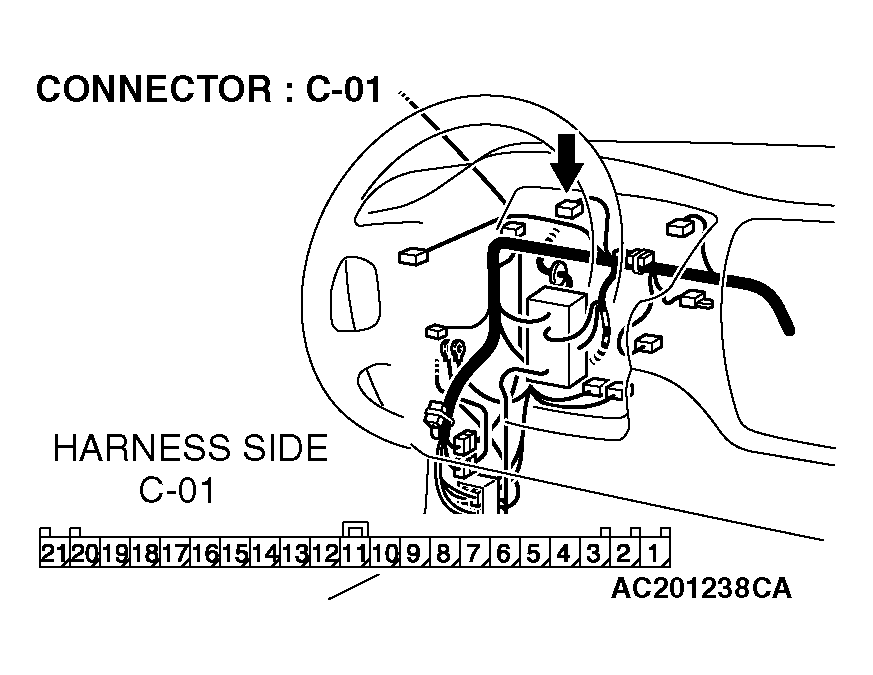

      Fig 1: Identifying C-01 Connector Terminals

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Measure the voltage between terminal 7 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).

   Q: Does the measured voltage correspond with this range?

   YES  : Go to  Step 4.

   NO  : Go to  Step 2.

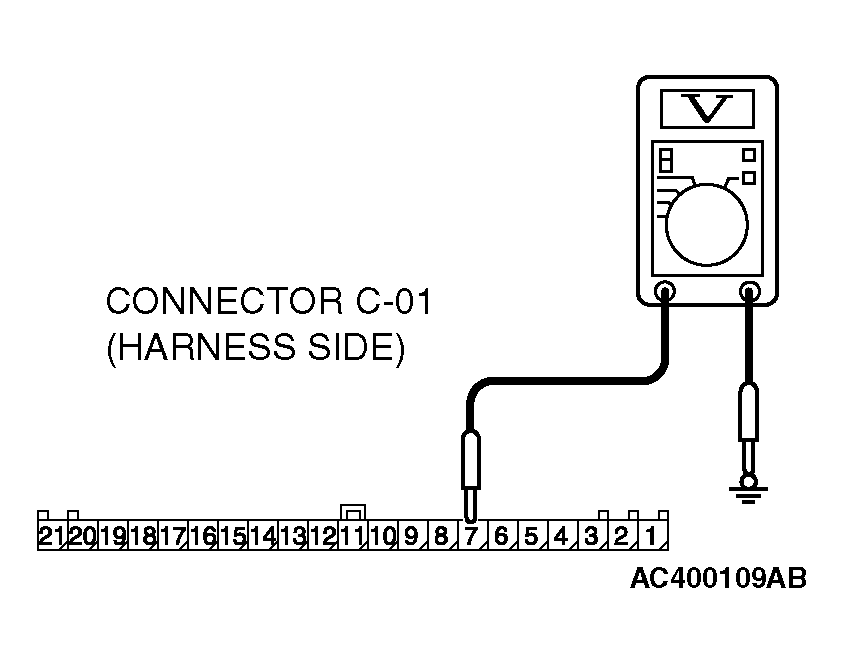

   Fig 2: Measuring Voltage Between Terminal 7 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Check combination meter connector C-01 for damage.

   Q: Is combination meter connector C-01 in good condition?

   YES  : Go to  Step 3.

   NO  : Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . Check to see that all meters operate.

   Fig 3: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Check the wiring harness between combination meter connector C-01 (terminal 7) and battery.
   Fig 4: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: Also check intermediate connector C-129 and joint connector (1) C-05. If intermediate connectors C-129 or joint connector (1) C-05 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

   Q: Are the wiring harness between combination meter connector C-01 (terminal 7) and battery in good condition?

   YES  : There is no action to be taken.

   NO  : Repair the wiring harness. Check to see that all meters operate.

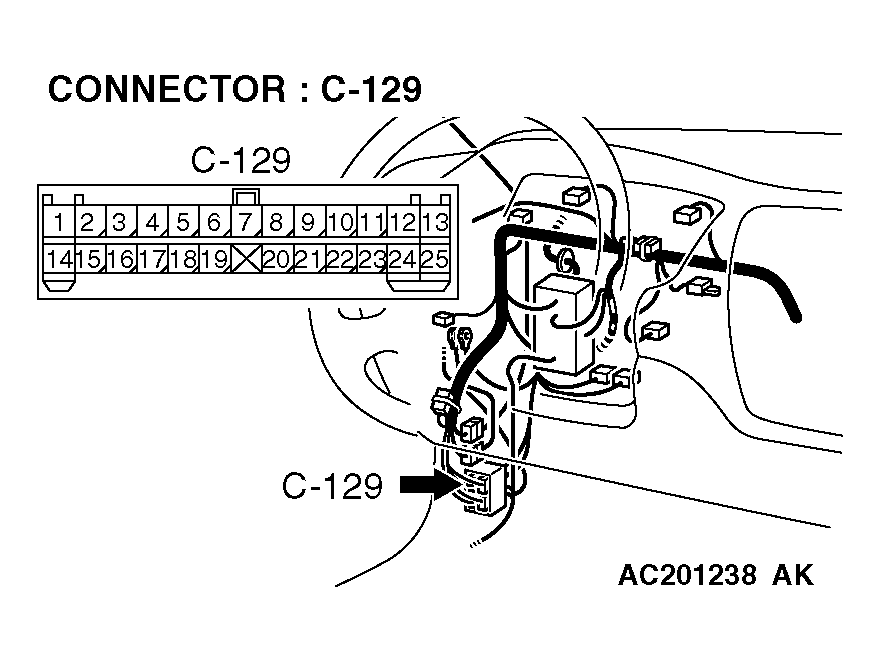

   Fig 5: Identifying Terminals Of Intermediate C-129 Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

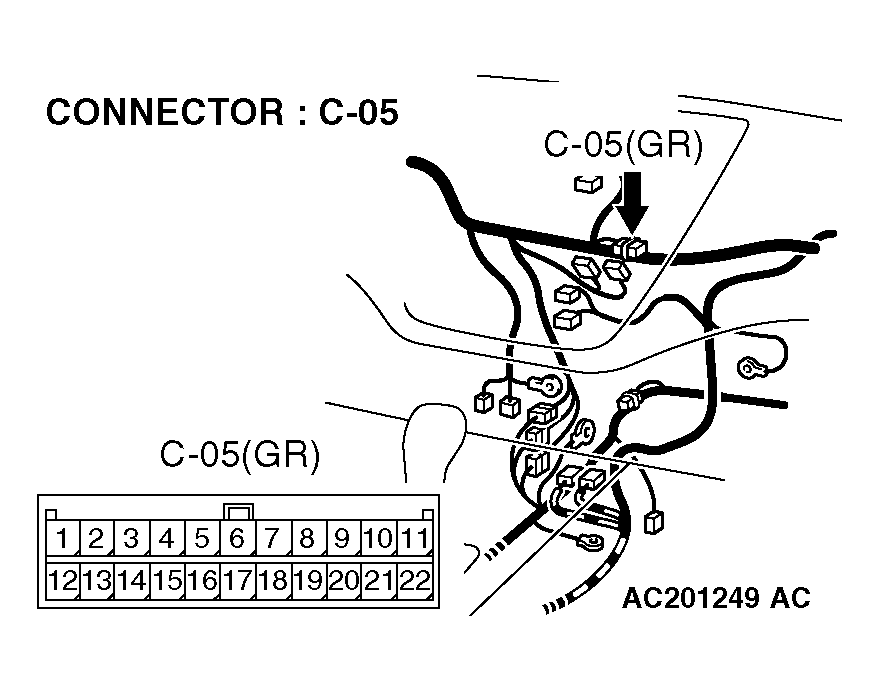

   Fig 6: Identifying Terminals Of C-05 Joint Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. STEP 4. Measure at combination meter connector C-01 in order to check the battery circuit of power supply system to the combination meter.
   1. Disconnect combination meter connector C-01, and measure at the wiring harness side.
   2. Turn the ignition switch to "ON" position.
      Fig 7: Identifying C-01 Connector Terminals

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   3. Measure the voltage between terminal 9 and ground.
      • The measured value should be approximately 12 volts (battery positive voltage).

   Q: Does the measured voltage correspond with this range?

   YES  : Go to  Step 7.

   NO  : Go to  Step 5.

   Fig 8: Measuring Voltage Between Terminal 9 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. STEP 5. Check combination meter connector C-01 for damage.

   Q: Is combination meter connector C-01 in good condition?

   YES  : Go to  Step 6.

   NO  : Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . Check to see that all meters operate.

   Fig 9: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. STEP 6. Check the wiring harness between combination meter connector C-01 (terminal 9) and ignition switch (IG1).
   Fig 10: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: Also check junction block connectors C-211, C-214 and joint connector (5) C-21. If junction block connectors C-211, C-214 or joint connector (5) C-21 are damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

   Q: Are the wiring harness between combination meter connector C-01 (terminal 9) and ignition switch (IG1) in good condition?

   YES  : There is no action to be taken.

   NO  : Repair the wiring harness. Check to see that all meters operate.

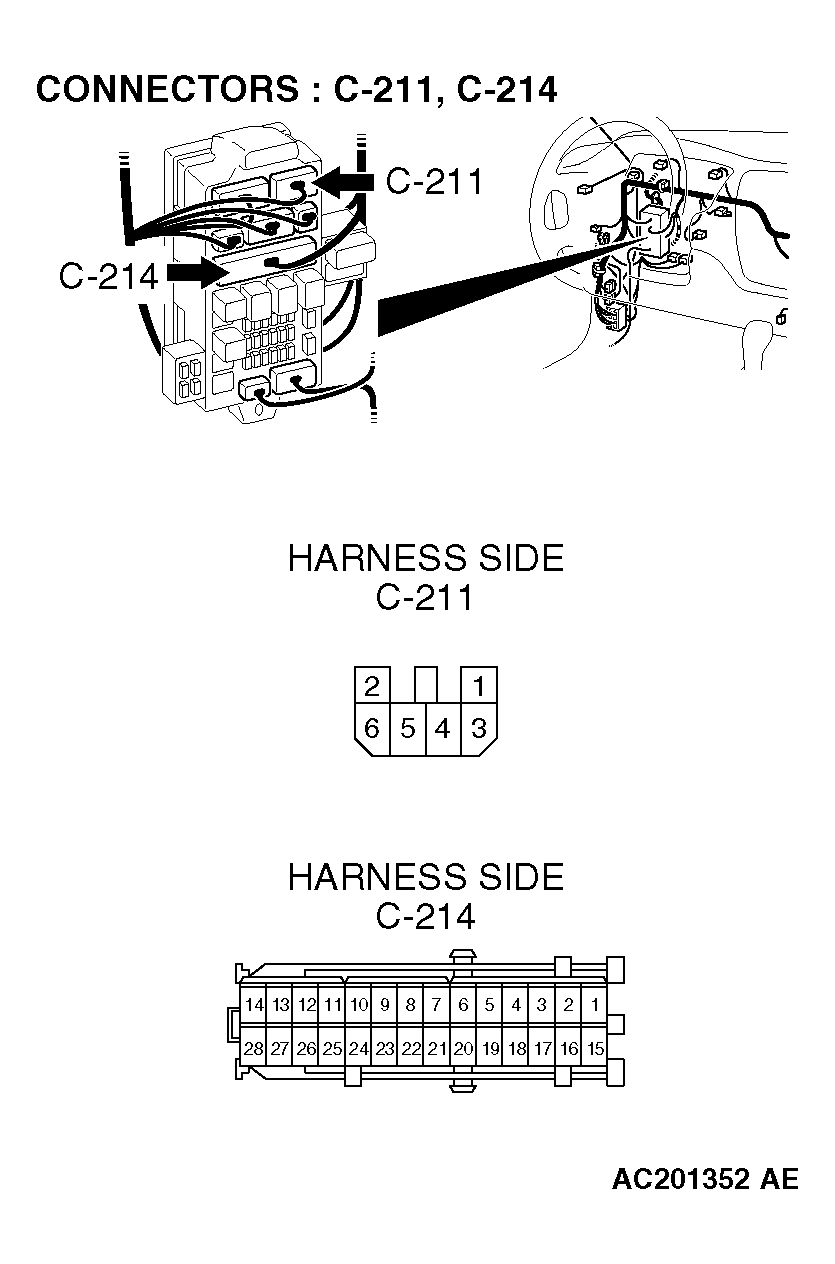

   Fig 11: Identifying Terminals Of C-211 And C-214 Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

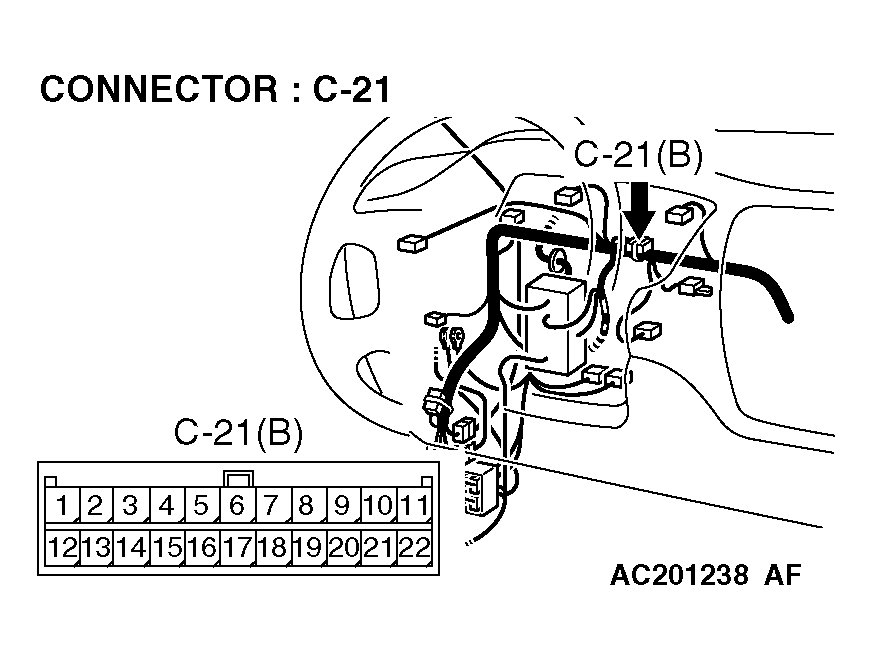

   Fig 12: Identifying Terminals Of C-21 Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. STEP 7. Measure at combination meter connector C-01 in order to check the ground circuit to the combination meter.
   1. Disconnect combination meter connector C-01, and measure at the wiring harness side.
      Fig 13: Identifying C-01 Connector Terminals

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   2. Measure the resistance between terminal 1 and ground.
      • The measured value should be 2 ohm or less.
   3. Measure the resistance between terminal 2 and ground.
      • The measured value should be 2 ohm or less.

   Q: Does the measured voltage correspond with this range?

   YES  : Repair the combination meter. Check to see that all meters operate.

   NO  : Go to  Step 8.

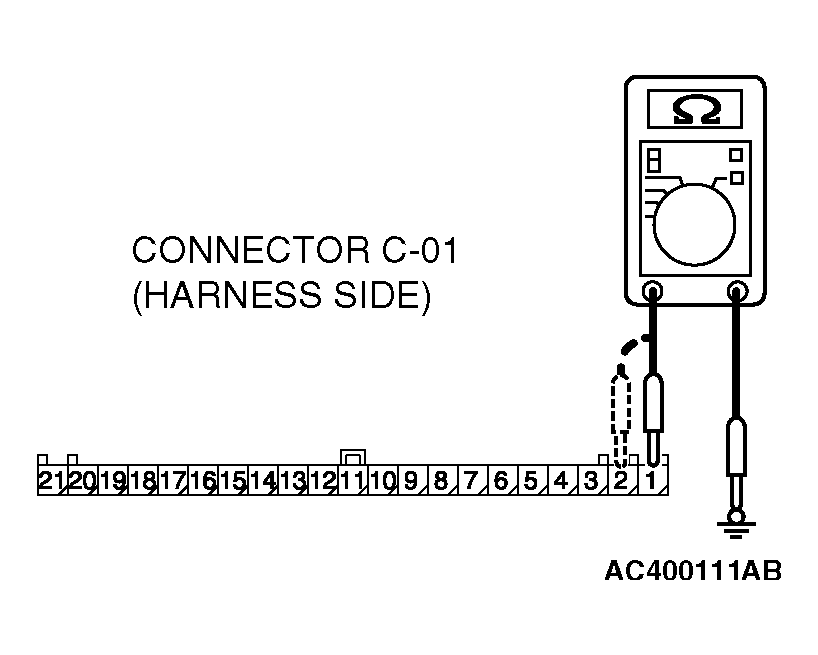

   Fig 14: Measuring Resistance Between Terminal 2 And Ground

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. STEP 8. Check combination meter connector C-01 for damage.

   Q: Is combination meter connector C-01 in good condition?

   YES  : Go to  Step 9.

   NO  : Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . Check to see that all meters operate.

   Fig 15: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. STEP 9. Check the wiring harness between combination meter connector C-01 (terminal 1 and 2) and ground.

   Q: Are the wiring harness between combination meter connector C-01 (terminal 1 and 2) and ground in good condition?

   YES  : There is no action to be taken.

   NO  : Repair the wiring harness. Check to see that all meters operate.

   Fig 16: Identifying C-01 Connector Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
