INSPECTION PROCEDURE 6: Combination meter does not work.: Notes

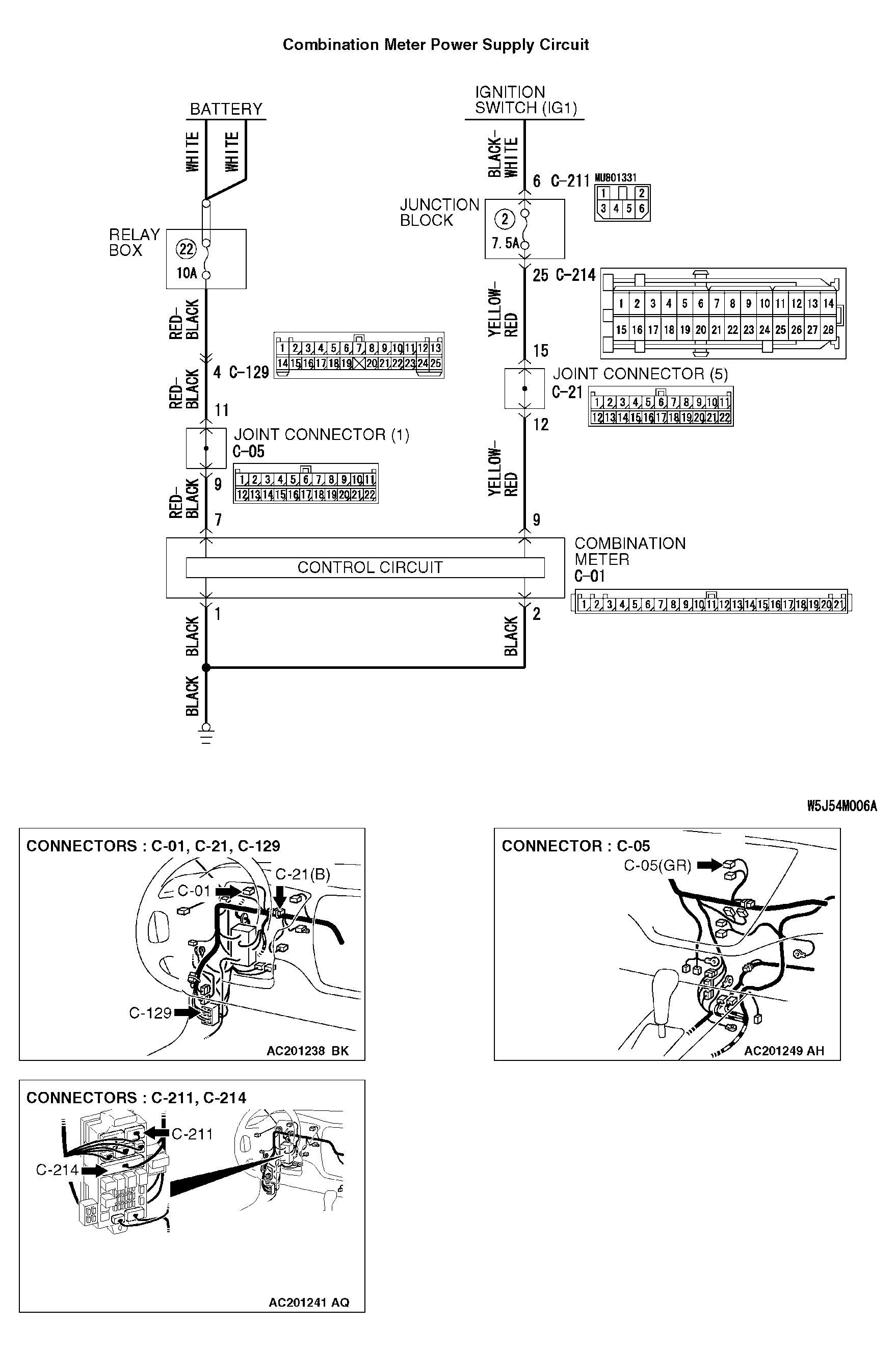

Fig 1: Combination Meter Power Supply - Circuit Diagram
G04278824Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
