>>A<< Dynamic Damper/Damper Band/TJ Boot Installation

1. Install the dynamic damper in the position shown in the illustration.
   REFERENCE CHART



   A (LH SIDE) mm (in)	B (RH SIDE) mm (in)
   230 +/- 3 (9.1 +/- 0.12)	415 +/- 3 (16.3 +/- 0.12)

   Fig 1: Measuring Dynamic Damper Height

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CAUTION:

   • There should be no grease adhered to the rubber part of the dynamic damper.
   • Be careful not to confuse the damper band with the TJ boot band (small). Locate the identification numbers stamped on the band levers.
   REFERENCE CHART



   ITEM	INDENTIFICATION NO.
   Damper band	8382
   TJ boot band	E687

2. Secure the damper bands.
3. Wrap plastic tape around the shaft spline, and then install the TJ boot band (small) and TJ boot.

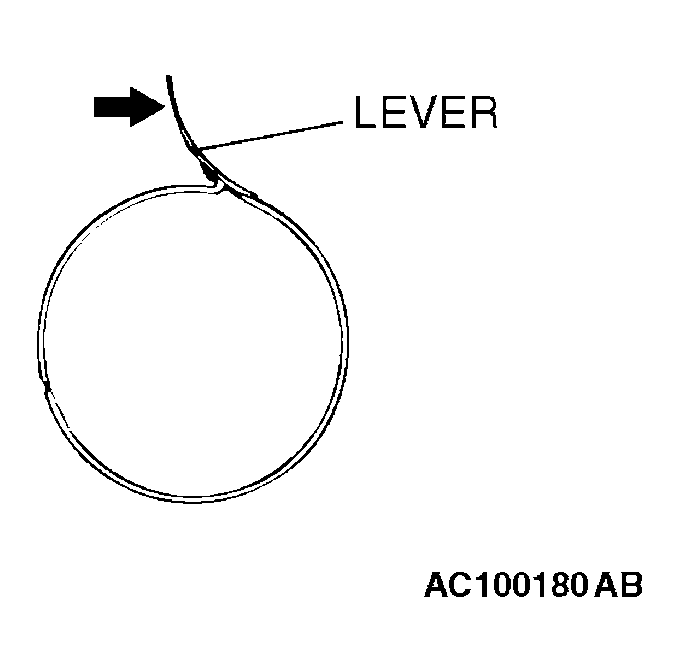

Fig 2: Identifying Lever

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
