Engine Control Module (M/T) Connector End View (C-121)

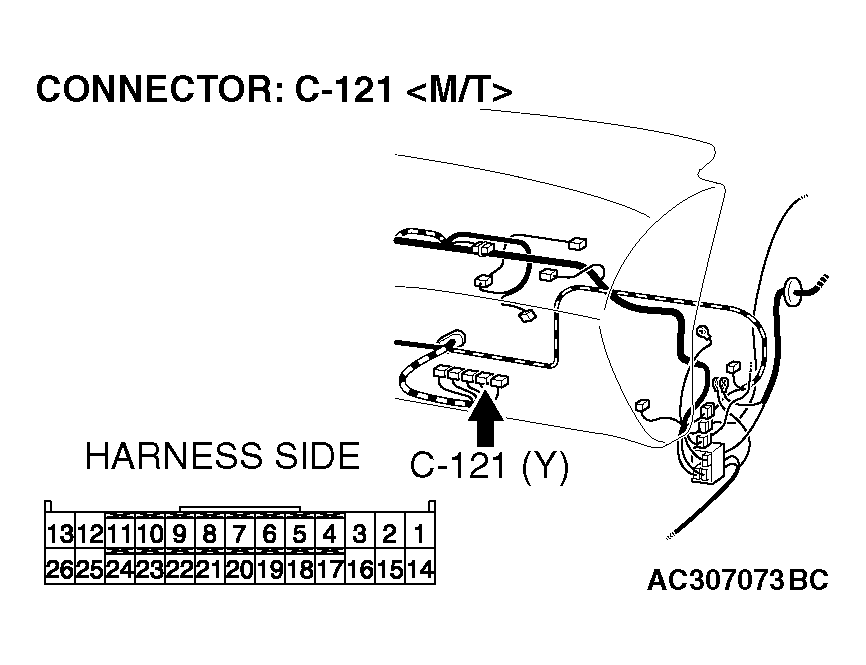

Fig 1: Engine Control Module (M/T) Connector End View (C-121)
G04280092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
