Fuel Pump Module Disassembly And Assembly: Notes

NOTE: For removal and installation, refer to On-vehicle service - FUEL PUMP MODULE REPLACEMENT  .

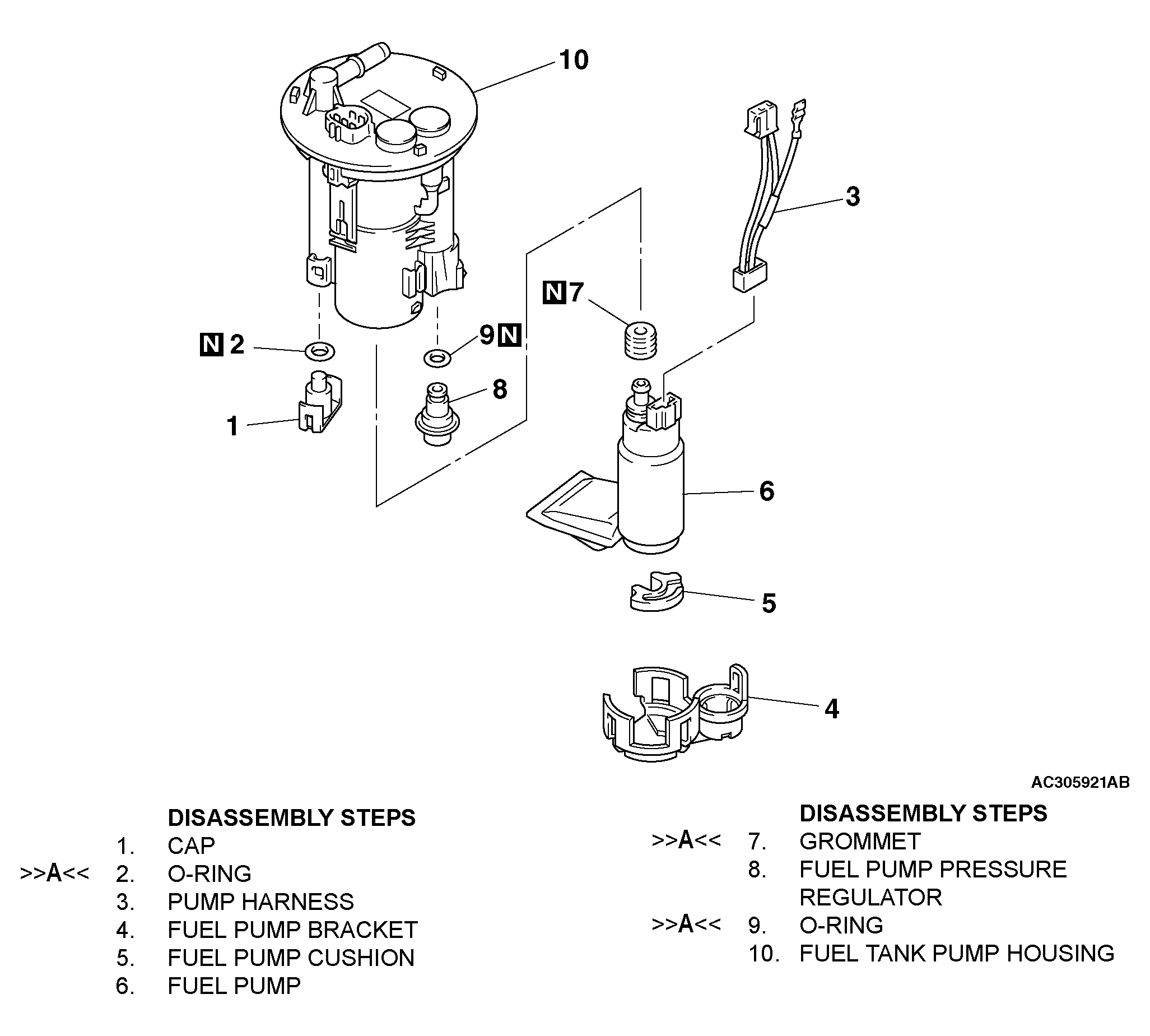

Fig 1: Disassembling/Assembling Of Fuel Pump Module
G04273369Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
