>>L<< Tab Washer/Tie Rod Installation

After installing the tie rod to the rack, fold tab washer end (two locations) to tie rod notch.

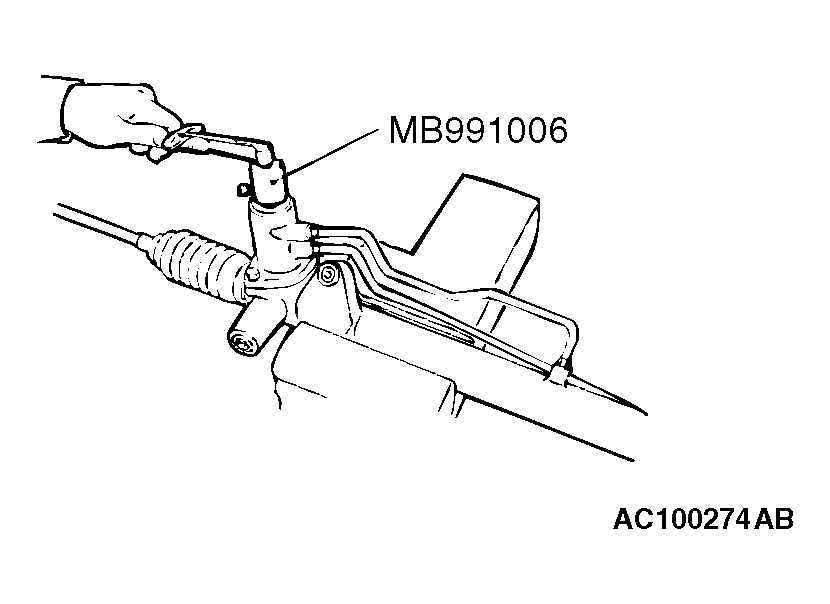

Fig 1: Measuring Total Pinion Torque
G04277862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

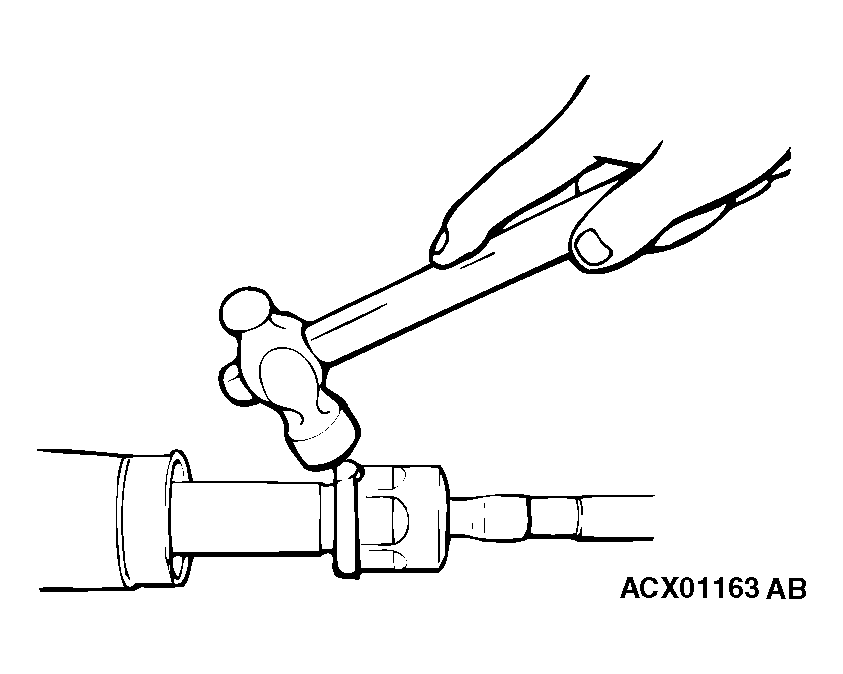

Fig 2: Tabbing Washer/Tie Rod
G04277863Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
