Removal And Installation: Notes

WARNING: Before removing the air bag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING . Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

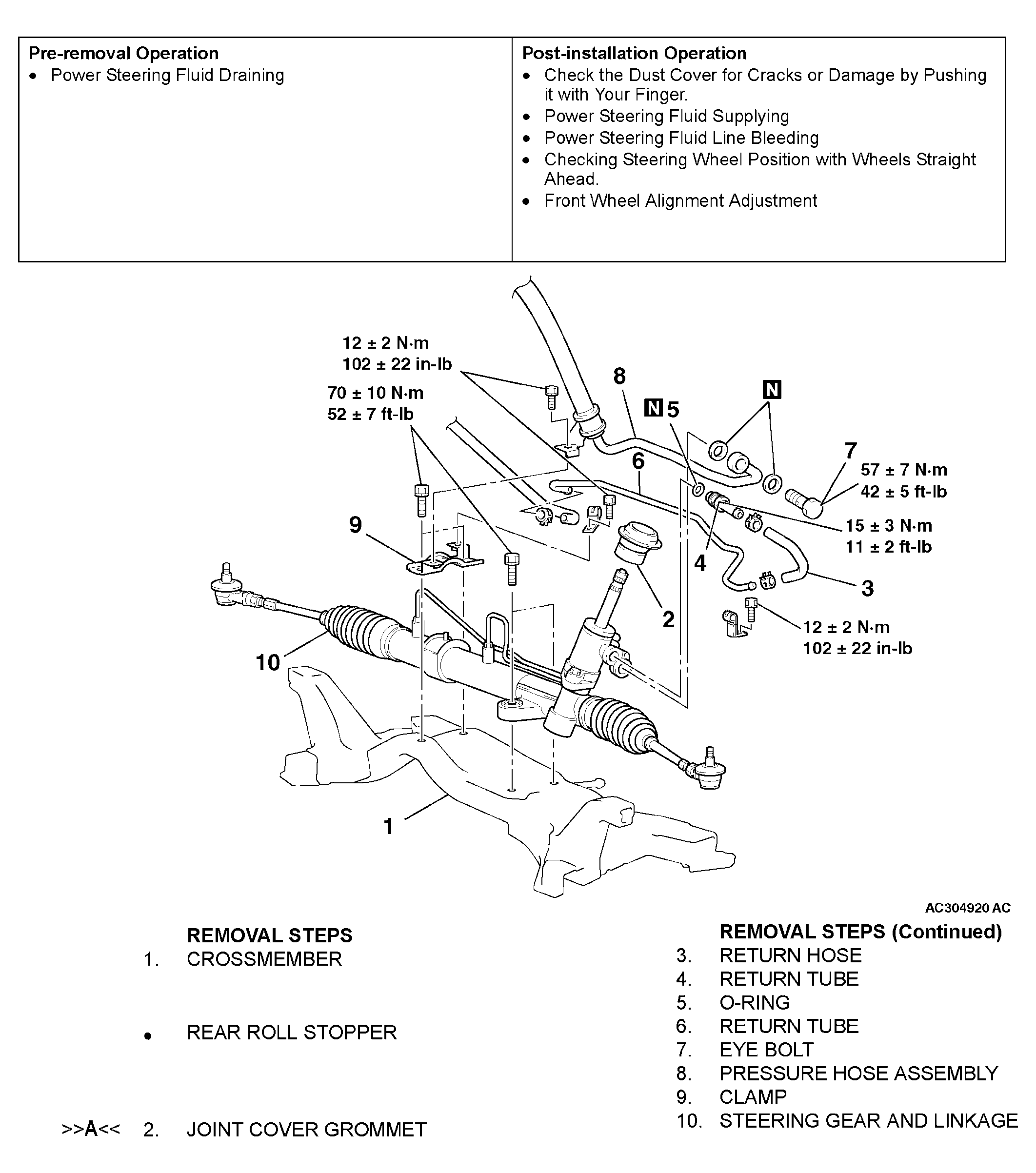

Fig 1: Removing /Installing Power Steering Gear Box And Linkage
G04277833Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
