>>A<< O-Ring Installation

O-RING REFERENCE

NO. ID x WIDTH mm (in)
1 15.8 x 2.4 (0.62 x 0.09)
2 21.0 x 1.9 (0.83 x 0.07)
3 14.8 x 2.4 (0.58 x 0.09)
4 3.8 x 1.9 (0.15 x 0.07)
5 14.8 x 1.9 (0.58 x 0.07)

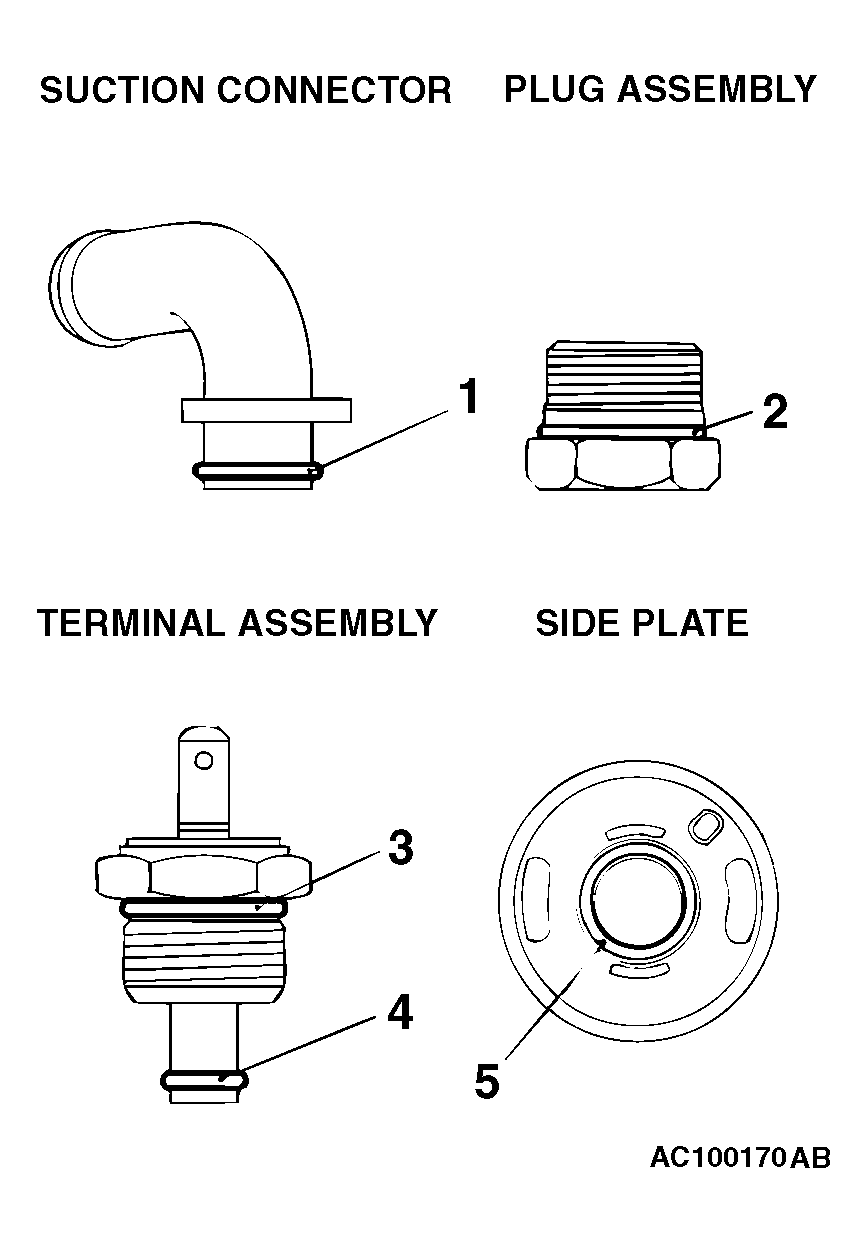

Fig 1: Identifying O-Ring
G04277876Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
