>>C<< Cam Ring Installation

CAUTION: Be sure to install the cam ring in the correct direction as shown.

Install the cam ring as shown in the illustration.

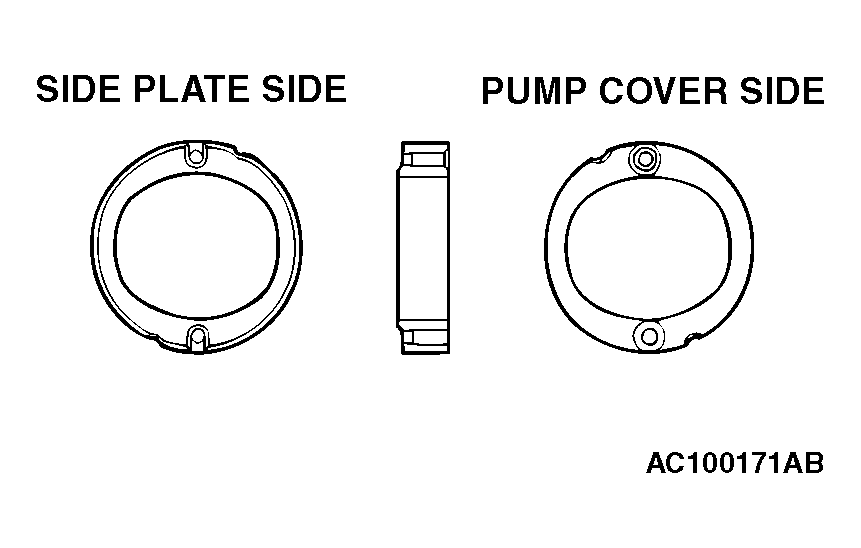

Fig 1: Installing Cam Ring
G04277878Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
