<< B >> Air Bag Module Assembly Removal

By sliding section A of the clock spring connector shown in the illustration in the arrow direction, disconnect the connector.

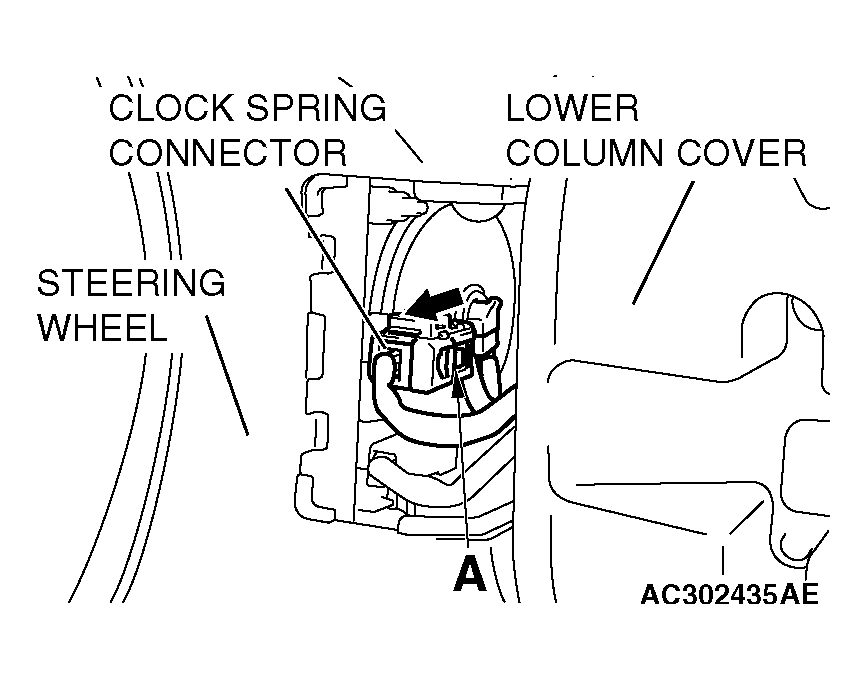

Fig 1: Removing Clock Spring Connector
G04277822Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
