Special Tools
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | SUPERSESSION | APPLICATION |
|---|---|---|---|

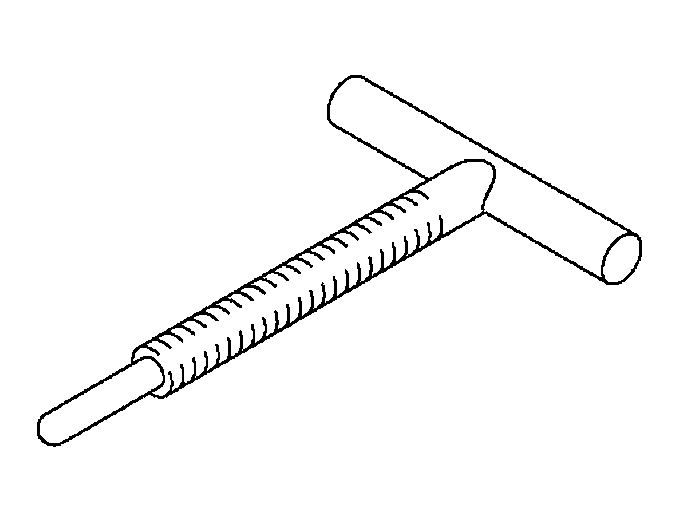

| MD998333 Oil pump remover | MD998333-01 | Removal of oil pump | |
| MD998903 Spring compressor | MD998903 | Removal and installation of one-way clutch inner race snap ring | |
| MD998924 Spring compressor retainer | MD998924-01 | Use with spring compressor | |

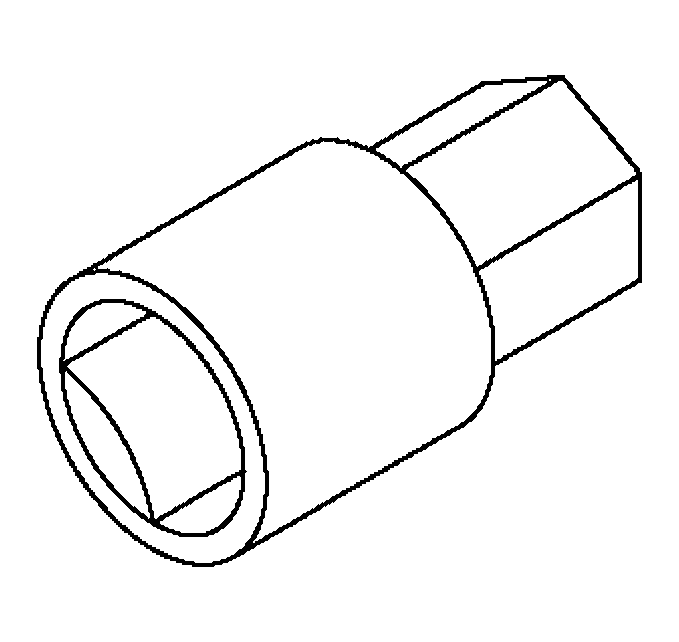

| MB991625 Socket (41) | MB991625-01 or General service tool | Removal and installation of output shaft jam nut | |
| MB990607 Torque wrench socket | MB990607-01 | Removal and installation of output shaft jam nut | |
| MD998412 Guide | MD998412 | Installation of oil pump and transfer drive gear | |

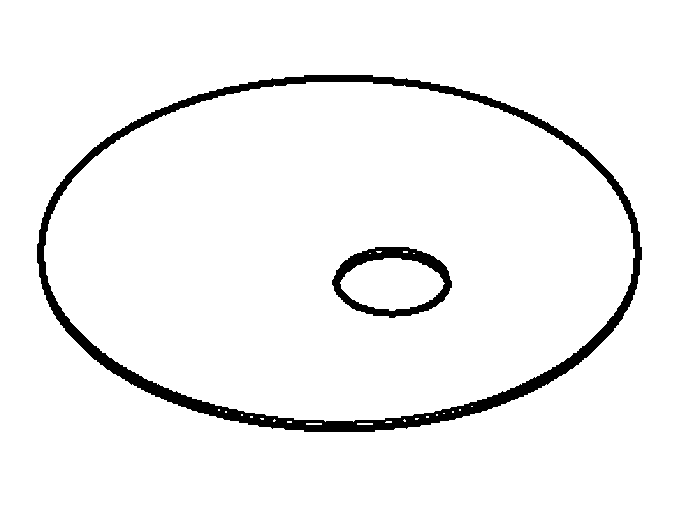

| MB991631 Clearance dummy plate | MB991631-01 | Measurement of reaction plate low-reverse brake and second brake end play | |
| MD998913 Dial gauge extension | MD998913-01 | Measurement of low-reverse brake end play | |

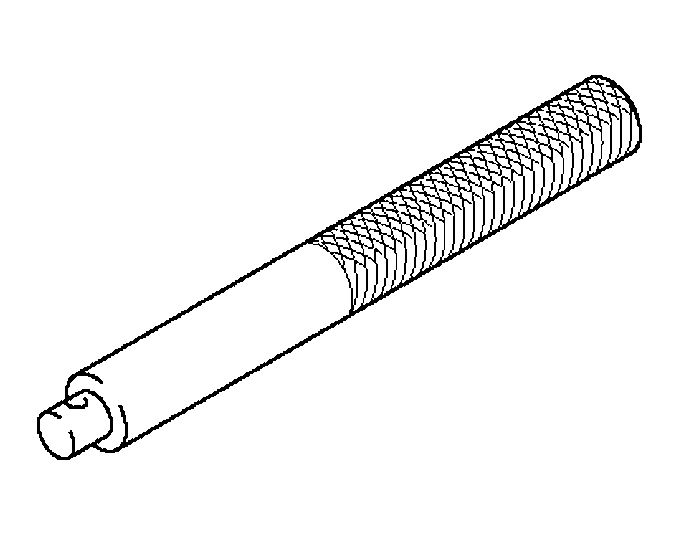

| MB990938 Handle | MB990938-01 |
|
|
| MB990930 Installer adapter | MB990930-01 or General service tool | Installation of output shaft taper roller bearing outer race | |
| MD998350 Bearing installer | MD998350-01 | Installation of output shaft collar and taper roller bearing | |
| MB990931 Installer adapter | MB990931-01 or General service tool | Installation of cap | |
| MB990935 Installer adapter | MB990935-01 or General service tool | Installation of differential taper roller bearing outer race | |
| MD998334 Oil seal installer | MD998334-01 | Installation of oil pump oil seal | |
| MD998907 Spring compressor | MD998907-01 | Removal and installation of underdrive clutch snap ring | |
| MB991628 Spring compressor | MB991628-01 | Measurement of underdrive clutch and overdrive clutch end play | |
| MD999590 Spring compressor | MIT305039 | Removal and installation of overdrive clutch snap ring | |
| MB991790 Spring compressor | MB991790-01 | Measurement of reverse clutch end play | |

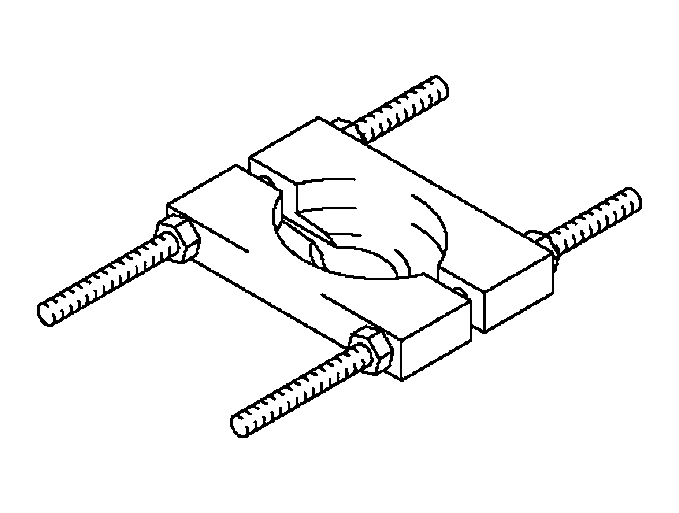

| MD998917 Bearing remover | General service tool or MD998348-01 | Removal of transfer driven gear | |
| MD998801 Bearing remover | MD998348-01 | Removal of each bearing | |
| MD998812 Installer cap | General service tool | Use with installer and installer adapter | |
| MD998814 Installer 200 | MIT304180 | Use with installer cap and installer adapter | |
| MD998823 Installer adapter (48) | General service tool | Installation of output shaft taper roller bearing, transfer driven gear and differential taper roller bearing | |
| MB990936 Installer adapter | MB990936-01 or General service tool | Installation of output shaft taper roller bearing outer race | |
| MD998813 Installer 100 | General service tool | Use with installer cap and installer adapter | |
| MD998800 Oil seal installer | General service tool | Installation of driveshaft oil seal |
