Input Signal Chart

INPUT SIGNAL CHART

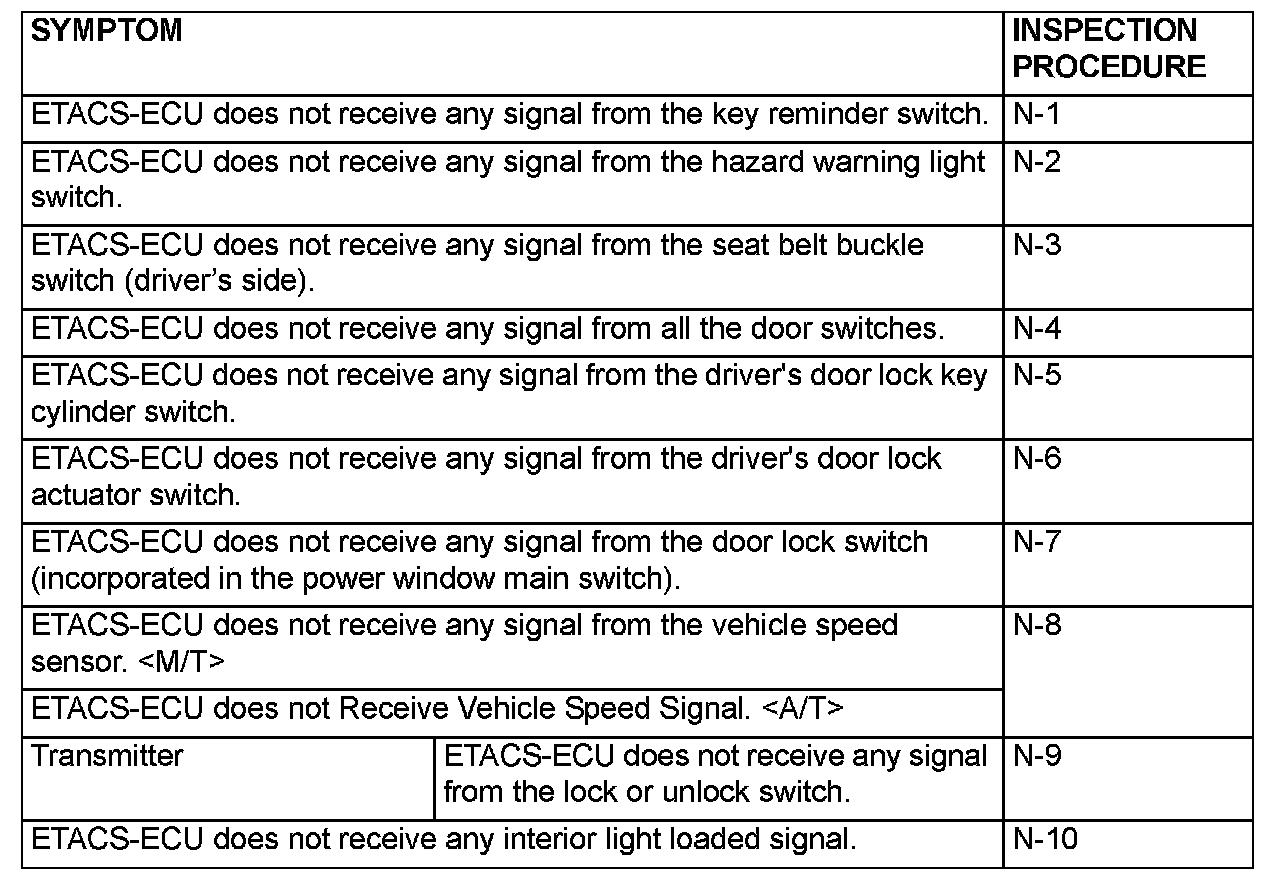

Input Signal Chart - SWS Monitor:




If a problem is found in the Service Data inspection, observe the table.

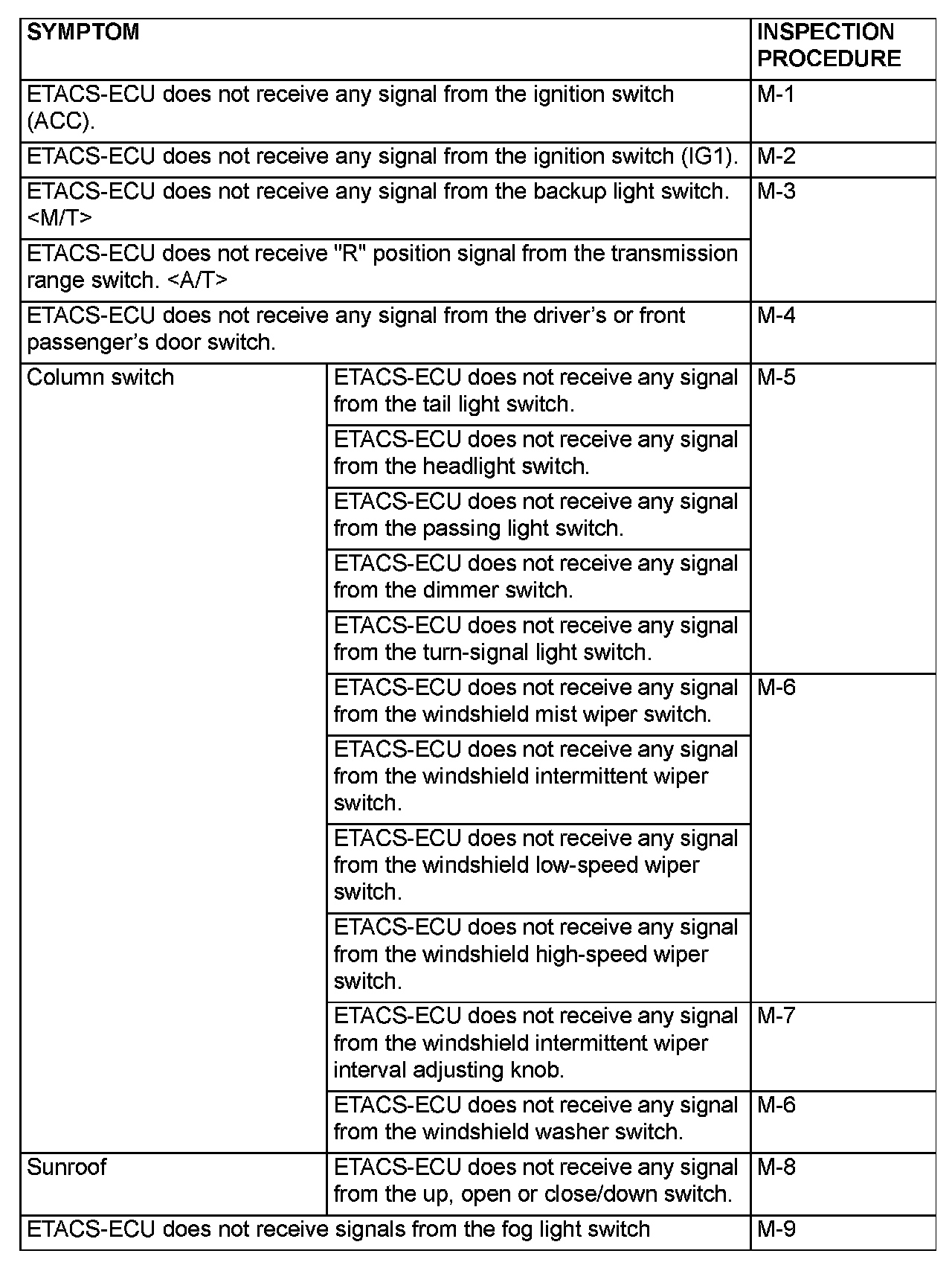

Input Signal Chart - Scan Tool Or Voltmeter:




If a problem is found in the Pulse Check, observe the table.
