Symptom Chart

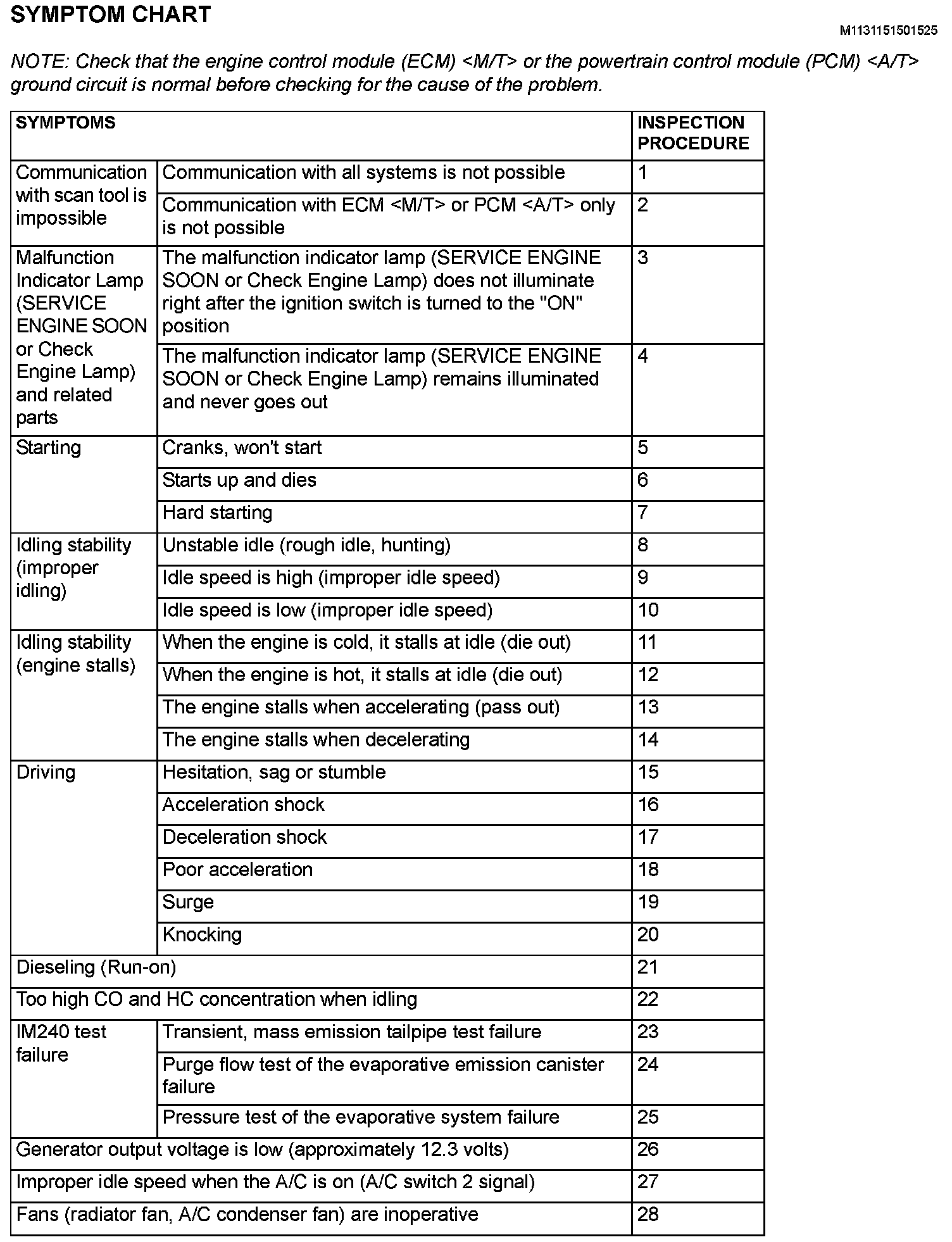

Inspection Chart For Trouble Symptoms Part 1:



Inspection Chart For Trouble Symptoms Part 2:
