Radiator Cooling Fan Control Module: Testing and Inspection

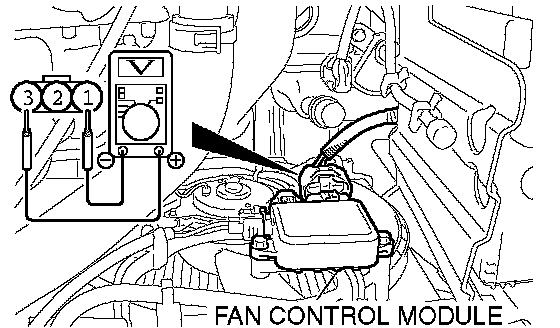

FAN CONTROL MODULE CHECK





1. Remove the fan control module connector.
2. Turn the ignition switch to the ON position, and measure the voltage between the harness-side connector terminals.
Standard value: Battery positive voltage





3. Connect the fan control module connector, and disconnect the condenser fan motor connector.
4. Ensure that the A/C switch is off, and start the engine and run it at idle.

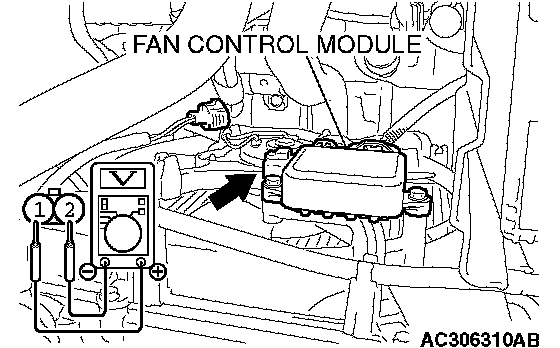

5. Measure the voltage between the fan control module-side connector terminals.
Standard value: 1V or less
6. Turn the A/C switch to the ON position.

WARNING: Stay clear of the fan when the fan starts running.

7. Measure the voltage between the fan control module-side connector terminals while the fan is running. The voltage should repeat the values 1) and 2) below.
Standard value:
1) 8.2 ± 2.6 V
2) Battery positive voltage ± 2.6 V
8. If the voltage does not repeatedly change as indicated, replace the fan control module.

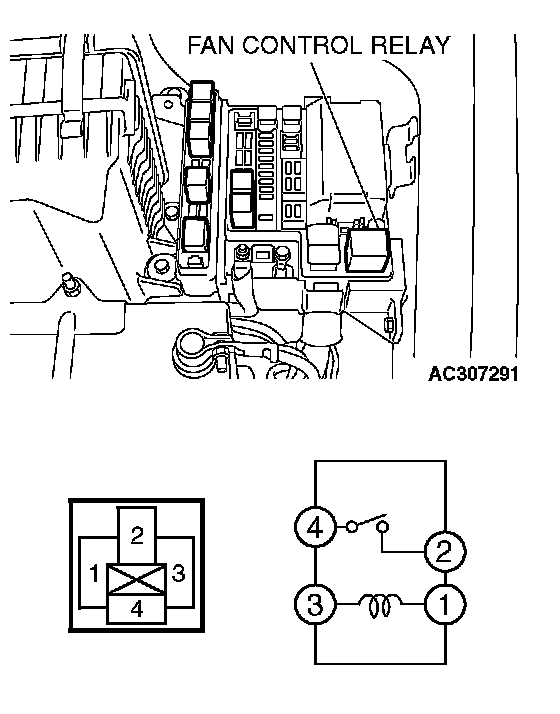

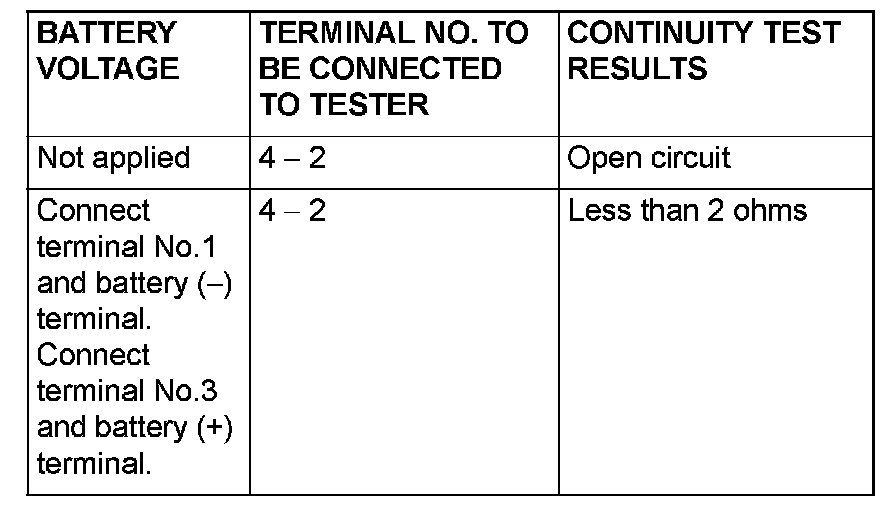

FAN CONTROL RELAY CONTINUITY CHECK
