Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04277979

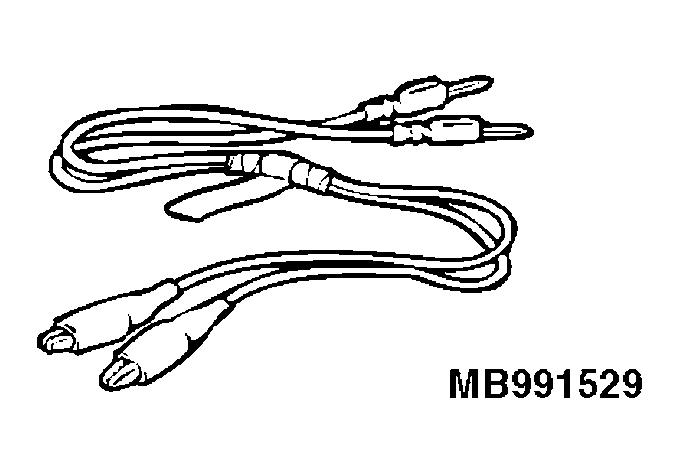

 MB991529 Diagnostic trouble code check harness Tool not necessary if scan tool (MUT-III) is available
  • For registration of secret code
  • For setting of hazard answerback function
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
G04277980G04277981G04277982G04277983G04277984G04277985G04277986
 MB991958

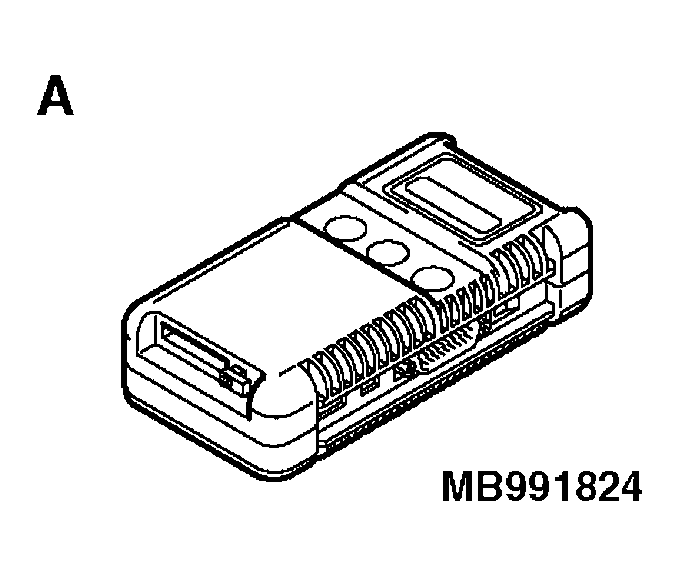

  1. : MB991824

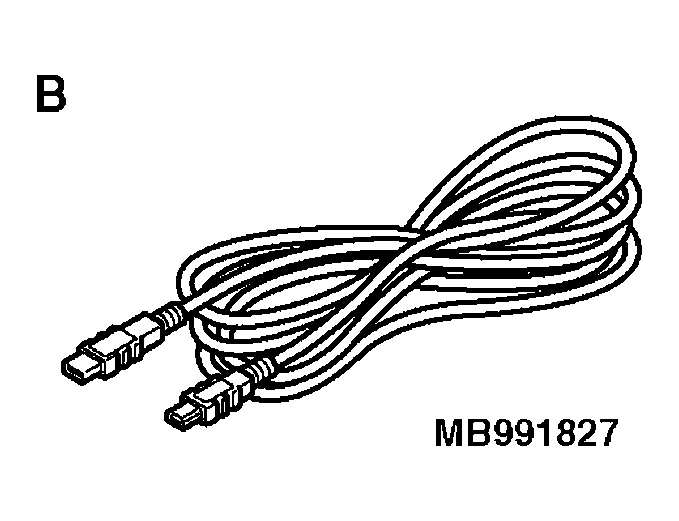

  2. : MB991827

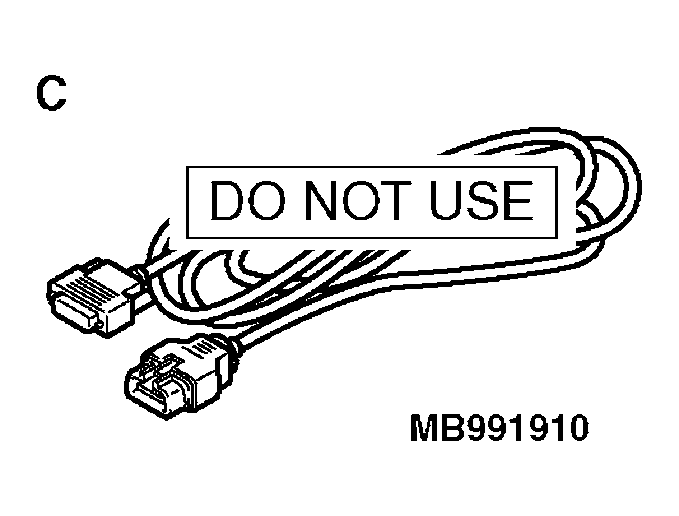

  3. : MB991910

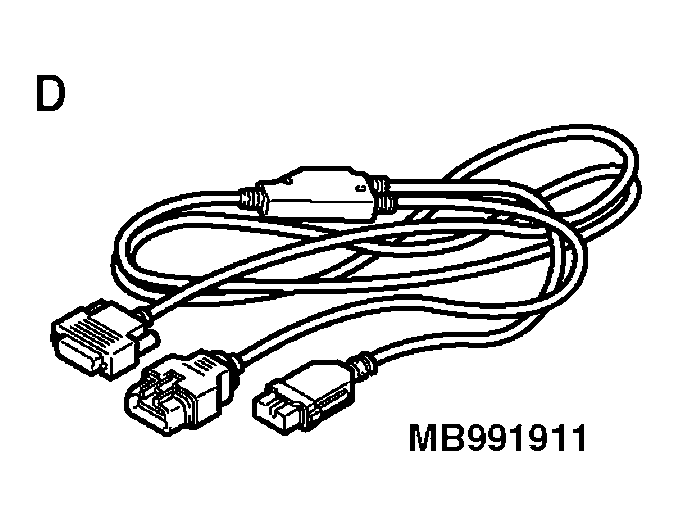

  4. : MB991911

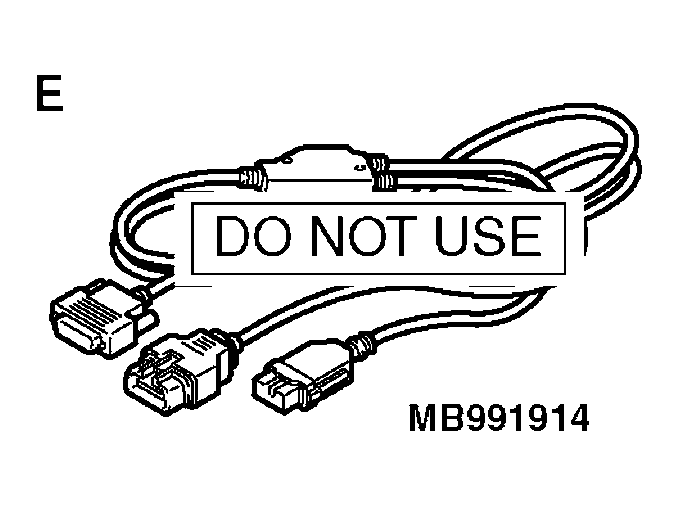

  5. : MB991914

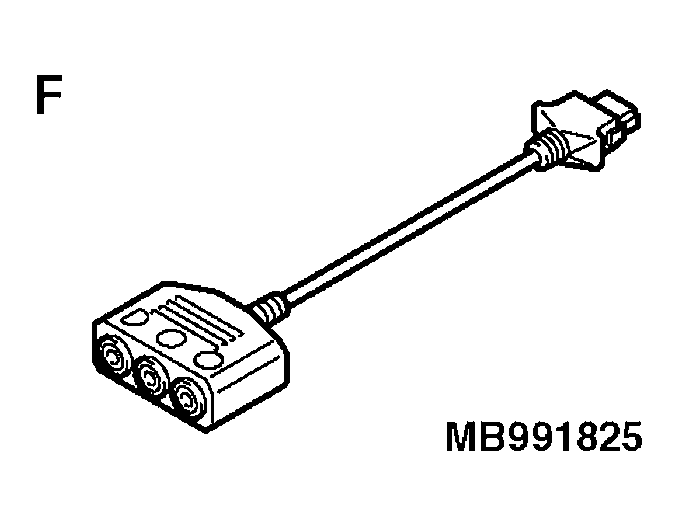

  6. : MB991825

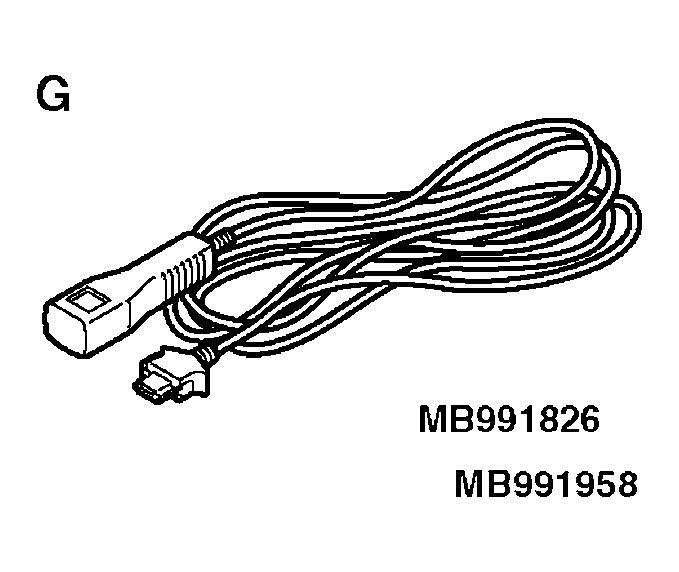

  7. : MB991826

MUT-III sub assembly
  1. : Vehicle communication interface (V.C.I.)
  2. : MUT-III USB cable
  3. : MUT-III main harness A (Vehicles with CAN communication system)
  4. : MUT-III main harness B (Vehicles without CAN communication system)
  5. : MUT-III main harness C (for Daimler Chrysler models only)
  6. : MUT-III measurement adapter
  7. : MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 SWS communication line check (ECU check and service data)
CAUTION: MUT-III main harness B (MB991911) should be used. MUT-III main harness A and C should not be used for this vehicle.
