Engine Oil Replacement

Required Special Tools:

MB991396:Oil filter wrench

MB991610:Oil filter wrench

MB991828:Oil filter wrench

1. Start the engine and allow it to warm up until the temperature of the coolant reaches 80 - 90°C (176 - 194°F).
   WARNING: Use care as oil could be hot.
2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.
4. Install a new drain plug gasket so that it faces in the direction shown in the illustration, and then tighten the drain plug to the specified torque.

   Tightening torque: 39 +/- 5 N.m (29 +/- 4 3 ft-lb)

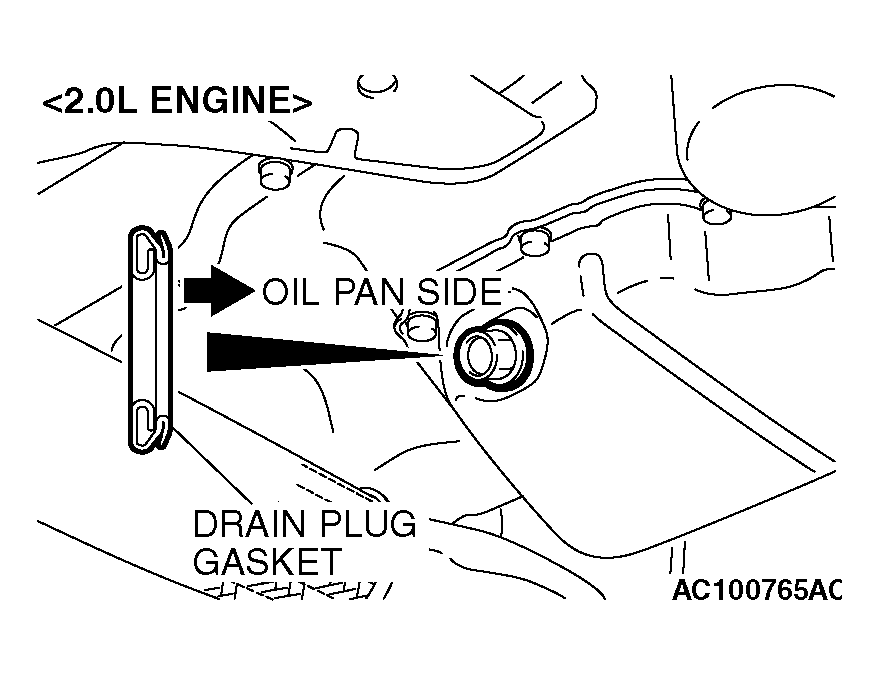

   Fig 1: Identifying Installation Direction For Drain Plug Gasket In 2.0L Engine

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

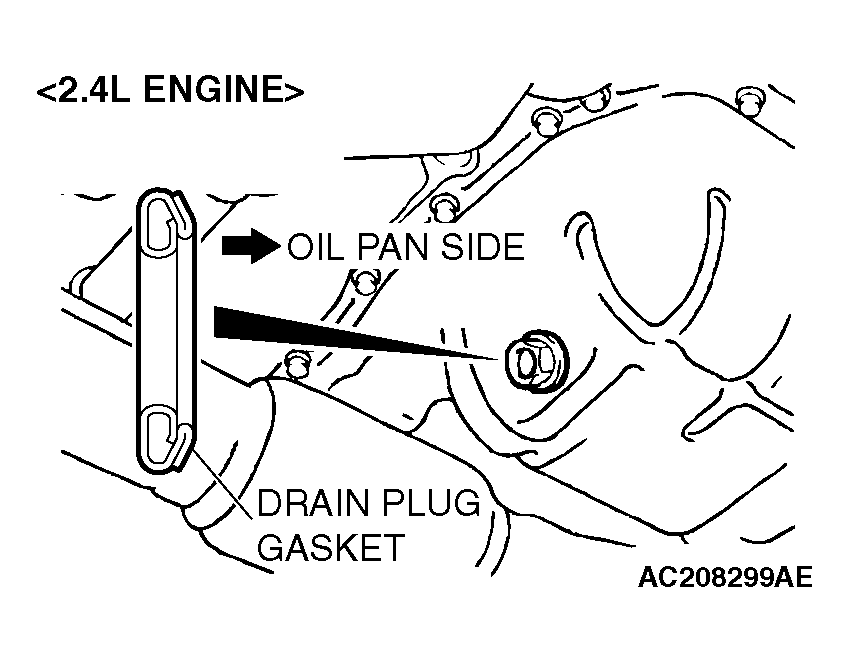

   Fig 2: Identifying Installation Direction For Drain Plug Gasket In 2.4L Engine

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Refill the specified quantity of oil.

   Specified Engine Oil: Engine oils displaying ILSAC certification symbol ("Starburst" symbol) or conforming the API classification SL, SL/CF

   Total quantity:

   <2.0L Engine > 3.8 dm ³  (4.0 quarts)

   <2.4L Engine > 4.3 dm ³  (4.5 quarts)

   NOTE: SAE 5W-20, SAE 5W-30 and SAE 10W-30 engine oil can be used in outdoor temperatures ranging from -18 to 38 °C (0 to 100 °F). However, for optimum fuel economy and cold starting, select the low SAE viscosity grade oil for the expected temperature range. SAE 5W-20 or SAE 5W-30 engine oil is recommended.
6. Install the engine oil filler cap.
7. Check oil level.

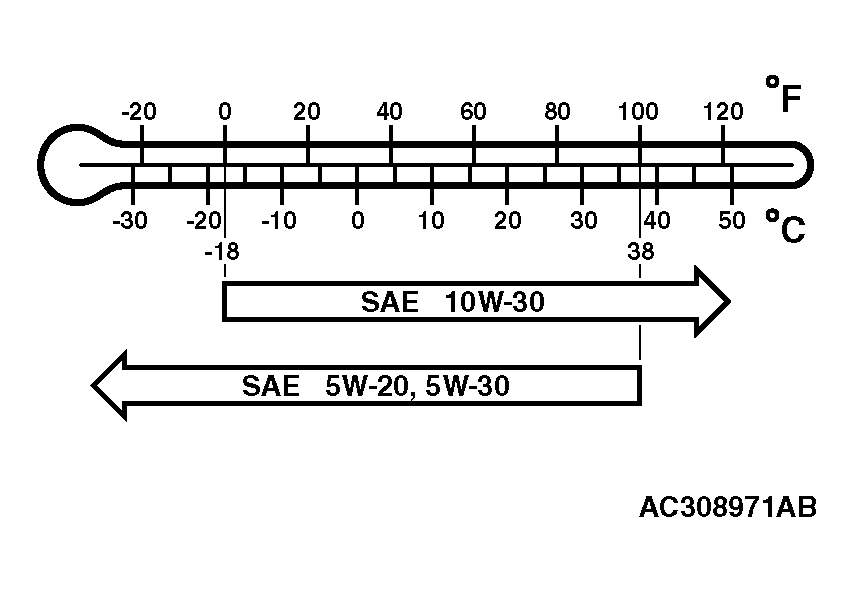

   Fig 3: Identifying Engine Oil Temperatue Ranges

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
