>>D<< Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the snap ring into the groove of clutch retainer.
  2. Set special tools MB991628 and MD998924 as shown in the illustration, and then compress the clutch element.
  3. Check that the clearance between the snap ring and the clutch reaction plate is within the standard value. If not within the standard value, select a snap ring so that it is.

    Standard value: 1.60 - 1.80 mm (0.0630 - 0.0709 inch)

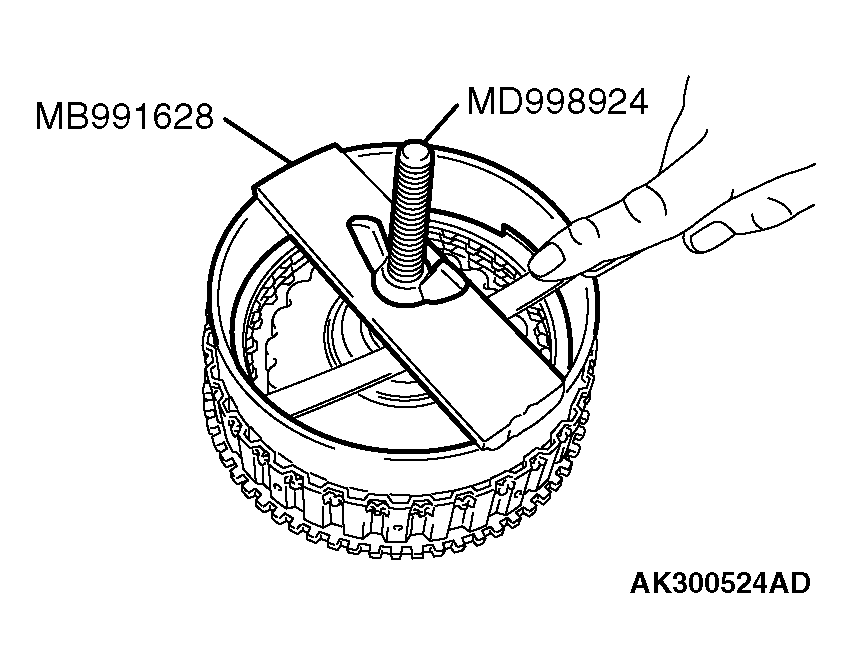

    Fig 1: Compressing Clutch Element
    G04277324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
