A << Battery Installation

Install a new battery with the positive side facing toward the lower cover.

Replacement battery: Coin-type lithium battery CR2032

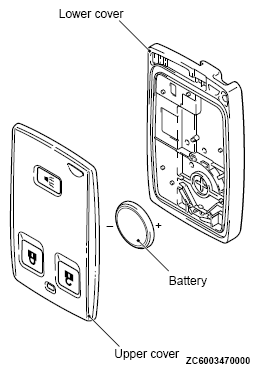

Fig 1: Identifying Battery, Lower Cover And Upper Cover
G04872550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
