DTC U1515: Bus error (LIN): Notes

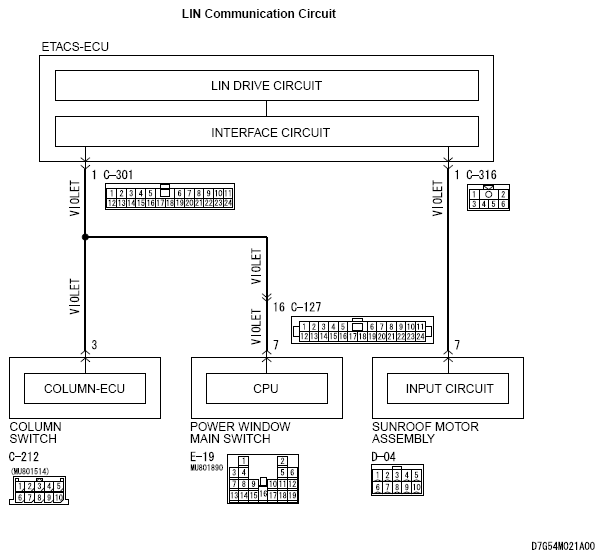

Fig 1: LIN Communication Circuit Diagram (1 Of 2)

G04874163

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
