A << O-Ring Installation

RING SPECIFICATION

NO. ID x WIDTH mm (in)
1 15.8 x 2.4 (0.62 x 0.09)
2 14.8 x 1.9 (0.58 x 0.07)
3 21.0 x 1.9 (0.83 x 0.07)

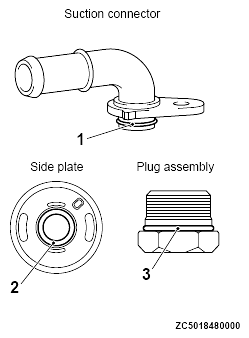

Fig 1: Identifying Width Of Side Plug, Plug Assembly And Suction Connector
G04872182Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
