Removal And Installation

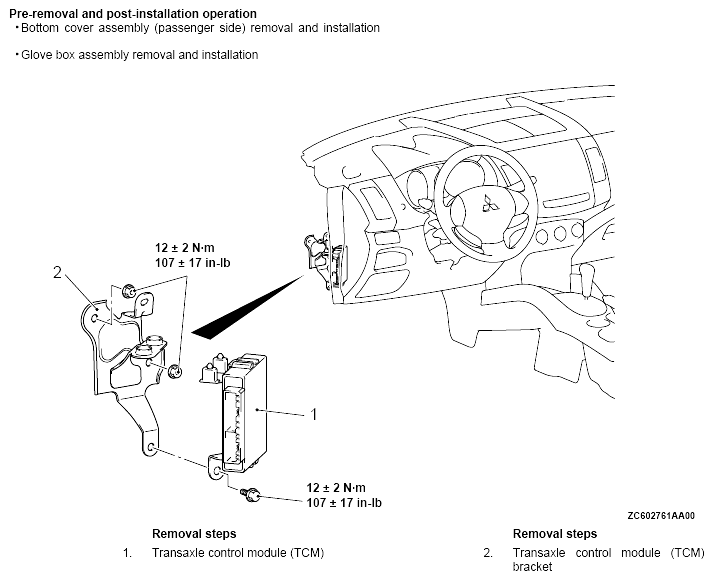

Fig 1: Removal / Installation Of Transaxle Control Module Replacement Components With Torque Specifications
G04871172Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
